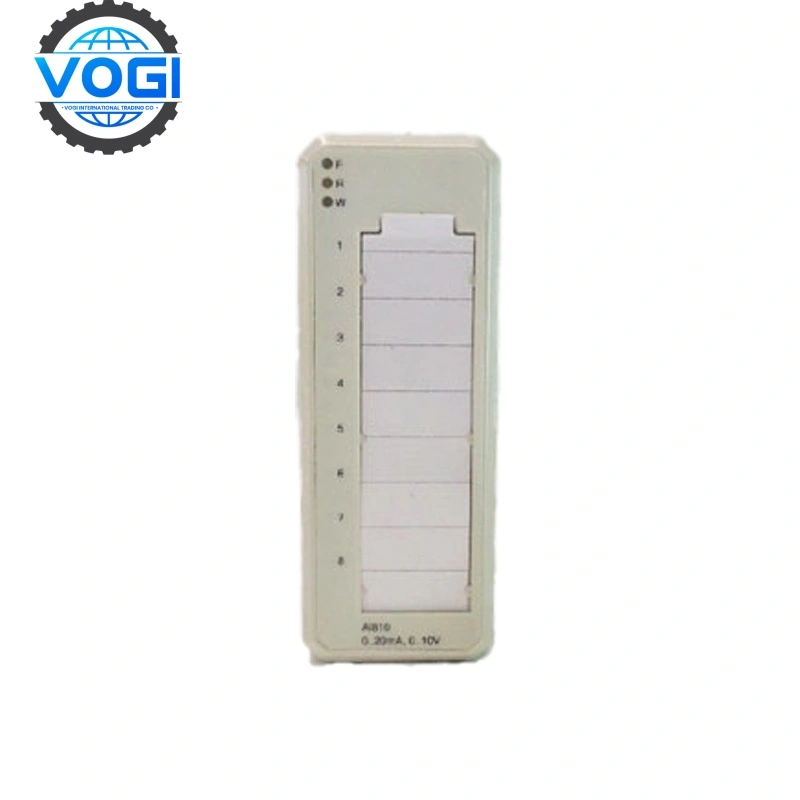

ABB AI810 3BSE008516R1 Analog Input Module

Brand	ABB
Module Number	AI810
Ordering Number	3BSE008516R1
Price	$300
Country Of Origin	Sweden
Weight	0.5KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB AI810Technical specifications

Resolution:12 bit

Input impedance:290 kΩ (voltage input)

230 - 275 kΩ (current input)

Isolation:Groupwise isolated from ground

Under/over range:-5% / +15%

Error:Max. 0.1%

Temperature drift

Voltage: Typ. 70 ppm/°C Max. 100 ppm/°C; Current: Typ. 50 ppm/°C Max. 80ppm/°C

Input filter (rise time 0-90%):140 ms

Update cycle time:8 ms

Current limiting:Transmitter power can be current limited by the MTU

Maximum field cable length:600 meters (656 yards)

Max input voltage (non destructive):30 V d.c.

NMRR, 50Hz, 60Hz:> 40 dB

Rated insulation voltage:50 V

Dielectric test voltage:500 V a.c.

Power dissipation:1.5 W

Current consumption +5 V Modulebus:70 mA

Current consumption +24 V Modulebus:40 mA

Current consumption +24 V external:0

Purpose:ABB AI810 is an analog input module, belonging to ABB Advant OCS or AC 800M series, designed for signal acquisition and monitoring of industrial process control systems. Its core function is to convert the analog signal of the field sensor into a digital signal for processing by the control system.

Application:Process industry: Real-time data collection in petrochemical, pharmaceutical, and power industries. Water treatment and environmental protection: Water quality monitoring, pump station pressure monitoring. Energy management: Power plant boiler temperature, steam flow signal collection. Discrete manufacturing: Production line sensor signal integration.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB AI810Key features

High-precision signal processing: ABB AI810 supports high accuracy of ±0.05% F.S., adapting to precision measurement needs.

Anti-interference design: ABB AI810 built-in signal filtering and isolation technology to suppress electromagnetic noise.

Modularity and flexibility: 8-channel input, each channel independently configures the signal type, supports HART protocol, and is compatible with smart transmitter diagnosis.

Reliability and compatibility: wide operating temperature range, passedIEC 61131-2 industrial environment certification. Seamless integration of ABB 800xA or AC 800M control systems, supports redundant configuration.

Diagnosis and maintenance: channel-level fault alarm, LED status indication.
