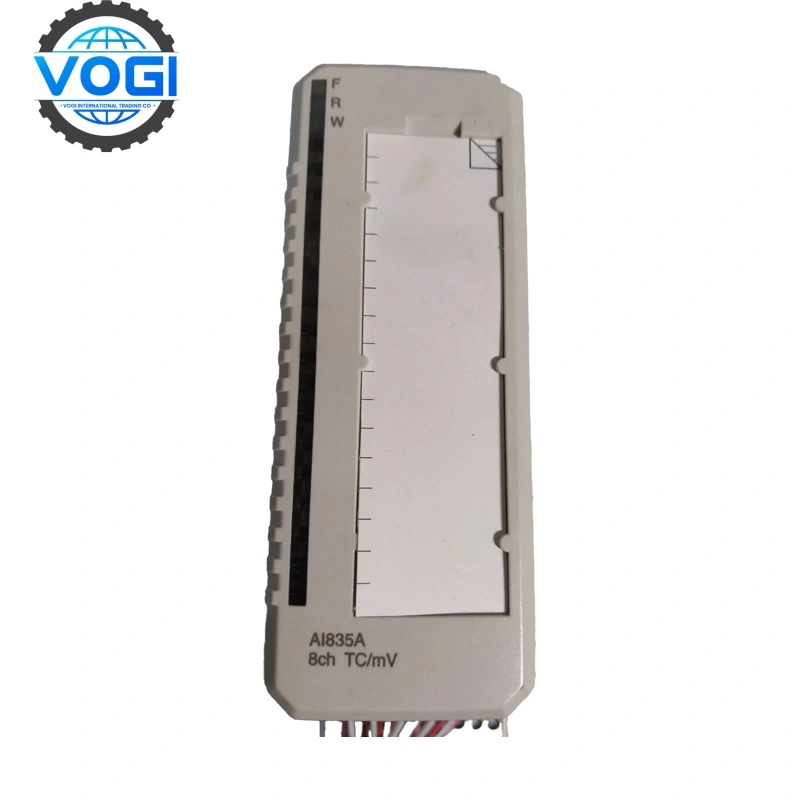

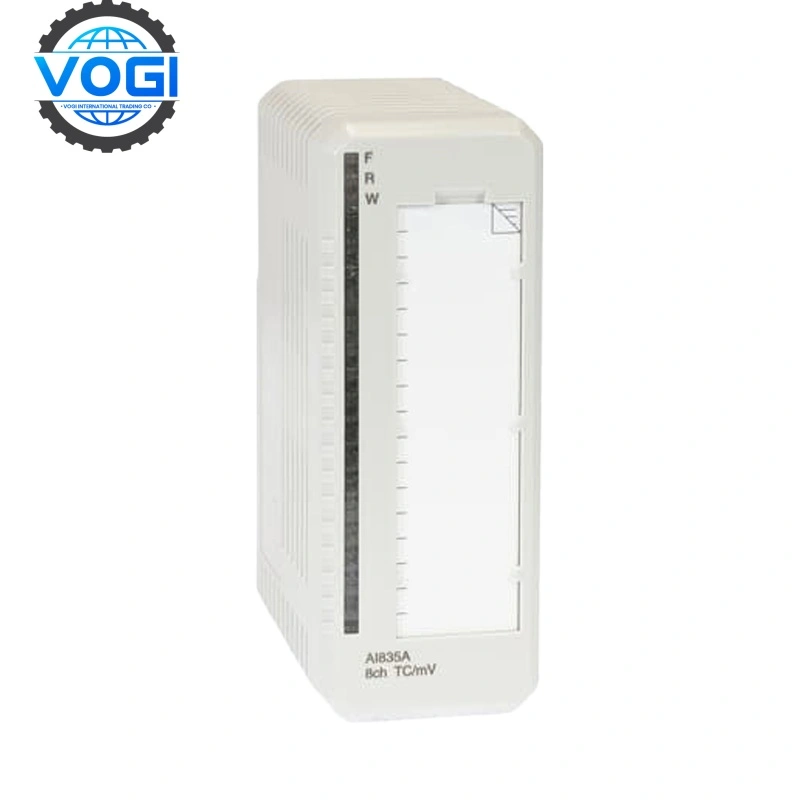

ABB AI835A 3BSE051306R1 Analog Input

Brand ABB
Module Number AI810
Ordering Number 3BSE008516R1
Price $500
Country Of Origin Sweden
Weight 0.5KG
Certificate C/O from the Chamber of Commerce
C/Q from the Manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

ABB AI835A Technical specifications​

Type：Analog Input

Signal specification：-30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U

Number of channels：8

Signal type：See table in S800 Modules and Termination Units,3BSE020924

HART：No

SOE：No

Mechanics：S800

Resolution：15 bits

Input impedance：> 1 MΩ

Isolation：Groupwise isolated from ground

Error：Max. 0.1%

Temperature drift：Typ. 5 ppm/°C, Max. 7 ppm/°C

Update cycle time：280 + 80 * (number of active channels) ms at 50 Hz; 250 + 70 * (number of active channels) ms at 60 Hz

Maximum field cable length：600 meters (656 yards)

CMRR, 50Hz, 60Hz：120 dB

NMRR, 50Hz, 60Hz：> 60 dB

Rated insulation voltage：50 V

Dielectric test voltage：500 V a.c.

Power dissipation：1.6 W

Current consumption +5 V Modulebus：75 mA

Current consumption +24 V Modulebus：50 mA

Current consumption +24 V external:0

Application:Process industry: Chemical reactor temperature control, refinery flow control valve drive.Energy management: Power plant steam pressure regulation, grid voltage control.Discrete manufacturing: Production line speed control, robot motion trajectory feedback.Environmental protection and water treatment: Dosing pump flow control, aerator speed regulation.

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB AI835A 2

ABB AI835A Key features​

Strong anti-interference ability: Channel isolation, suppressing ground loop interference and electromagnetic noise.

Easy diagnosis and maintenance: Channel-level fault alarm, LED status indication. ABB AI835A Supports hot swapping of modules, no need to shut down for maintenance.

Integration with ABB control ecosystem: Seamlessly connect to ABB AC 800M​ controller or 800xA DCS, and configure output parameters through Control Builder software.

Redundancy and high availability: ABB AI835A Supports dual module redundant configuration, applied to key process control scenarios such as refineries and nuclear power plants.

Typical cooperation cases

Bayer Leverkusen Plant in Germany: Reactor temperature PID control, HART protocol to optimize valve response.

Chevron Pascagoula Refinery in the United States: Crude oil distillation tower pressure regulation, Profibus DP access to DCS.

Saudi Aramco Haradh Gas Field: Natural gas compressor speed control, -40°C low temperature reliable operation.

ABB AI835A 1
