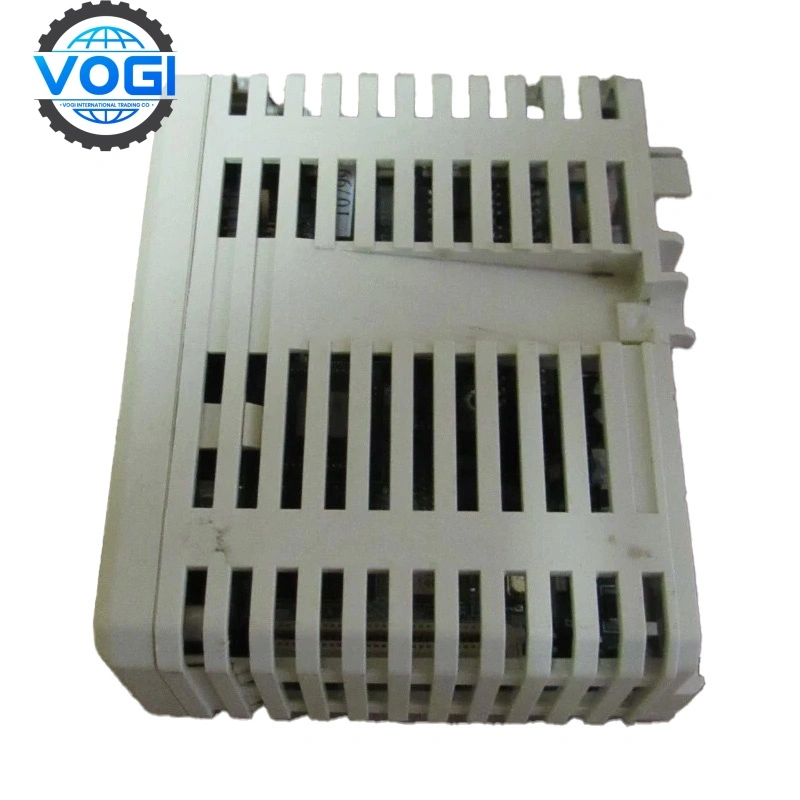

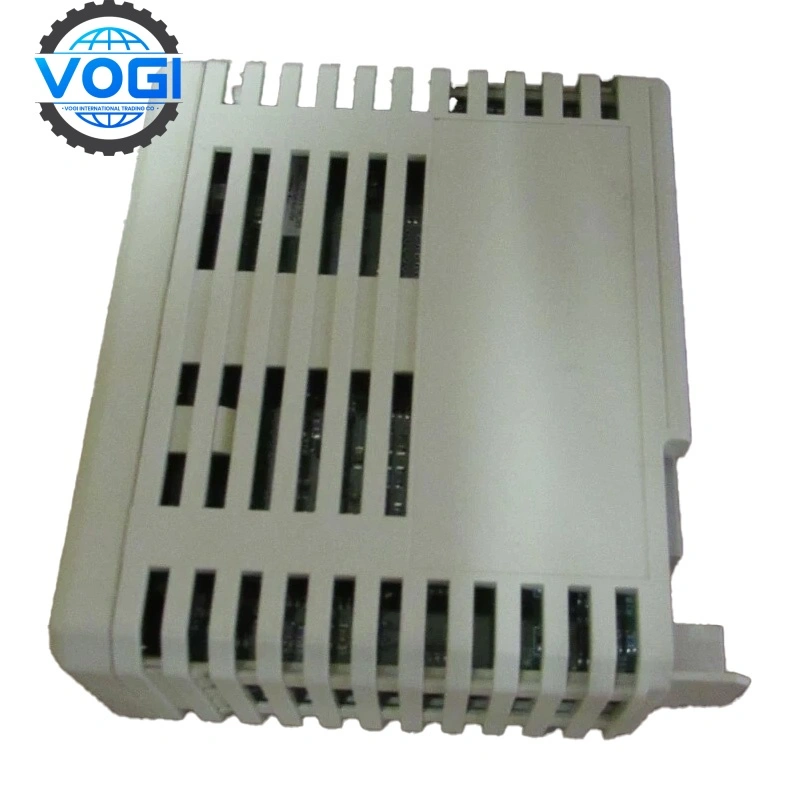

ABB FAU800 C10-11010 Flame Analysis Interface Module

ABB FAU800 C10-11010 Flame Analysis Interface Module

Brand	ABB
Module Number	FAU800
Ordering Number	C10-11010
Price	$150
Country Of Origin	Sweden
Weight	0.20kg
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

Description

ABB FAU800Technical specifications

Number of input channels: 2 independent channels

Compatible sensor types: ABB flame rod, 4–20 mA sensor, 0–5V sensor

Relay output: Configurable flame fault relay output.

Response time range: 0.1 to 2.5 seconds

Power supply voltage: 24 VDC (operating range: 21.6V to 31.2V), supports single power supply or redundant power supply

Communication interface: Supports Modbus or Profibus communication protocol, easy to integrate into industrial network

Communication protocol: PROFIBUS DP-V1, Modbus RTU/TCP, HART (optional)

Interface configuration: 2 x PROFIBUS DP (9-pin Sub-D), 2 x Ethernet (RJ45), 4 x analog I/O optional

Signal isolation: Between channels: 500 V AC; Between systems: 1500 V AC

Data transmission rate: PROFIBUS DP: 12 Mbps; Modbus TCP: 100 Mbps

Power requirement: 24 V DC (±15%), dual power redundant input, typical power consumption 6 W

Environmental adaptability: operating temperature: -40°C to +70°C; humidity: 5-95%

Certification standards: CE, UL, ATEX (Zone 2 optional), IEC 61158/IEC 61784

Purpose:ABB FAU800 is used to receive and analyze signals from flame detectors, determine the flame status of the burner, detect flame extinction or abnormal conditions in a timely manner, and prevent potential safety hazards.

Applications:ABB FAU800 is widely used in DCS systems in the power, petrochemical, metallurgical and other industries, and is particularly suitable for application scenarios with high requirements for combustion process safety.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

ABB FAU800Key features

Multi-channel input: supports two independent input channels and can receive signals from multiple flame detectors at the same time.

Compatible with multiple sensors: compatible with ABB flame rods, 4-20 mA sensors and 0-5V sensors, adapting to different types of flame detectors.

Configurable relay output: ABB FAU800 with configurable flame fault relay output, the response time range is 0.1 to 2.5 seconds, which improves the response speed of the system.

Signal quality monitoring: with signal quality monitoring function, it can predict potential flame extinguishing situations, give early warning, and enhance system reliability.

Industrial-grade design: ABB FAU800 adopts industrial-grade design, has good anti-electromagnetic interference ability, suitable for harsh industrial environments

Typical cooperation cases

A refinery in Saudi Arabia uses ABB FAU800 to transmit tank level gauge (HART) data to the 800xA system via PROFIBUS DP, replacing traditional hard wiring.

A Canadian hydropower station integrates a third-party speed regulator through the Modbus TCP interface of ABB FAU800 to achieve remote start and stop and power regulation.

The BMW factory in Germany deploys ABB FAU800 to connect robots (PROFIBUS DP) and ABB control systems to improve the collaborative efficiency of the spraying line.

The North Sea wind power project uses the redundant PROFIBUS network of ABB FAU800 to collect meteorological sensor data to ensure stable communication in harsh environments.
