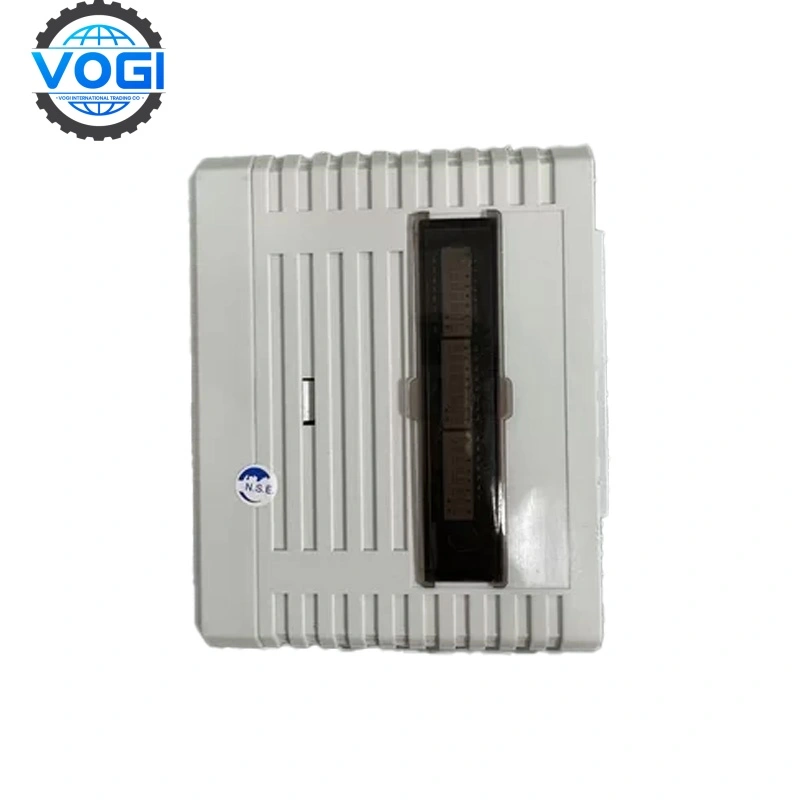

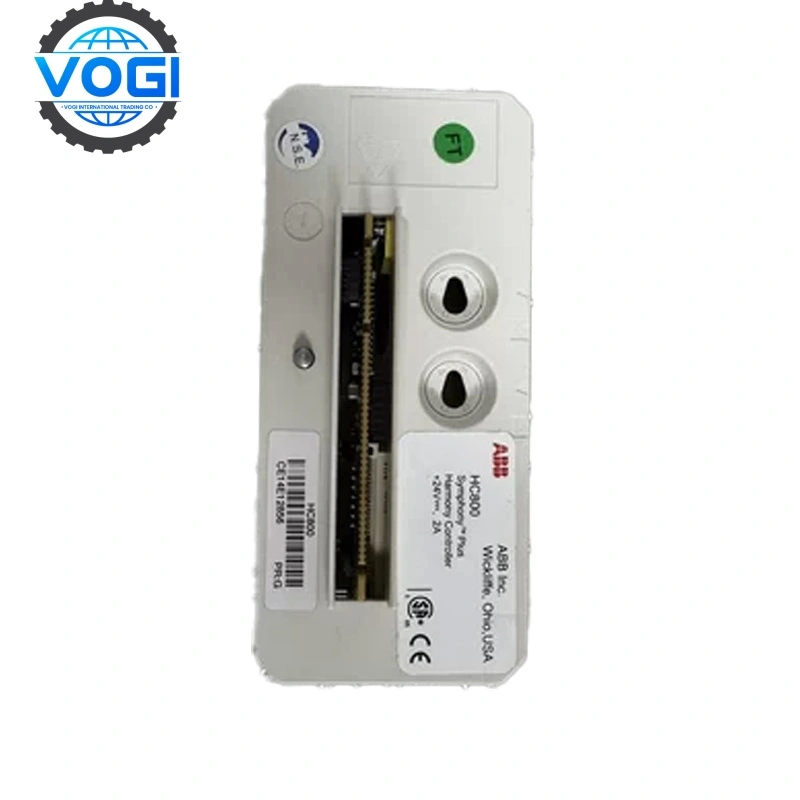

ABB HC800 Control Processor Module of HPC800

Brand	ABB
Module Number	HC800
Price	$5800
Country Of Origin	Sweden
Weight	0.88kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB HC800Technical specifications

Processor: 32-bit RISC processor, multi-core ARM Cortex-A9 (1.2 GHz)

Function block support: up to 30,000 function blocks

Memory: 2 GB RAM (user program), 4 GB flash (data storage)

Communication interface: 2 x Ethernet (10/100/1000 Mbps), 1 x PROFIBUS DP, 1 x RS-485 (Modbus RTU)

Communication protocol: Modbus TCP, PROFIBUS, HART, IEC 61850, etc.

Safety certification; SIL2/3 (IEC 61508/61511), ATEX Zone 2

I/O support: compatible with SD series I/O, Harmony Rack I/O and S800 I/O subsystems

I/O expansion capability: up to 256 local/remote modules, supporting redundant configuration

Cycle period: 1 ms to 10 s

Power requirement: 24 V DC (±15%)

Power input: Dual power input, typical power consumption 15 W

Processing capacity: Process more than 5,000 I/O points within 250 milliseconds

Mounting method: DIN rail mounting

Power supply voltage: 24 V DC

Protection level: IP20

Environmental adaptability: Operating temperature: -40°C to +70°C; Humidity: 5-95%

Purpose:As the core processing module of the HPC800 control system, ABB HC800 is responsible for executing complex process control tasks, including continuous control, batch control and advanced control strategies.

Applications:ABB GRBTU-01 is widely used in power system automation, substation control, industrial process control and other fields, and is particularly suitable for application scenarios with high requirements for communication stability and real-time performance.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB HC800Key features

Multi-core processing architecture: Dual-core/quad-core processors are used to support millisecond cycle cycles.Capable of processing over 5,000 I/O points in less than 250 milliseconds for fast, accurate process control.

Safety compliance: SIL2/3 certified, suitable for safety-critical systems.

Redundancy and fault tolerance: Support controller hot standby redundancy and I/O module redundancy.

Multi-protocol communication: Integrates PROFIBUS DP, Modbus TCP, OPC UA and other protocols, compatible with third-party devices.

Flexible scalability: Supports up to 256 local/remote I/O modules.

Harsh environment adaptability: Wide operating temperature range, anti-vibration, and electromagnetic interference.

Performance comparison

Parameter	ABB HC800	ABB AC 800M PM803F	Siemens S7-1500	Substitution Analysis
Processor Performance	Multi-core 1.2 GHz	Single-core 800 MHz	Multi-core 1.5 GHz	HC800 has better performance than PM803F and is comparable to S7-1500.
Safety Level	SIL3	SIL2	SIL2	HC800 offers the highest safety rating, ideal for high-risk environments like nuclear.
Redundancy Support	Controller hot-standby + I/O redundancy	Controller redundancy only	Requires additional redundancy kits	HC800 provides higher integration and shorter switchover times.
Communication Protocols	PROFIBUS DP, OPC UA, Modbus	PROFIBUS, Ethernet/IP	PROFINET, OPC UA	HC800 supports a wider range of protocols; S7-1500 is reliant on the PROFINET ecosystem.
Cost	High	Medium-High	High	HC800 offers better value in safety-critical systems, while S7-1500 suits general automation.

Typical cooperation cases

A refinery of Saudi Aramco uses ABB HC800 to build a SIL3 emergency shutdown system (ESD), with redundant configuration to manage 2000+ I/O points.

A Norwegian North Sea platform uses ABB HC800 to control equipment in explosion-proof areas, and uses ATEX-certified modules to withstand harsh environments.

Roche Pharmaceuticals in Switzerland deploys ABB HC800 to manage HVAC and aseptic filling lines, meeting GMP real-time data tracking requirements.

Japan's Nippon Steel uses ABB HC800's millisecond response to control the cooling water flow of continuous casting machines to improve the consistency of steel quality.
