Details
Purpose:ABB IMASI13 is a high-performance analog input module, which is widely used in industrial automation control systems, especially for the accurate acquisition and monitoring of process variables such as temperature, pressure, flow, liquid level, etc.

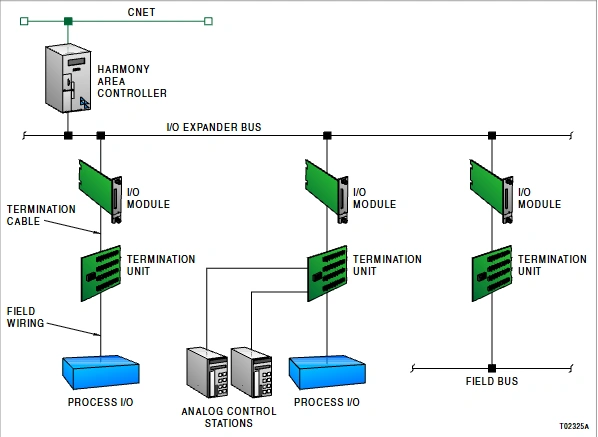

Applications:ABB IMASI13 is mainly integrated into ABB's Infi-90 and Net-90 systems and is widely used in DCS architectures in industries such as power, petrochemicals, pharmaceuticals, food and beverages.
ABB IMASI13Key features
Multi-signal compatibility: ABB IMASI13 supports 4-20 mA, 0-10 V, RTD (Pt100/Pt1000), thermocouple (J/K/T type).
High-precision measurement: 16-bit resolution, ±0.05% full-scale accuracy, suitable for demanding process control.
Channel isolation: 1500 V AC isolation between channels and between channels and systems, strong anti-interference.
Diagnosis and redundancy: wire break detection, over-limit alarm, support module hot swap and redundant configuration.
Wide temperature adaptability: ABB IMASI13 wide operating temperature range to meet the needs of harsh industrial environments.
Flexible configuration: custom range, filtering and alarm thresholds through Control Builder software.
