Details

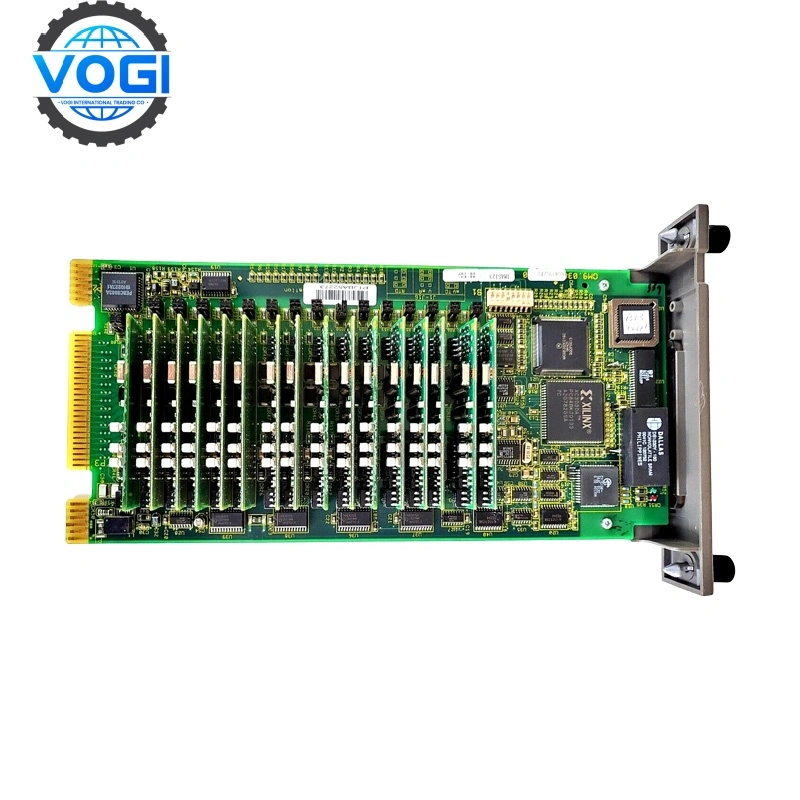

Purpose:.ABB IMASI23 is a high-performance analog input module designed for industrial automation control systems, especially suitable for accurate acquisition and monitoring of process variables such as temperature, pressure, flow, liquid level, etc.
Applications:ABB IMASI23 is mainly integrated into ABB's Symphony Enterprise Management and Control System and is widely used in DCS architectures in industries such as power, petrochemical, pharmaceutical, food and beverage.
ABB IMASI13Key features
Basic signal compatibility: ABB IMASI23supports 4-20 mA, 0-10 V single-ended input, meeting the needs of conventional analog quantity acquisition.
High cost performance: streamlined design, reduced deployment cost, suitable for small and medium-sized systems.
Simple configuration: ABB IMASI23quickly set the range and filter parameters through Control Builder.
Stable and reliable: industrial-grade hardware design, operating temperature -25°C to +70°C, anti-electromagnetic interference.
Modular expansion: ABB IMASI23compatible with ABB S800 I/O series, supports backplane plug-and-play.
Basic diagnosis: channel disconnection detection and over-limit alarm, support rapid fault location.
Alternative models

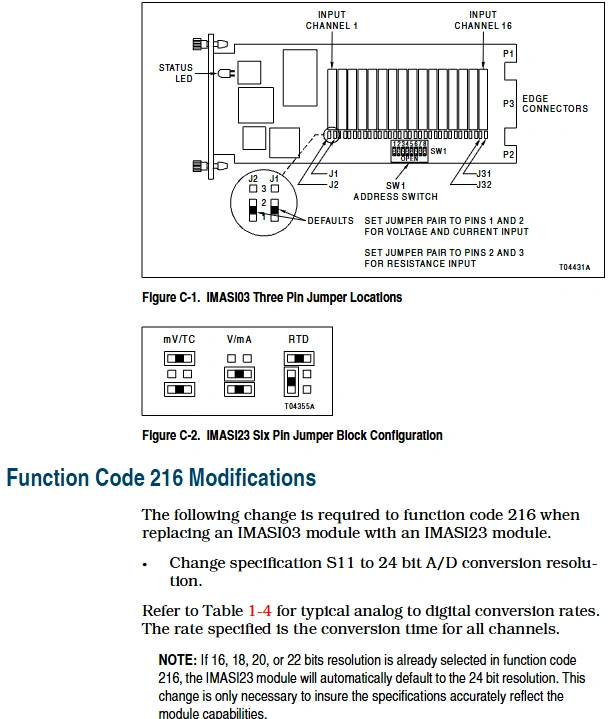

ABB IMASI23 can be used as a direct replacement for IMASI03 and IMASI13, but the following adjustments are required:
S11 specification of function code 216: needs to be modified according to the different resolutions.
Power capacity calculation: due to the change in power consumption, it may be necessary to re-verify the power capacity and system current requirements.
Summary: Compared with IMASI03 and IMASI13, IMASI23 provides higher resolution (24 bits) and wider input type support, suitable for application scenarios with higher requirements for accuracy and diversity.
