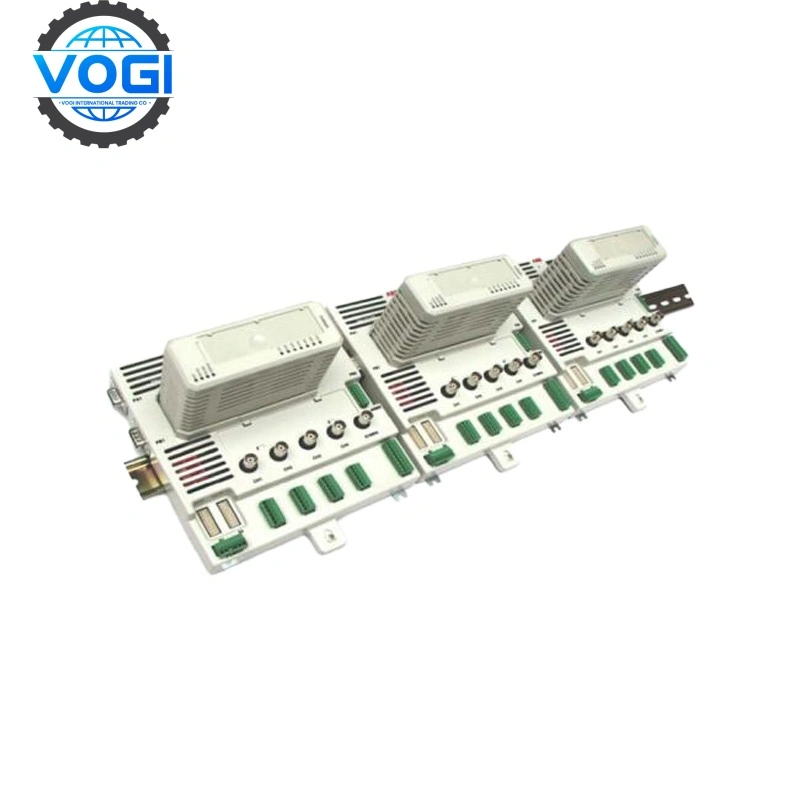

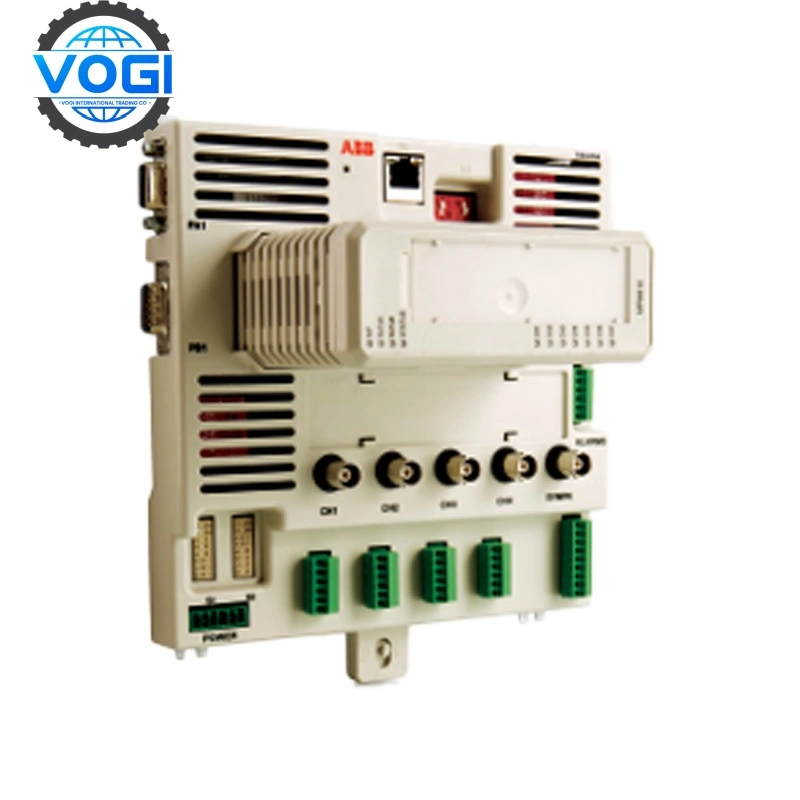

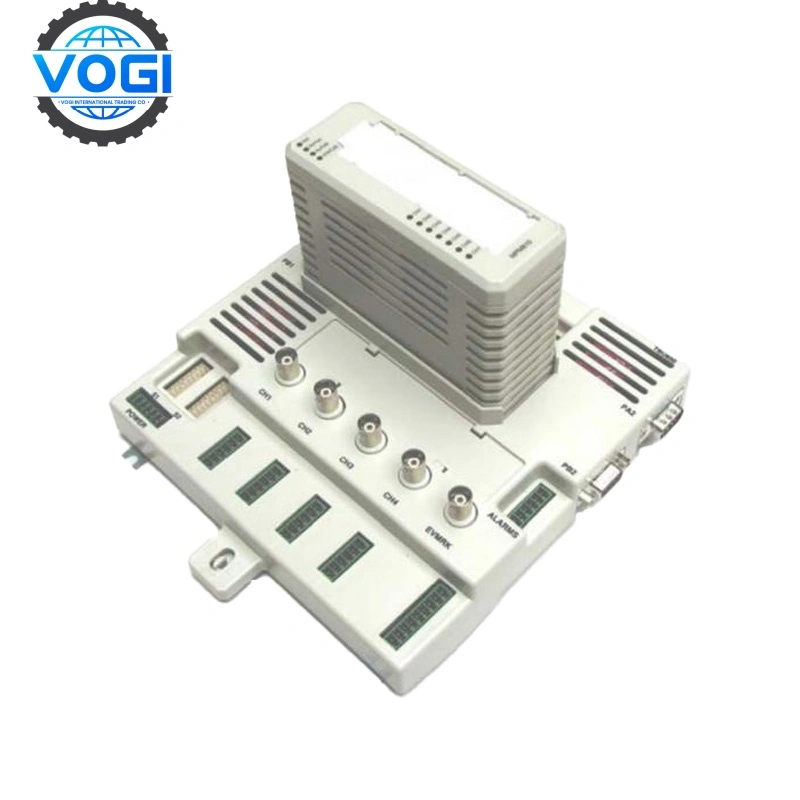

ABB MPM810 MCM Processor Module for MCM800

Brand	ABB
Module Number	MPM810
Price	$1000
Country Of Origin	Sweden
Weight	0.24kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

Description

ABB MPM810Technical specifications

Rated current: 0.5–630 A (configurable)

Voltage range: Three-phase 200–690 V AC, 50/60 Hz

Power input: +24 VDC, -24 VDC or +15 VDC, current limited to 30 mA

Analog input: 1 to 4 channels

Relay output: Dry contact (Form C), 2A @ 24 VDC/VAC (resistive load), supports excitation state selection.

Microprocessor: MCF5282, main frequency 64 MHz

Mounting method: Plug-in installation on TBU850 base; supports standard 35 mm DIN rail installation

Terminal: Crimp type, supports wire specifications 0.14–1.5 mm² (28–16 AWG)

Protection function: Overload (inverse time), short circuit (definite time/instantaneous), phase loss, unbalance (>15%), ground fault (30 mA–30 A)

Communication interface: Ethernet (RJ-45), Profibus DP (DSub9), Modbus RTU (RS-485), RS-232

Measurement accuracy: Current ±1%, Voltage ±0.5%, Power ±2%

Power requirements: Auxiliary power 24–240 V AC/DC (±20%), power consumption ≤5 W.

Operating temperature: -25°C to +70°C

Humidity: ≤95% non-condensing

Approvals: CE, UL, IEC 60947-4-1, IEC 62061 (SIL2)

Purpose:.ABB MPM810 is an intelligent motor protection and management module designed for low voltage motors. It can be integrated into the power distribution system or installed independently to provide comprehensive motor protection, energy consumption monitoring and predictive maintenance.

Applications:ABB MPM810 is mainly used in the manufacturing industry, such as pumps, fans, conveyors, HVAC systems in water treatment, and mining equipment. It is suitable for industrial scenarios that require high-reliability motor control and energy efficiency optimization.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

ABB MPM810Key features

Comprehensive protection function: supports overload, short circuit, phase loss, stall, unbalanced current, and ground fault protection.

Intelligent monitoring: real-time measurement of current, voltage, power, energy, and running time, supporting Modbus RTU/TCP communication.

Adaptive control: automatically identifies the motor starting mode and dynamically adjusts the protection threshold.

Diagnosis and maintenance: built-in fault record, bearing life prediction, and temperature abnormality warning.

Compact design: modular structure, supports DIN rail installation, saving space.

Typical cooperation cases

A refinery in Texas, USA, deployed MPM810 to monitor 50 centrifugal pumps, using Modbus TCP to warn of bearing wear and reduce unplanned downtime by 30%.

The Amsterdam Water Plant in the Netherlands uses the energy consumption monitoring function of MPM810 to optimize blower operation and save 12% of electricity annually.

The BMW factory in Germany uses MPM810 to manage conveyor belt motors and adjust the protection threshold in real time to adapt to frequent start-stop conditions.

BHP Billiton in Australia uses the stall protection function of MPM810 to prevent the motor from burning out due to ore jamming in the crusher.
