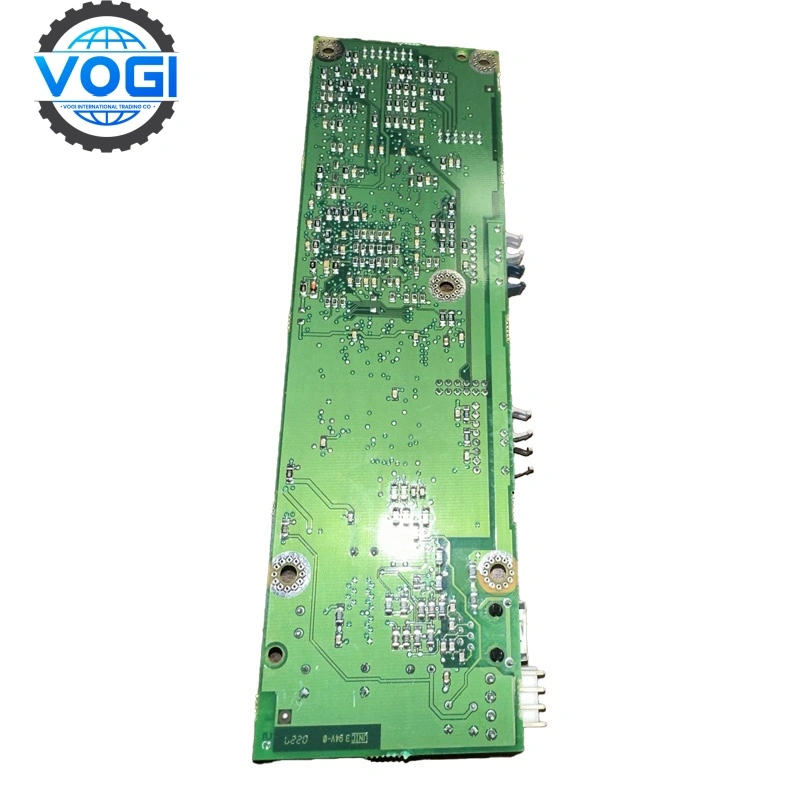

ABB NAMC-51C Control Board

Brand	ABB
Module Number	NAMC-51C
Price	$1000
Country Of Origin	Sweden
Weight	0.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB NAMC-51C Technical specifications

Communication protocols: Modbus TCP/RTU, PROFIBUS DP-V1, OPC UA, HTTP/HTTPS

Network interface: 2 x 10/100/1000Base-T RJ45 (supports MRP), 1 x PROFIBUS DP (9-pin Sub-D)

Data processing power: 1 GHz ARM Cortex-A8, 512 MB RAM, 4 GB Flash

Data transfer rate: Ethernet: 1 Gbps; PROFIBUS DP: 12 Mbps

Redundancy performance: MRP ring network switching time ≤ 200 ms

Power requirement: 24 V DC (±20%), typical power consumption 10 W

Operating temperature: -40°C to +70°C

Protection class IP40

Humidity ≤95% non-condensing

Certification standards: CE, UL, IEC 62443-3-3, ATEX Zone 2

Applicable systems: ABB ACS 600 and ACA 6xx series medium voltage inverter system

Communication interface: supports connection with NDPI-02 panel interface board for data communication

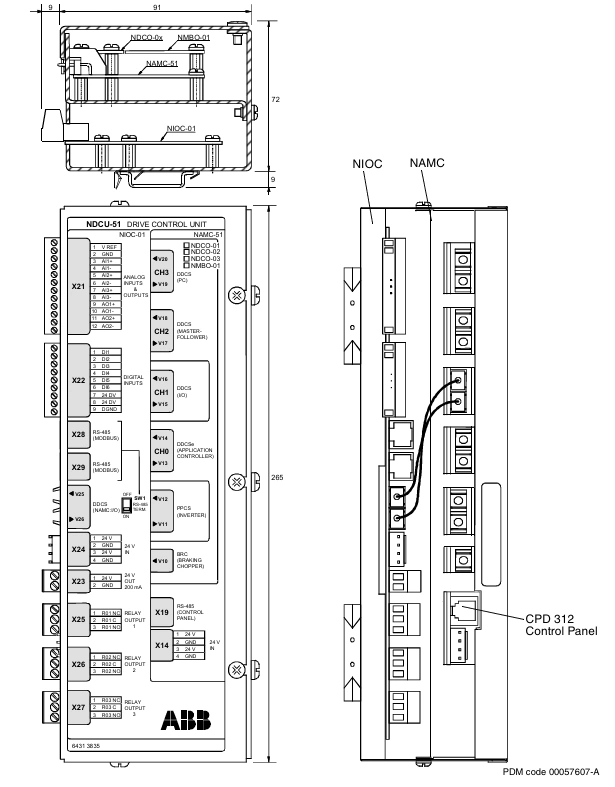

Installation method: installed in the control cabinet, connected to NAMC-11/51 or NIOC board

Purpose:.ABB NAMC-51C is a multi-function network communication module designed for ABB AC 800M series controllers. It mainly realizes multi-protocol data exchange and industrial equipment networking. Its core functions include protocol conversion, real-time data routing and network security protection

Applications:ABB NAMC-51C is widely used in process industries such as petrochemicals, electric power, discrete manufacturing such as automobile production lines, robot control, and infrastructure such as smart buildings and traffic monitoring. It is suitable for complex industrial environments that require cross-platform communication and high-reliability network architecture.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB NAMC-51CKey features

Integrated communication interface: Supports connection with NDPI-02 panel interface board, and data exchange with other modules of the system through optical fiber or serial communication.

Modular design: Interchangeable with control boards such as NAMC-11, NAMC-21, etc., to adapt to different system configuration requirements.

Safety protection function: Built-in ground fault protection function protects the drive, motor and its cables from ground faults (this function is not activated by default in the power supply unit).

High reliability: Designed to meet the requirements of industrial environments, with good anti-interference ability and stability.

Typical cooperation cases

ADNOC, the Abu Dhabi National Oil Company of the United Arab Emirates, uses ABB NAMC-51C to connect 200 Modbus RTU level meters to the PROFIBUS network and integrate them into the 800xA system.

Toyota's factory in Japan connects 50 welding robots through the MRP ring network of ABB NAMC-51C to achieve real-time status monitoring and fault warning.

Google's data center in the United States deploys ABB NAMC-51C to integrate HVAC systems and photovoltaic inverters to optimize energy consumption distribution.

Cape Town, South Africa, uploads pump station data to the cloud analysis platform through the OPC UA function of ABB NAMC-51C to warn of equipment failures in advance.
