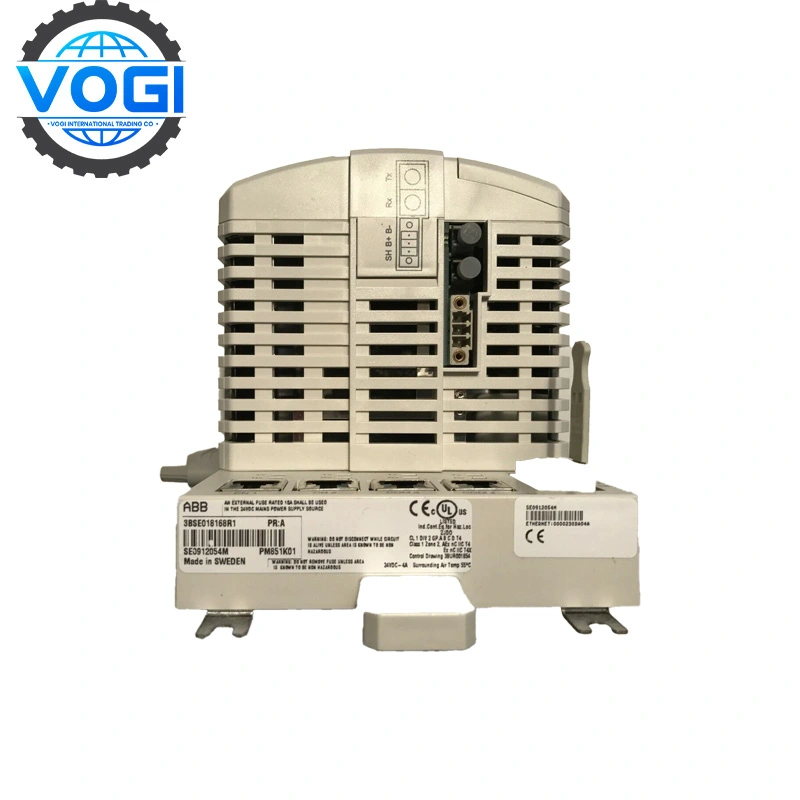

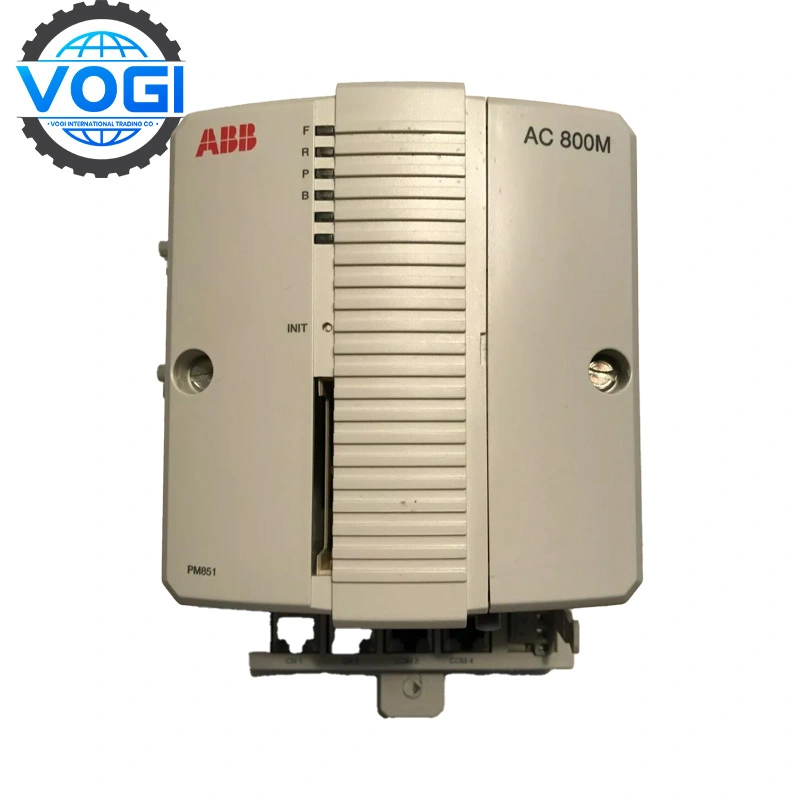

ABB PM851K01 3BSE018168R1 Processor Unit Kit

ABB PM851K01Technical specifications​

Power input: 24 V DC (±20%)

Rated voltage: AC 690V, 50/60Hz

Rated current: 16A

Number of poles: 1P+N, 3P, 3P+N

Breaking capacity: 3kA (at 230V AC, suitable for low short-circuit current environment)

Tripping curve: Type C

Protection level: IP20

Mechanical life: 10,000 operations

Electrical life: 5,000 operations

Ambient temperature: -25°C to +55°C (industrial wide temperature adaptation)

Certification standards: IEC 60947-2, UL 508, CE, RoHS

Processor frequency: 24 MHz

Memory capacity: 12 MB RAM

Communication interface:

2 RJ45 Ethernet ports (CN1, CN2)

2 RJ45 serial ports (COM3, COM4)

Other functions:

Real-time clock

LED indicator

INIT initialization button

CompactFlash interface

Purpose:ABB PM851K01 (order number: 3BSE018168R1) is the core processor module of ABB AC 800M control system, which is widely used in industrial automation, process control, power system and other fields.
