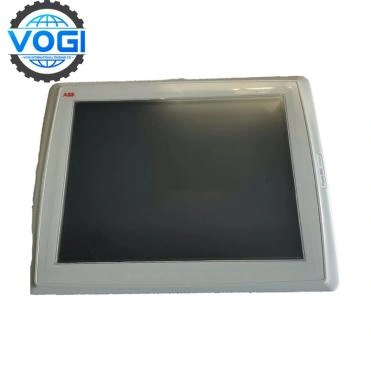

ABB PP846 3BSE042238R1 Operator Panel

Brand	ABB
Module Number	PP846
Ordering Number	3BSE042238R1
Price	$3000
Country Of Origin	Sweden
Weight	2.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB PP846 Technical specifications

Display: 10.4-inch TFT-LCD, resolution 800×600 pixels, support 64K colors, CCFL backlight, life span more than 50,000 hours

Processor: Intel XScale 416 MHz RISC CPU

Memory: Flash: 32 MB; RAM: 64 MB

Application Flash: 12 MB including fonts

Real-time clock: ±20 PPM accuracy, monthly error less than 1 minute

Power input: +24V DC (allowable range 20–30V DC), 3-pin terminal block

Power consumption: Normal 0.5 A, maximum 1.0 A

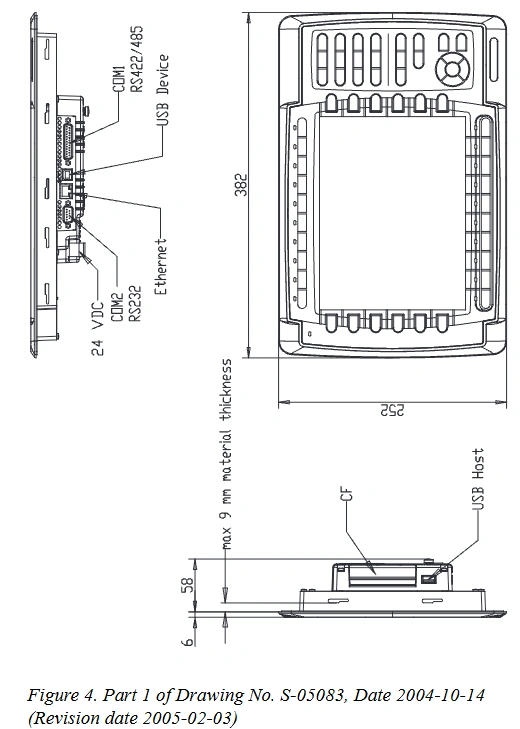

Dimensions and weight:

Front panel dimensions: 38.2cm × 25.2cm × 0.6cm

Mounting depth: 5.8cm

Protection rating:

Front panel: IP66

Rear panel: IP20

Interfaces:

Serial ports: RS422/RS485 (25-pin D-sub), RS232C (9-pin D-sub)

Ethernet: Shielded RJ45, 10/100 Mbps

USB: Host Type A (max output current 500 mA), Device Type B (USB 1.1)

CompactFlash slot: supports Type I and II

Purpose:ABB PP846 (order number: 3BSE042238R1) is a function key human machine interface device in the ABB Panel 800 series, designed for efficient interaction between operators and control systems in industrial automation environments.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB PP846Key features

High-performance processing capability: Equipped with a 416 MHz RISC processor and ample memory, ensuring fast response and smooth operation experience.

Multiple communication interfaces: Supports multiple communication protocols for data exchange and remote control with various automation equipment.

Rugged design: Adopts powder-coated aluminum housing and the front panel has an IP66 protection level to adapt to harsh industrial environments.

Rich function support: Built-in multiple functions such as text display, dynamic indication, time channel, alarm and recipe processing, etc., to meet complex industrial control needs.

Easy to integrate and expand: Supports USB and CompactFlash expansion for flexible expansion and upgrade of the system

Alternative models

The main differences between PP846 and other models in the ABB Panel 800 series are display size, resolution and interaction mode:

PP836: 6.5 inches, 640×480 pixels, function key operation.

ABB PP846

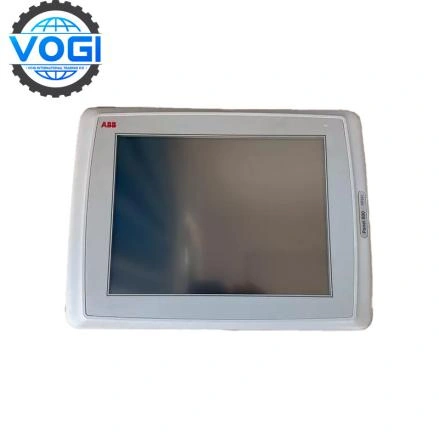

PP845: 10.4 inches, 800×600 pixels, touch screen operation.

ABB PP846

PP865: 15 inches, 1024×768 pixels, touch screen operation.

ABB PP846

Summary: If you need a larger display area and higher resolution, you can choose PP865; if you prefer touch screen operation, PP845 and PP865 are more suitable choices.
