Bently Nevada 125840-01 High Voltage AC Power Input Module

Bently Nevada 125840-01 High Voltage AC Power Input Module

Brand	Bently Nevada
Module Number	330104-00-04-10-02-05 330104-00-04-10-02-00 330104-00-14-10-02-00 330104-00-15-10-02-05 330104-08-16-05-02-05 330104-10-13-05-02-05 330104-00-08-50-02-00 330104-00-09-10-02-05
Price	$600
Weight	0.25kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	2

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 330104-00-04-10-02-05 Key parameters

Materials & Construction

Probe Tip: Molded Polyphenylene Sulfide (PPS) plastic for durability and resistance to physical stress.

Probe Case: AISI 303/304 stainless steel for robustness in harsh industrial environments .

Sealing: Viton O-ring seals differential pressure between the probe tip and case .

Connector Type

Features: Gold-plated, corrosion-resistant, finger-tightened design with a locking mechanism . No tools required for installation/removal .

Certifications & Approvals

Agency Approvals: CSA, ATEX, and IECEx . Certified for use in hazardous/explosive atmospheres .

System Integration

Compatibility: Part of the 3300 XL 8 mm Proximity Transducer System. Backward-compatible with non-XL 3300 series 5 mm/8 mm components .

Function: Measures both static position and dynamic vibration via eddy current technology. Output voltage is proportional to the gap between the probe tip and a conductive target .

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Model Selection

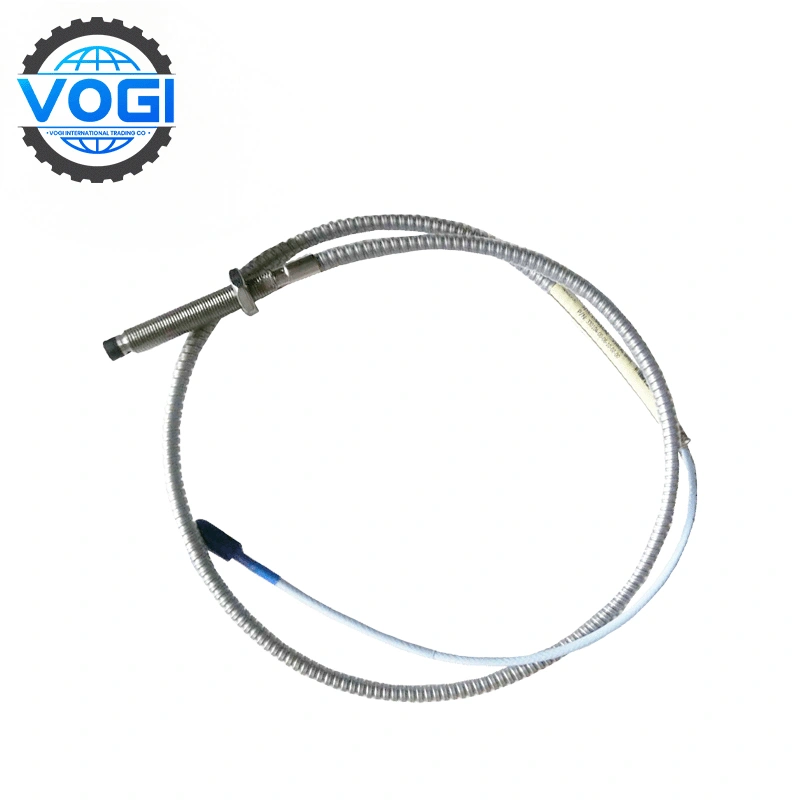

330104 3300 XL 8mm Probe, M10 x 1 thread, with armor

330104-AA-BB-CC-DD-EE
AA: Unthreaded Length Option
BB: Overall Case Length Option
CC: Total Length Option
05	0.5 meters (1.6 feet)	20	2.0 meters (6.6 feet)
10	1.0 meters (3.3 feet)	50	5.0 meters (16.4 feet)
15	1.5 meters (4.9 feet)	90	9.0 meters (29.5 feet)
DD: Connector and Cable-Type Option
01	Miniature coaxial ClickLoc connector with connector protector, standard cable	11	Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
02	Miniature coaxial ClickLoc connector, standard cable	12	Miniature coaxial ClickLoc connector, FluidLoc cable
EE: Agency Approval Option
00	Not required	05	CSA, ATEX, IECEx Approvals

Bently Nevada 330104-00-04-10-02-05 Linked Equipment

Essential Partner Unit: Must connect to a compatible 3300 XL Proximitor® Sensor (e.g., 330180 series). This module conditions raw signals and adds RF interference rejection critical for reliable data.

Cabling Flexibility: Interfaces with standard or FluidLoc® extension cables for routing through panels. Note: For oil immersion, FluidLoc cables must replace the factory-attached cable.

System Synergy: Functions within the broader 3300 XL monitoring ecosystem. While backward-compatible with older 5mm/8mm probes, optimal performance demands matching all components to XL-series specifications.
