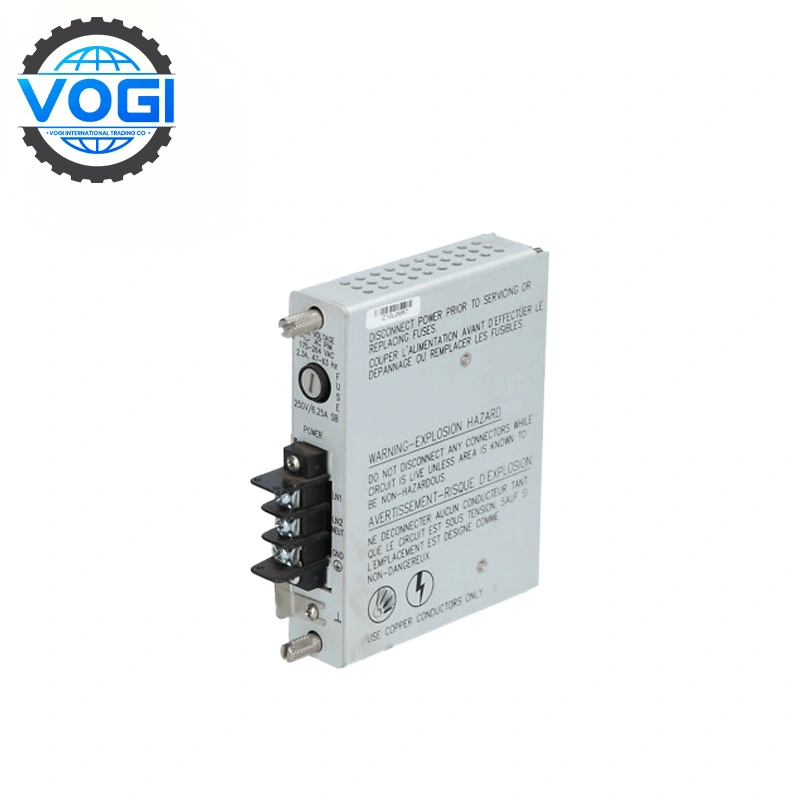

Bently Nevada 125840-01 High Voltage AC Power Input Module

Bently Nevada 125840-01 High Voltage AC Power Input Module

Brand	Bently Nevada
Module Number	125840-01
Ordering Number	125840-01
Price	$500
Country Of Origin	USA
Weight	0.6kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 125840-01 Key parameters
Voltage Range & Frequency Handling
Accepts input voltages of 175–264 VAC RMS (247–373 VAC peak) at 47–63 Hz frequency. Installations using PIMs prior to Revision R require tighter input ranges (175–250 VAC RMS). Ensures stable power conversion for downstream 3500-series modules .
Physical Integration & Dimensions
Form Factor: Half-height module designed for rear slots behind associated power supplies in 3500 racks.
Dimensions: 120.7 mm (H) × 25.4 mm (W) × 114.3 mm (D) ;Weight: 0.34 kg (0.75 lb).
Environmental Specifications
Operating Temp: -30°C to +65°C (-22°F to +150°F).
Storage Temp: -40°C to +85°C (-40°F to +185°F).
Humidity: Functions reliably at ≤95% non-condensing humidity. Validated for harsh industrial environments .

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 125840-01 Key Features

High-Voltage Input Range & Protection
The Bently Nevada 125840-01 handles 175–264 VAC RMS (peak: 247–373 VAC) at 47–63 Hz, ensuring compatibility with industrial power grids. It integrates critical safeguards:
Undervoltage Resilience: Sustains operation without damage during voltage dips.
Fuse-Based Overvoltage Protection: Triggers fuse disconnection during surges (e.g., >264 VAC RMS), shielding downstream components.
Modular Design & Rack Integration
Redundancy Support: Enables single or dual power configurations. In redundant setups, a secondary unit acts as instant backup if the primary fails—ensuring zero downtime.
Electrical Isolation & Safety Compliance
Input/Output Isolation: Decouples high-voltage mains from monitoring circuits, preventing noise interference or ground-loop issues.
Hazardous Area Certification: Meets ATEX/IECEx/CSA standards for Zone 2/Division 2 installations when paired with compatible power supplies (e.g., 3500/15-02 series).
