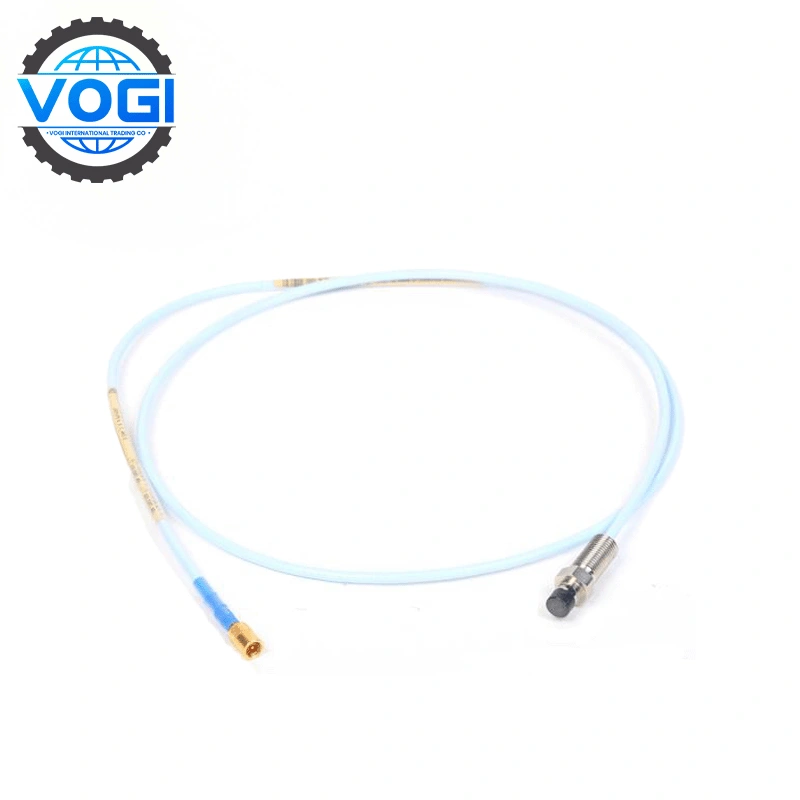

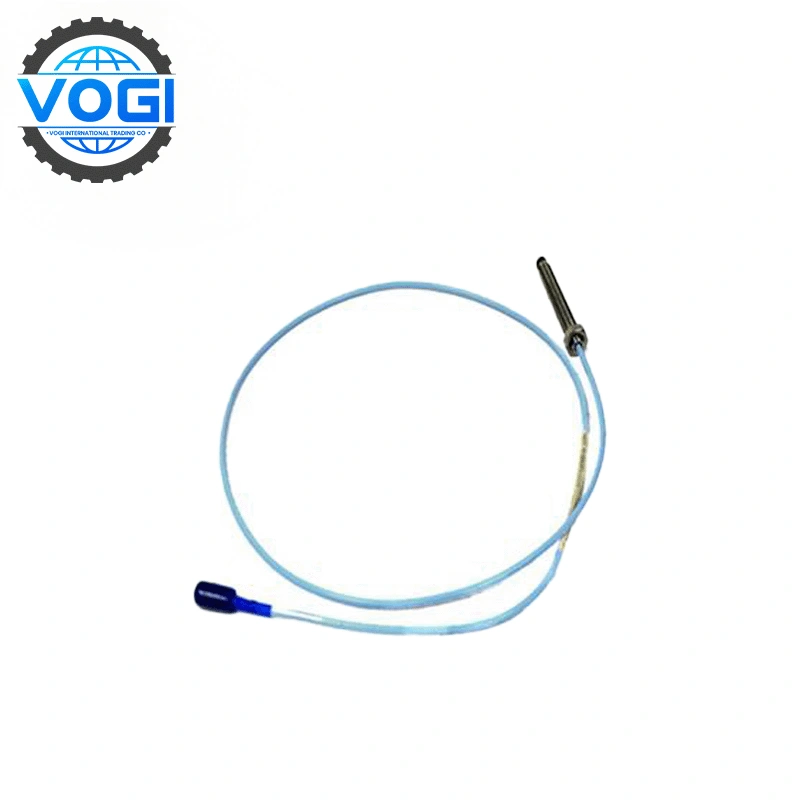

Bently Nevada 330105-02-12-10-02-00 8mm Reverse Mount Probes

Bently Nevada 330105-02-12-10-02-00 8mm Reverse Mount Probes

Brand	Bently Nevada
Module Number	330105-02-12-10-02-00
Price	$600
Country Of Origin	USA
Weight	0.25kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	15

Add to Cart

Submit Inquiry

Description

Payment & Security

Datasheet Download

Description

Bently Nevada 330105-02-12-10-02-00 Key parameters

Physical Configuration & Mounting

Probe Type: 3300 XL 8 mm Reverse Mount Design, optimized for installations where space constraints prevent standard probe orientation.

Thread Size: 3/8-24 UNF, compatible with imperial-threaded mounting brackets in turbines or compressors.

Case Length: 12 mm, enabling deployment in tightly confined machinery spaces like bearing housings.

Integrated Cable: 1.0-meter factory-attached cable, reducing splice points for improved signal integrity.

Materials & Environmental Resilience

Probe Tip: Molded Polyphenylene Sulfide plastic for chemical/abrasion resistance in oil-lubricated environments.

Probe Body: AISI 303/304 stainless steel casing, ensuring durability in high-vibration industrial settings.

Sealing: Integrated Viton O-ring prevents moisture/dust ingress at connector junctions.

Temperature & Certifications

Operating Range: -51°C to +177°C.

Extended Temperature (ETR) Capability: Not supported; for >177°C, use ETR-specific probes.

Hazardous Area Rating: No intrinsic safety certification. Suitable for non-explosive zones only.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

Model Selection

330105-02-12-CC-DD-EE 3/8-24UNF threads

CC: Total Length Option
05	0.5 meters (1.6 feet)	20	2.0 meters (6.6 feet)
10	1.0 meters (3.3 feet)	50	5.0 meters (16.4 feet)
15	1.5 meters (4.9 feet)	90	9.0 meters (29.5 feet)
DD: Connector and Cable-Type Option
02	Miniature ClickLoc coaxial connector	12	Miniature ClickLoc coaxial connector, FluidLoc cable
EE: Agency Approval Option
00	Not required	05	CSA, ATEX, IECEx Approvals

Bently Nevada 330105-02-12-10-02-00 Core Functions

Dual-Parameter Measurement: The Bently Nevada 330105-02-12-10-02-00 generates eddy currents to monitor both: Static position; Dynamic vibration on rotating assets like pumps or fans.

Precision Output: Delivers a linear scale factor of 200 mV/mil (7.87 mV/µm) ±6.5% against AISI 4140 steel targets, with ≤±38 µm linearity error across its 2 mm (80 mil) measuring range.

Environmental Resilience: Operates reliably from -35°C to +177°C (-31°F to +350°F). Includes a Viton O-ring seal to resist moisture/dust ingress in humid or high-splash zones.
