Model Selectio
330707 3300 XL 11mm Probe, 5/8-18 UNF thread, without armor
330707-AA-BB-CC-DD-EE | |||
AA: Unthreaded Length Option | |||
BB: Overall Case Length Option | |||
CC: Total Length Option | |||
10 | 1.0 meters (3.3 feet) | 50 | 5.0 meters (16.4 feet) |
90 | 9.0 meters (29.5 feet) |
|
|
DD: Connector and Cable-Type Option | |||
01 | Miniature coaxial ClickLoc connector with connector protector, standard cable | 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
02 | Miniature coaxial ClickLoc connector, standard cable | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
EE: Agency Approval Option | |||
00 | Not required | 05 | Multiple Approvals |

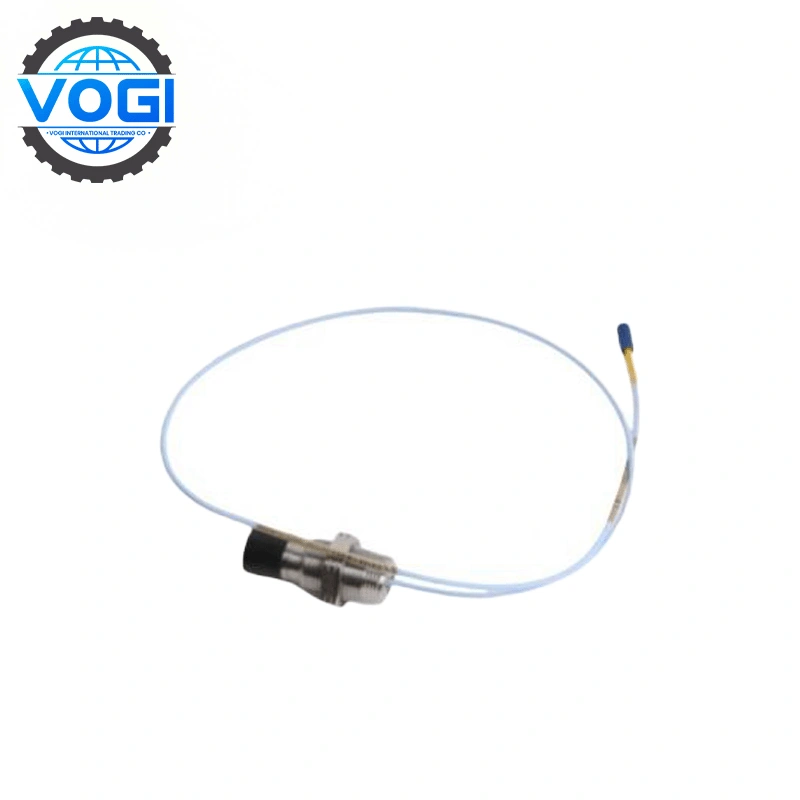

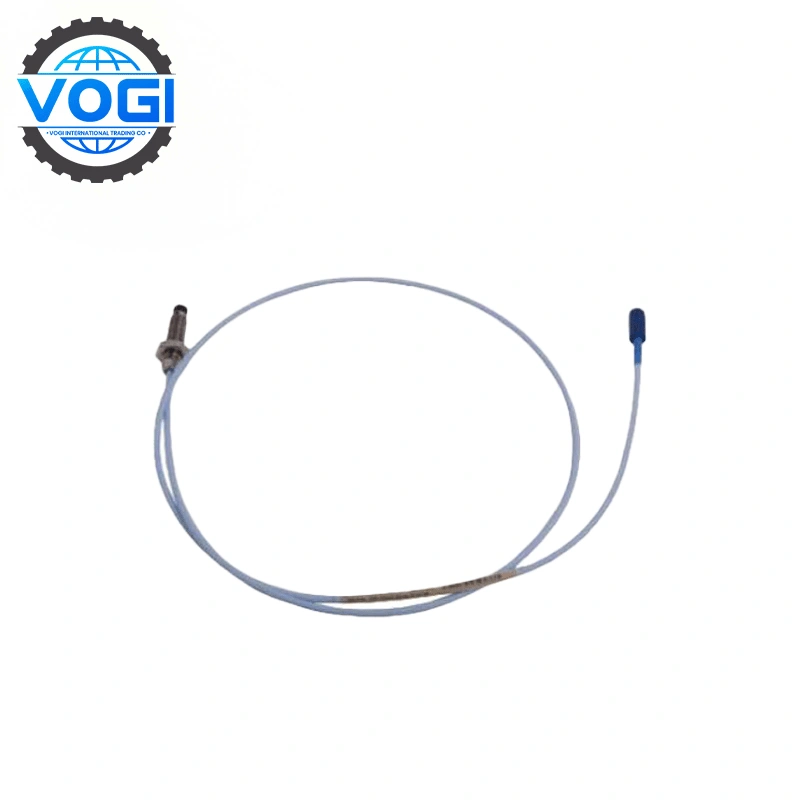

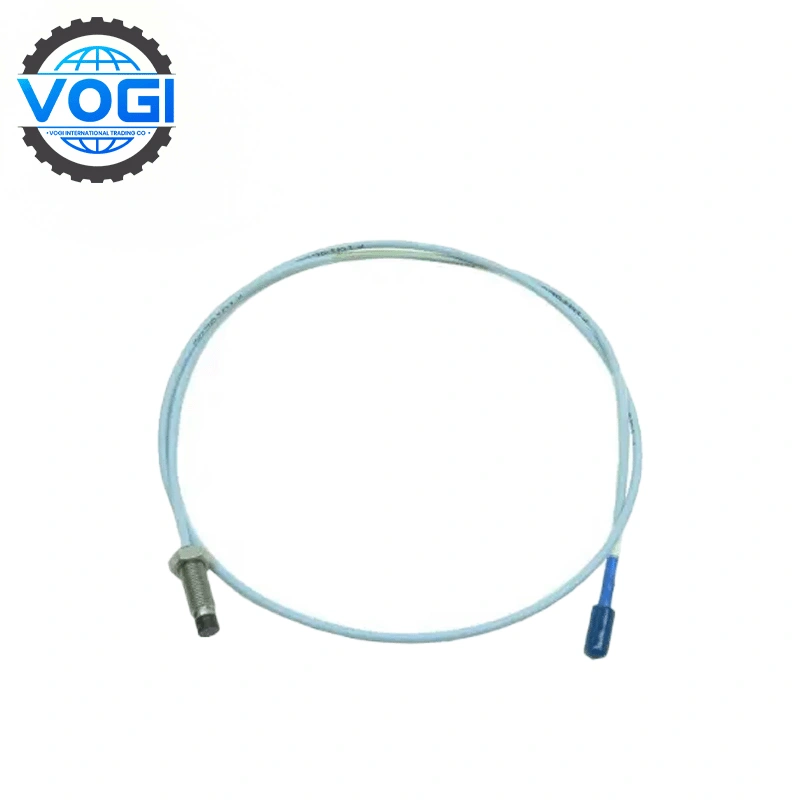

Bently Nevada 330707-00-62-10-01-00 Core Functio
Optimized 11 mm Eddy-Current Sensing
The Bently Nevada 330707-00-62-10-01-00 employs an 11 mm diameter probe tip for extended linear measurement range (up to 4 mm / 160 mil), ideal for detecting vibration and position shifts in rotating machinery like turbines or compressors . Its design leverages eddy-current technology to generate a -1 to -18 Vdc output linearly proportional to proximity changes against conductive targets.
Industrial-Grade Mechanical Design
Thread Specification: 5/8-18 UNF thread without armor, enabling direct mounting in tight spaces .
Case Dimensions: 6.2-inch total length with zero unthreaded section, ensuring secure installation .
Cable Integration: Pre-terminated 1.0-meter PVC cable minimizes field wiring errors .
Broad Environmental Tolerance
Operates reliably across -40°C to 120°C (-40°F to 248°F) , making it suitable for extreme industrial environments—from freezing plants to high-heat machinery zones. Its PVC-jacketed cable resists common industrial chemicals and abrasion .
