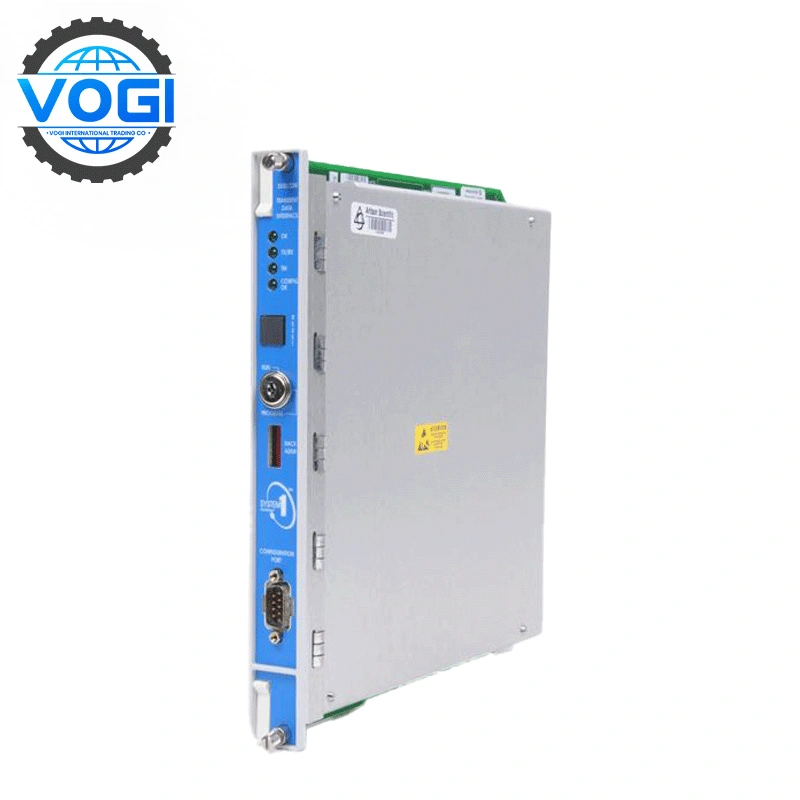

Bently Nevada 3500/22M Transient Data Interface

Brand	Bently Nevada
Module Number	3500/22M
Module Number	138607-01 288055-01 146031-01
Price	$1000
Weight	0.9kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 3500/22M Key parameters

Data Interface & Communication

Ethernet I/O: Supports 10Base-T/100Base-TX (copper) and 100Base-FX (fiber-optic) Ethernet with autosensing capability.

USB-B Port: Enables RS232 serial communication (115.2 kbaud max) for direct configuration and diagnostics.

Protocols: Compatible with GE’s System 1 software for machinery condition monitoring and diagnostics.

Dynamic Data Collection

Waveform Sampling: Captures synchronous data up to 100,000 rpm (for ≤16 channels) with configurable sampling rates (32–1024 samples/rev).

Transient Capture: Optional Channel Enabling Disk activates high-resolution dynamic data collection.

Alarm Data: Pre/post-alarm static values (1-second intervals) and waveform data.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 3500/22M Details

Ordering Number	Description
138607-01	Standard/10Base-T/100Base-TX Ethernet
288055-01	Standard Transient Data Interface Module with USB cable
146031-01	10Base-T/100Base-TX I/O Module

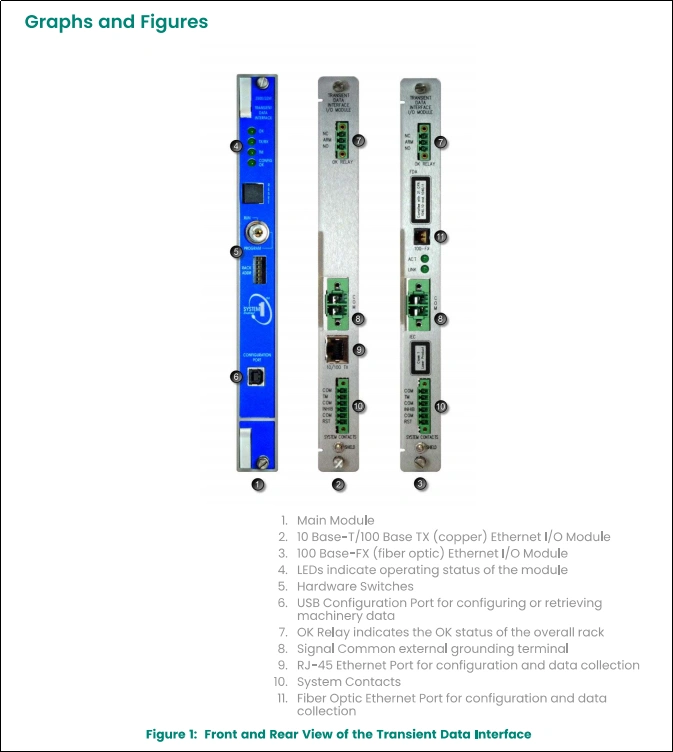

Bently Nevada 3500/22M Core Function

High-Fidelity Data Collection and Protocol Integration

The TDI serves as a bridge between the Bently Nevada 3500 monitoring system and diagnostic software (e.g., System 1), combining the functionality of a Rack Interface Module (RIM) and external communication processors . It captures steady-state data and high-resolution transient waveforms (up to 30 kHz frequency spans) across 48 channels, enabling precise analysis of events like compressor surge or turbine vibration anomalies. An optional Channel Enabling Disk unlocks dynamic transient data capture, critical for detecting millisecond-level anomalies in rotating machinery .

Adaptive Communication Connectivity

Bently Nevada 3500/22M is Equipped with dual Ethernet ports (10/100Base-TX and 100Base-FX fiber-optic) and a USB-B interface, the module supports BN Host Protocol and BN TDI Protocol for seamless integration with plant control systems . Fiber-optic I/O ensures noise-resistant data transfer over 328 ft distances, while USB-B auto-bauding (115.2 kbaud) simplifies direct diagnostics in remote installations .
