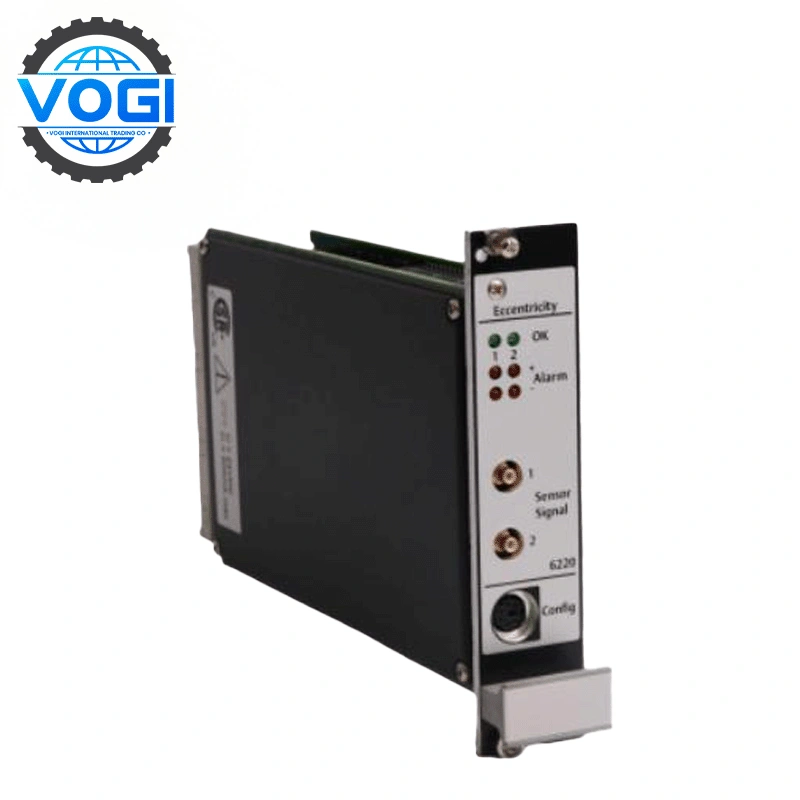

Emerson A6220 Shaft Eccentricity Monitor

Brand	Emerson
Module Number	A6220
Ordering Number:	A6220
Price	$1200
Weight	0.32kg
Country Of Origin	United States
Certificate	Certificate: C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	3

Description

Payment & Security

DataSheet Download

Description

Emerson A6220 Key parameters

Two-channel, 3U size, 1-slot plug-in module decreases cabinet space requirements in half from traditional four-channel 6U size cards.

APl670 compliant,hot swappable module.

Remote select able limit multiply and trip bypass.

Front and rear buffered and proportional outputs,0/4-20 mA output,0 -10 Vout put

Self-checking facilities include monitoring hardware,power input, hardware temperature.sensor and cable.

Use with displacement sensor6422,6423,6424 and 6425,driver CON xxx and key monitoring module.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Emerson A6220 Details

The AMS 6500 Machinery Health Monitor is an integral part of Plant Web and AMS software.

Plant Web provides operations integrated machinery health combined with the Ovation and Delta V process control system, AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

A6220 Shaft Eccentricity Vibration Monitor for AMS 6500 Machinery Health Monitor

Transducer Inputs
Number of lnputs	Two,independent
Type of lnputs	Eddy current,differential
Emerson Sensor Inputs	Part number:6422,6423,6424,6425
Isolation	Galvanically separated from power supply
Input Resistance	>100 kΩ
Input Voltage Range	-1 to 23VDC
Input Frequency Range	0.017-70Hz(102-4200 rpm)
Measuring Range
Range	Continuously adjustable with the configuration software
Smallest Range	0-400 mVpeak
Largest Range	0-8000 mVpeak
Sensor Power Supply	Separate buffered sensor supply Galanically separated from all system voltages and system supply voltage Open and short circuit proof
Nominal Voltage	-26.7VDC
Available Current	Nominal20mA,maximum 35mA
Front Panel Outputs
Green LED's	Two LED's,indicates channel OKseparately for each channel
Red LED's	Four LED's,indicates alert and danger separately foreach channel
Front Panel Buffered Outputs	Two,identical to transducer sensor inputs-1 to-24V,>100kQload,freq. range0-16kHz(-3db)
Mini DIN Configuration Socket	Module interface connection for configuration and parameter and status monitoring R5-232
Handle	Easily remove card and provide plate for module and sensor identification
Analysis
Measurement Modes	Hot configurable(60 second settling time)Peak to peakk Min/max measurement Continuous gap measurement
Configurable Parameters	Measuring range Engineering units Sensor sensitivity
