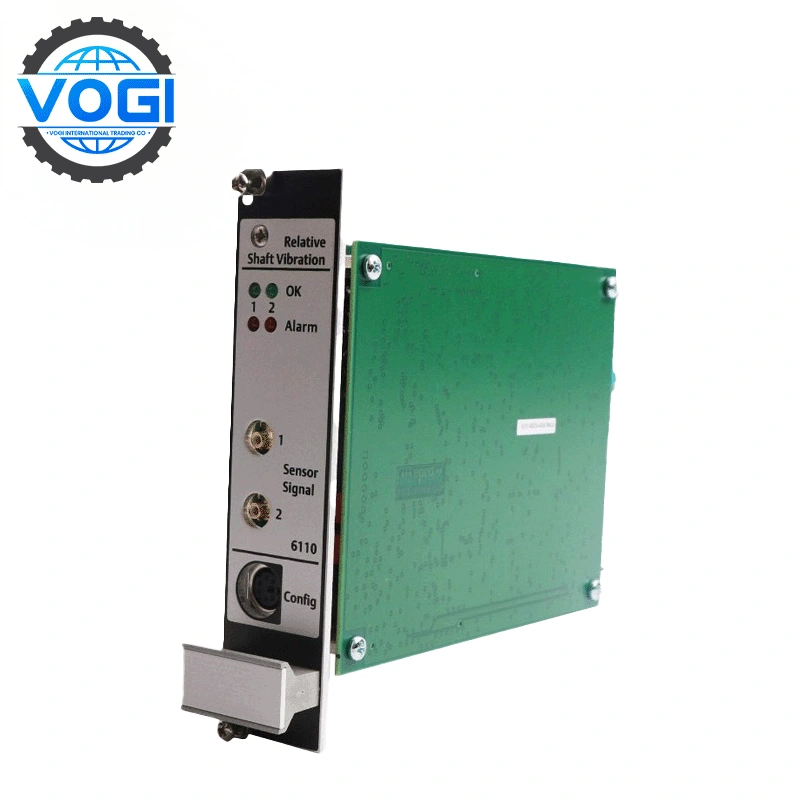

Emerson A6110 Shaft Relative Vibration Monitor

Brand	Emerson
Module Number	A6110
Ordering Number	A6110
Price	$550
Weight	0.35kg
Country Of Origin	United States
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	13

Description

Payment & Security

DataSheet Download

Description

Emerson A6110 Key parameters

Two-channel, 3U size, 1-slot plugin module decreases cabinet space requirements in half from traditional four -channel 6U size cards.

APl670 compliant,hot- swappable module.

Remote selectable limit multiply and trip bypass.

Front and rear buffered and proportional outputs,0/4-20 mA output,0-10 Voutput

Self-checking facilities include monitoring hardware, power input.hardware temperature, sensor,and cable.

Use with displacement sensors PR6422,PR6423,PR6424,PR6425,and driver CON 011/91,021/91,041/91.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Emerson A6110 Details

The AMS 6500 is an integral part of Plant Web³ and AMS software, Plant Web provides operations integrated machinery health combined with the Ovation* and Delta V"process control system, AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

A6110 Shaft Relative Vibration Monitor for AMS 6500 Machinery Health Monitor

Transducer Inputs
Number of lnputs	Two,independent orcombined montoring modes
Type of lnputs	Eddy current,differential
Emerson Sensor Inputs	Part number:6422,6423,6424,6425
Isolation	Galvanically separated from powersupply
Input Resistance	>100 kΩ
Input Voltage Range	0to-22VDC
lnput Frequency Range	■ Lower cutoff1or5Hz ■ Upper cutoff50-2000 Hz adjustable
Measuring Range
Range	Continuously adjustable with the configuration software
Smallest Range	0-400mV
Largest Range	0-8000mV
Sensor Power Supply	■0-8000 mV ■Separate buffered sensor supply ■Galvanically separated from all system voltages and system supply voltages ■ Open and short circuit proof
Nominal Voltage	-26.7V
Available Current	Nominal 20mA,maximum35mA
Front Panel Outputs
Green LED's	Two LED's,indicates channel OKseparately foreach channel
Red LED'	Two LED's,indicates alert and danger separately for each channel
Front Panel Buffered Outputs	■Two,identical to transducer sensor inputs ±10V,>100kQ load, freq.range0.1-5 □ kHz(-3dB)0-16kHz-3dB±20%
Mini DIN Configuration Socket	Module interface connection for configuration and parameter and status monitoring ■RS-232
Handle	Easily remove card and provide plate for module and sensor identification
Analysis
Measurement Modes	Hot configurable ■Zero to peak ■ Peak to peak ■ Independent dual-channel orcombined dual-channel modes Smax(combined)(DIN45670A) ■ Smax peak to peak(combined) (DIN45670B,VDI 2059) SmaxO to peak(combined) (VDI 2059) True Speak to peakY.X (independent) ■(API670)
Analysis Parameters	VMx,1-10xand phase angle of same Available via ModBus TCP/IPoutput
