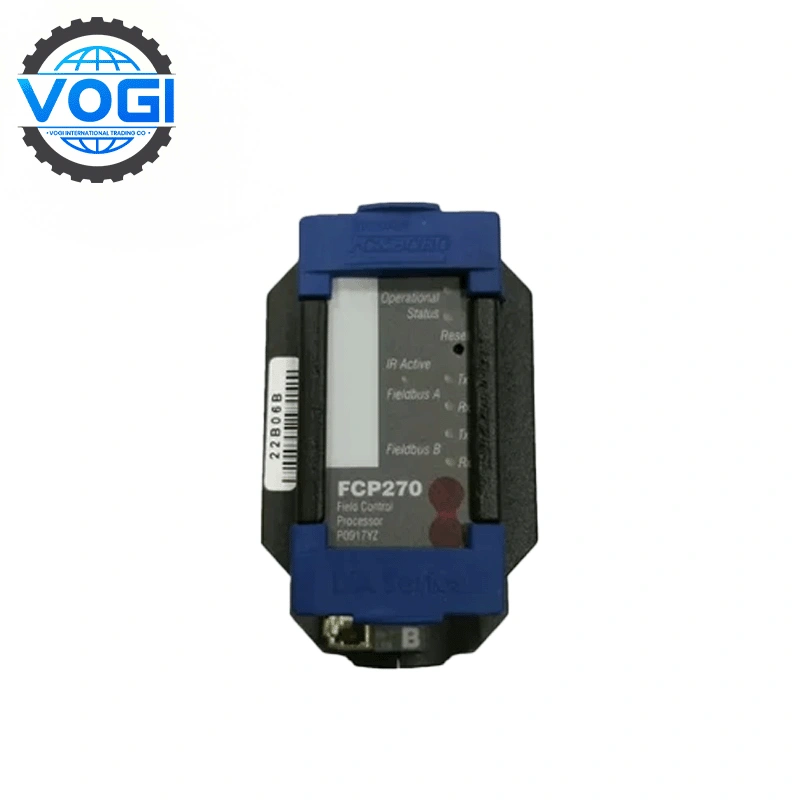

Foxboro FCP270 P0917YZ Control Processor

Brand	Foxboro
Module Number	FCP270
Ordering Number	P0917YZ
Unit Price	$700
Country Of Origin	United States
Weight	0.74KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Foxboro FCP270 is a control processor belonging to the I/A Series system. It is designed for mission-critical distributed control, offering real-time monitoring, process control, alarm handling, and redundancy via the MESH fiber-optic network.

Add to Cart

Submit Inquiry

Description

Payment&Security

Datasheet

Description

Main Power Input: 24VDC ±15%

Backup Battery: 12V / 7Ah sealed lead-acid battery

Communication Interface: 100 Mbps Fiber Ethernet (MESH network)

Programmable Inputs: Supports up to 16 digital dry contact signals via FBMs

Relay Outputs: Up to 8 relay output channels via compatible modules

Max Supported Devices: Up to 256 I/O points through FBM expansion

Operating Temperature: –40°C to +85°C

Humidity Range: ≤95% RH

Display & Operation: Status LEDs, diagnostic interface via DCS workstation

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet

DataSheet Download

Compared with alternative models/ Features

Product/Parameter	FCP270	FCP280
CPU Speed	433 MHz	Dual-core 800 MHz
Redundancy Support	Optional dual-module	Built-in enhanced redundancy
I/O Expansion	Up to 256 points	Up to 512 points
Suitable Application	General process control	High-availability systems
