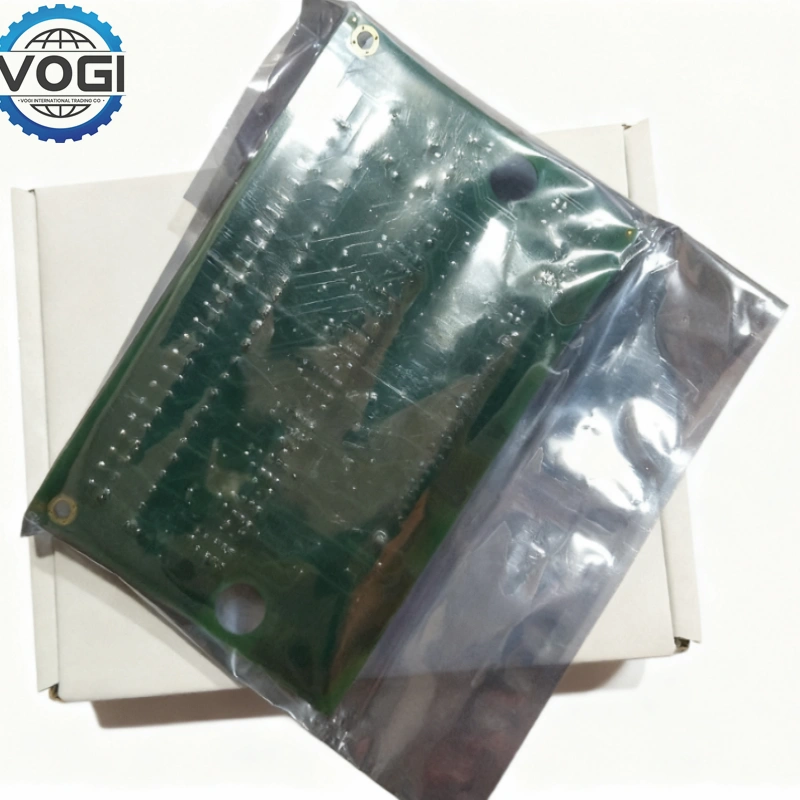

GE IS200STAIH2A Simplex Analog Input Terminal Board

GE IS200STAIH2A Simplex Analog Input Terminal Board

Brand	GE
Module Number	IS200STAIH2A
Unit Price	$3500
Country Of Origin	USA
Weight	0.91KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	7

The IS200STAIH2A is an analog input module manufactured by GE, primarily used for collecting analog signals in industrial control systems. It typically features multi-channel input capabilities, receiving various analog signals such as temperature, pressure, and flow, converting them into digital signals for transmission to the control system, enabling real-time monitoring and control of industrial process parameters. It is suitable for automation control scenarios in power, chemical, and manufacturing industries.

Add to Cart

Submit Inquiry

Technical specifications

Payment&Security

Technical specifications

Parameter Category	Specification Detail
Product Name	GE IS200STAIH2A Simplex Analog Input
Signal Type	Thermocouple (J/K/T type), RTD (Pt100/Pt1000), 4-20mA
Number of Channels	Provides 16 single-ended analog input channels (or 8 differential inputs)
Resolution	16-bit ADC with a minimum resolution of 0.0015% FSR (full scale)
Sampling rate	Up to 1kS/s (kilosamples/second), supports multi-channel polling
Isolation Level	Channel-to-channel isolation voltage 1500V AC/DC, common mode rejection ratio ≥120dB
Accuracy	Typical accuracy: ±0.05% FSR (at 25°C) Temperature drift: ±0.003% FSR/°C
Power Requirements	Working voltage 24V DC ±10%, power consumption ≤5W
Protocol support	Supports Modbus RTU/TCP and GE Mark VIe proprietary protocols

Payment&Security

Account Number 88800006406771

Account name Vogi International Trading Co., Limited

(* If the account name exceeds the available space, please continue in the address field.)

SWITF/BIC Code WIHBHKHHXXX

Bank name OCBC Hong Kong Branch

Bank address 161 Queen's Road Central, Central, Hong Kong

Country/Region Hong Kong (China)

Account type Business Account

Bank code 035

Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment

Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]

Core Function

Multi-channel signal acquisition
Supports 4-16 analog inputs (refer to the manual for the specific number of channels), allowing simultaneous reception of temperature, pressure, and other sensor signals.
Compatible with thermocouples (TC), RTDs (Pt100/Pt1000), and 4-20mA current signal inputs.
High-precision conversion
Utilizes a 24-bit ADC with a typical accuracy of ±0.05% full scale.
Built-in cold-junction compensation circuit (for thermocouple signals).
Industrial-grade protection
IEC 61000-6-2/4 electromagnetic compatibility certification
Supports a wide operating temperature range of -40°C to +85°C.
Intelligent diagnostics
Provides disconnection detection, over-range alarm, and self-calibration.
LED status indicator provides real-time feedback on module health.

Typical Application Scenarios

Power Industry
Gas Turbine/Steam Turbine Bearing Temperature Monitoring
Generator Winding Overheat Protection System
Transformer Oil Temperature Distributed Monitoring Network
Petrochemical Industry
Reactor Multi-Point Temperature Gradient Monitoring
Pipeline Pressure Transmitter Redundant Signal Acquisition
Storage Tank Level Gauge Safety Interlock Control
Smart Manufacturing
Injection Molding Machine Mold Temperature Closed-Loop Control
Heat Treatment Furnace Process Curve Recording
Robot Joint Temperature Protection System
