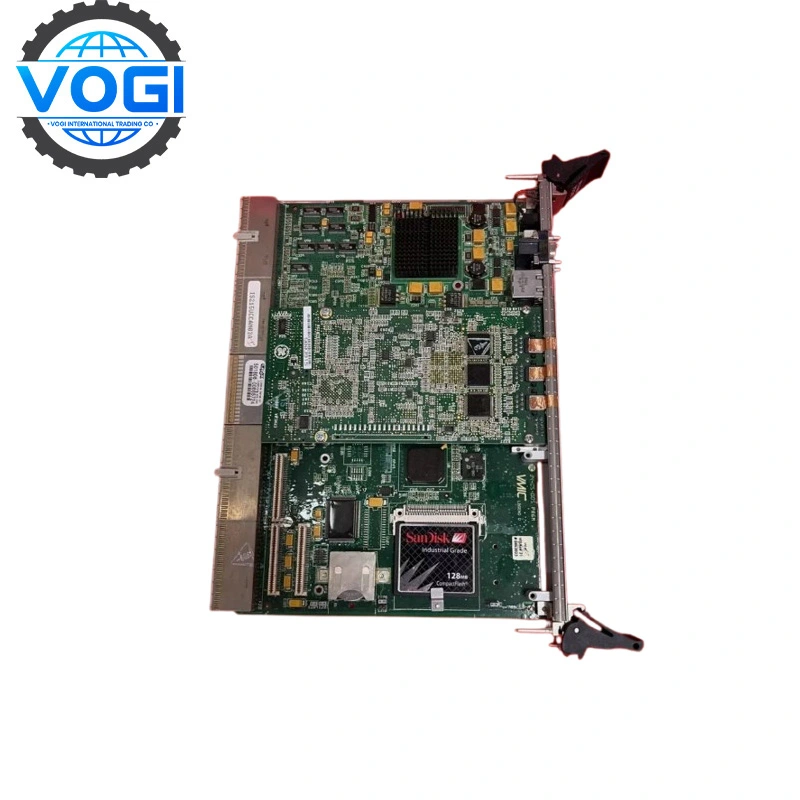

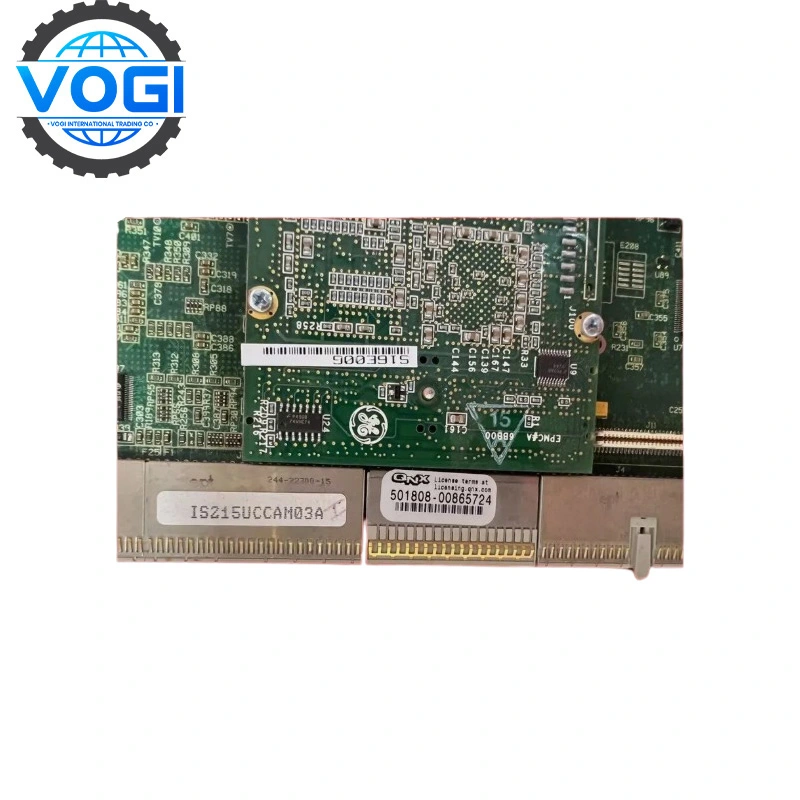

GE IS215UCCAM03A Key features
Dual Ethernet ports support separate UDH and I/O network traffic
Embedded QNX Neutrino OS ensures real-time and reliable control
Integrated watchdog timer and PMC slots allow fail-safe expansions
Front-panel LEDs for UDH status, diagnostics, power, and Ethernet activity
CompactPCI form factor ensures seamless integration into Mark VIe racks
INSTALLATION:
Shut down the CompactPCI rack power before installation.
Slide UCCAM03A into the left-most CPCI slot for system controller.
Fasten module with front panel screws or guide rails.
Power up rack and confirm LEDs for POWER, UDH, EGD, ARCNET, and STATUS are active.
Power down the CompactPCI rack before insertion.
Slide CGE IS215UCCAM03A into the designated slot, aligning with backplane connectors.
Secure with front panel locking screws or cage nuts.
Power up the rack, verify module LEDs, and confirm Ethernet communication via ToolboxST diagnostics.
Typical cooperation cases
Global Power Plants
Deployed for redundant communication between Mark VIe racks and plant DCS via Ethernet/ARCNET, ensuring high availability.
Gas Turbine OEMs
Provides network flexibility for both ARCNET legacy and IP integration during commissioning/upgrades.
Industrial Automation in Asia
Used in remote compressor or boiler control schemes with mixed network protocols, enhancing control flexibility.
Oil & Gas Skid Systems
Installed in compact CPCI racks to manage real-time turbine control and backup ARCNET paths under harsh conditions.
