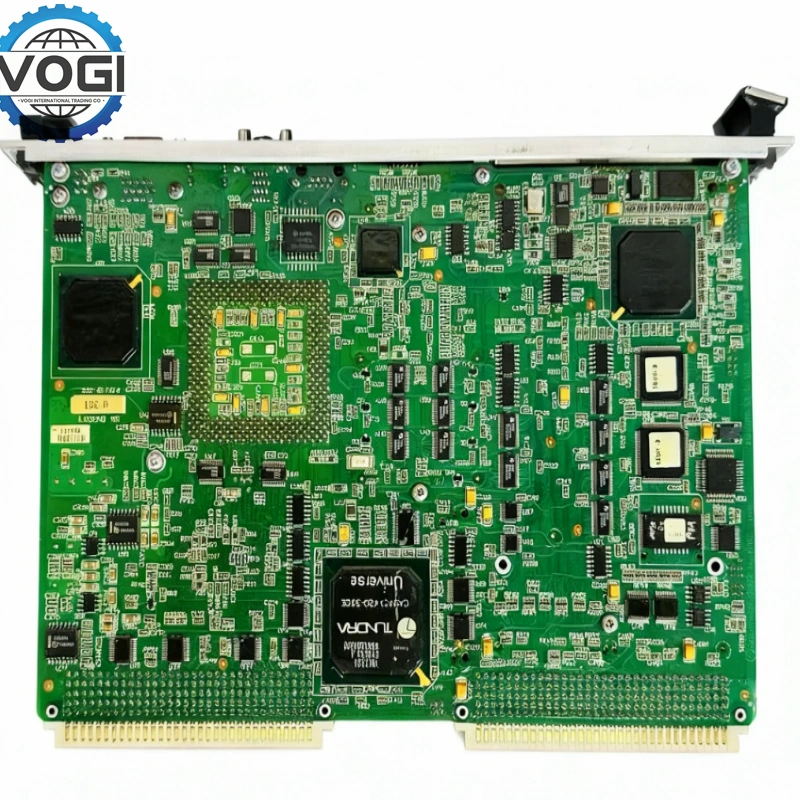

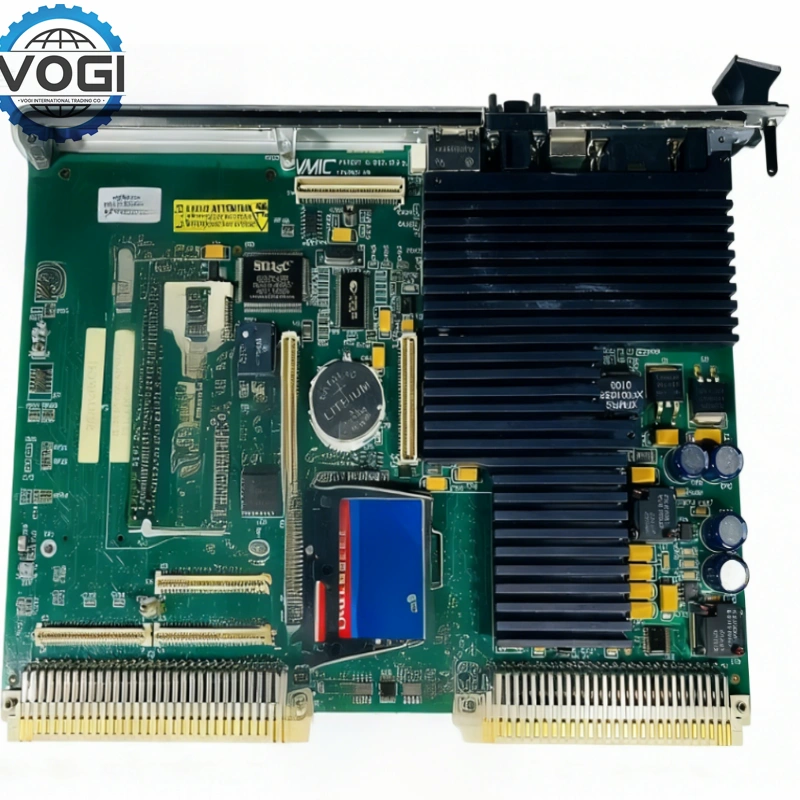

GE IS215UCVEH2A Core Function
- Real-time Control: Serving as a general-purpose controller and I/O expander, it is responsible for real-time signal acquisition, logic operations, protection control, and communication with higher-level systems. For example, in gas turbine control, it can implement closed-loop combustion chamber temperature control and overspeed protection.
- Signal Processing: It features a variety of signal interfaces, including analog input (such as 16 channels of ±10V or 4-20mA inputs, 16-bit resolution, and ±0.1% accuracy), digital I/O (32 channels, expandable to 128 points), and specialized signal processing such as speed monitoring (magnetic resistance sensor input, 0-20kHz), thermocouples (K/J type), and vibration signals (ICP sensors).
- Communications: Compatible with Mark VI racks via the standard VME64 backplane bus, with a bandwidth of up to 80MB/s. It also features two RS-232/485 serial ports with a default baud rate of 19.2 kbps for use as an HMI or debug terminal. A daughter card can also be used to support 10/100 Mbps Ethernet and protocols such as SRTP and Modbus TCP.
- Software Support: Real-time operating systems such as QNX or VxWorks 5.5 are commonly used, along with the ToolboxST programming tool for IEC 61131-3 logic programming.
Operating Principle
- Hardware: The IS215UCVEH2A uses a high-performance microprocessor, such as the PowerPC 603e or Freescale MPC8xx series, with a clock speed of 200-300MHz. It is equipped with 16MB of SRAM for real-time tasks and 32MB of Flash memory for storing firmware and configuration parameters. During system operation, the microprocessor collects data through various interfaces, processes it, and transmits the results through corresponding output interfaces to control external devices or provide status feedback based on input signals and preset control logic.
- Software: A real-time operating system ensures that the system can respond to various events and signals within a specified timeframe. The operating system manages task scheduling, memory allocation, and interrupt handling, enabling multiple tasks to execute concurrently and ensuring real-time and reliable control. Control logic and algorithms programmed by the user using programming tools are stored as code in Flash memory and loaded into memory at runtime for execution by the microprocessor, achieving precise control of the gas or steam turbine.
