Meggitt IQS450 204-450-000-001 Signal Conditioner

Brand Meggitt
Module Number IQS450
Ordering Number 204-450-000-001
204-450-000-002
Price $1500
Weight 0.20kg
Country Of Origin Switzerland
Certificate C/O from the Chamber of Commerce
C/Q from the manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

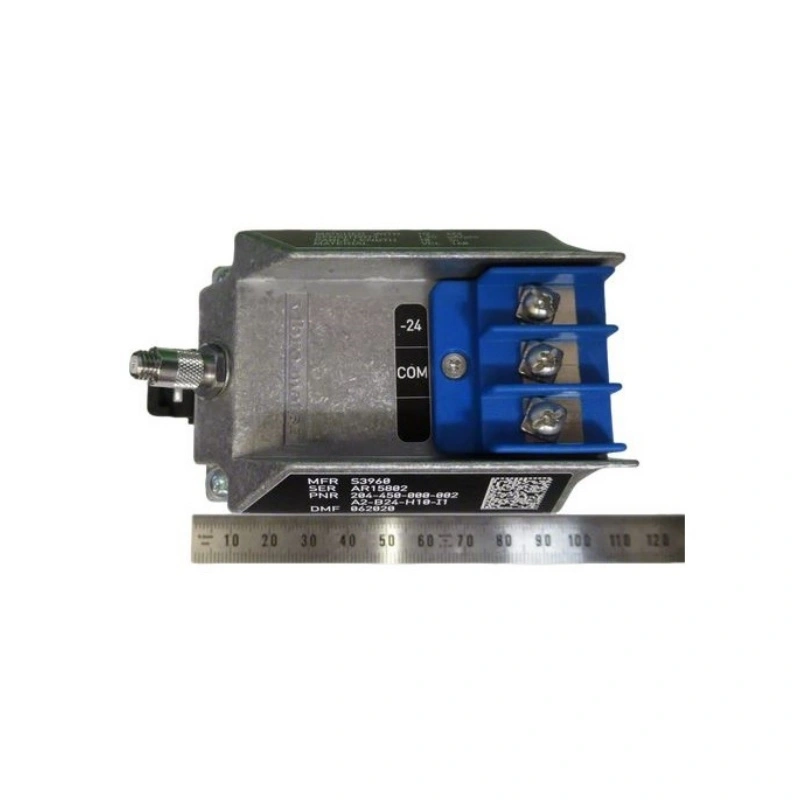

Meggitt IQS450 signal conditioner

System collaboration: TQ442, EA402 and IQS450 together form a proximity measurement system, with functions that work together and features that have different focuses.

Output:

Voltage output (3-wire): -1.6V (minimum gap) to -17.6V (maximum gap), dynamic range 16V, impedance 500Ω, short-circuit current 45mA; current output (2-wire): -15.5mA (minimum gap) to -20.5mA (maximum gap), dynamic range 5mA. Output capacitance 1nF, inductance 100µH.

Power supply:

Voltage -20 to -32V; current (3-wire) -13mA±1mA (maximum -25mA), (2-wire) -15.5 to -20.5mA. Input capacitance and inductance are both 1nF and 100µH.

Environmental:

Operating temperature -35 to +85°C, storage -40 to +85°C; humidity 95% non-condensing, 100% condensing (not immersed); protection class IP40; vibration 10 - 55Hz, 2g peak; shock 15g peak (11ms half sine wave).

Physical parameters: injection molded aluminum; M4 screw mounting; dimensions see document page 12.

Electrical connection:

Input is self-locking micro coaxial female; output and power supply are 3 screw terminals (wire cross-section max. 2.5mm²).

Weight: standard approx. 140g, Ex version approx. 220g.

Adapt to DIN rail: bracket TSH 35, adapt to TH 35 - 7.5 and TH 35 - 15 DIN rails when equipped with MA130 adapter (I1 option).

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Vibration IQS450

Details

Meggitt IQS450 signal conditioner

Old Version

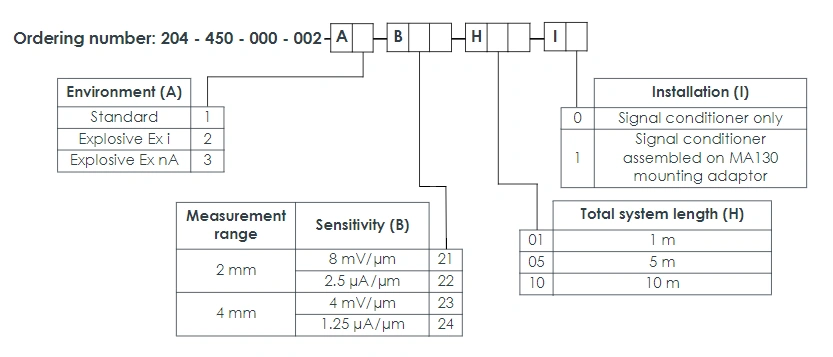

204-450-000-001 A1-B31-H05-I0

New Version

204-450-000-002 A1-B21-H05-I0



Output

Voltage output (3 - wire): from -1.6V to -17.6V, with a dynamic range of 16V;

Current output (2 - wire): from -15.5mA to -20.5mA, with a dynamic range of 5mA.

Power Supply

-20V to -32V.

Environment

Operating temperature -35°C to +85°C

Physical Characteristics

Injection molded aluminum, M4 mount, standard 140g/Ex version 220g

Electrical Connections

Input: self-locking miniature coaxial female connector;

Output and power supply: screw terminals (≤2.5mm²), compatible with TSH 35 DIN rail

DIN Rail Compatibility

TSH 35 holder, compatible with TH 35 - 7.5 and TH 35 - 15 rails.

System collaboration

TQ442, EA402 and IQS450 together form a proximity measurement system, with functions that work together and features that have different focuses.

​Component​​Composition & Collaboration​​Main Function​​Key Features​​Operating Temp​​Protection​

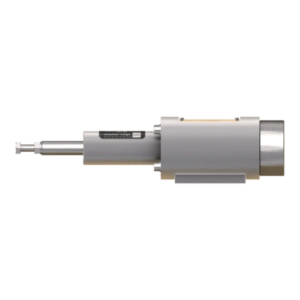

TQ442Non-contact sensor with built-in coil for detecting distance changesDistance sensing & signal generationRight-angle installation, temperature compensation, customizable cable lengths-40℃ ~ +180℃-
IQS450Signal conditioner providing high-frequency drive to TQ442, converting distance changes to voltage/currentSignal processing & output conversionMultiple output modes (voltage/current), adjustable parameters-35℃ ~ +85℃IP40
EA402Optional extension cable for expanding system range and ensuring stable transmissionSystem extension & signal transmissionMultiple length options, flexible compatibility--



Vibration IQS450 1
