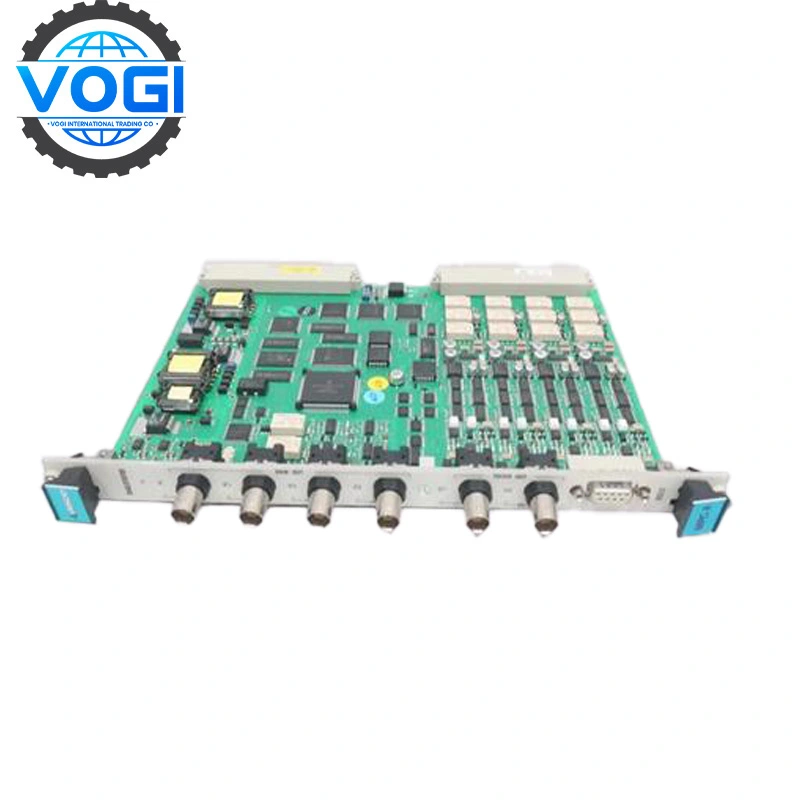

MPC4 200-510-071-113 machinery protection card

Module Number	MPC4
Order Number	200-510-071-113 200-510-078-115
Unit Price	$1500
Country Of Origin	Switzerland
Weight	0.4KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

MPC4 200-510-071-113 is Vibro-Meter’s core mechanical protection module, designed for high-reliability industrial equipment, to prevent mechanical failures through multi-channel signal processing.

Add to Cart

Submit Inquiry

Description

Payment&Security

DataSheet Download

Description

Technical specifications

Parameter	Specification	Notes
Model NO.	MPC4	Standard variant
Input Channels	4× dynamic signal + 2× tachometer (speed)	Fully programmable
Signal Types Accepted	Acceleration, Velocity, Displacement (Proximity)	Supports ICP accelerometers
Processing Capability	RMS, Mean Value, True Peak, True Peak-to-Peak	Order tracking (amplitude/phase)
Filter Types	Programmable Broad/Narrow-Band	Digital filtering
Operating Temperature	−25°C to 65°C (−13°F to 149°F)	Non-condensing environment
Storage Temperature	−40°C to 85°C (−40°F to 185°F)
Humidity Range	0–90% (Operating), 0–95% (Storage)	Non-condensing
Dimensions	262mm × 20mm × 187mm	Compact rack-mountable design
Certifications	CE, ISO	SIL version available (safety)
Power Supply Integration	Supports Vibro-Meter front-ends (e.g., ICP)	Live insertion/removal capability
Alarm Outputs	Programmable Alert/Danger levels	Adaptive to speed/external factors

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Key features

Multi-channel real-time processing: DSP technology is used to synchronously process 4 dynamic signals + 2 speed signals, supporting the measurement of 10+ physical parameters such as vibration eccentricity, thrust position, etc.

Intelligent early warning mechanism: Adaptive alarm threshold, which can be dynamically adjusted based on speed to reduce false alarms; alarm delay hysteresis lock is programmable.

Triple version adaptation: Standard version: basic monitoring function; Separation circuit version: independent isolation of channels, stronger anti-interference; Safety version: functional safety certified, suitable for SIL2/SIL3 safety systems.

Convenient diagnostic interface: The front panel BNC interface supports raw signal analysis, and the 7 LED indicators display channel status and hardware faults in real time.
