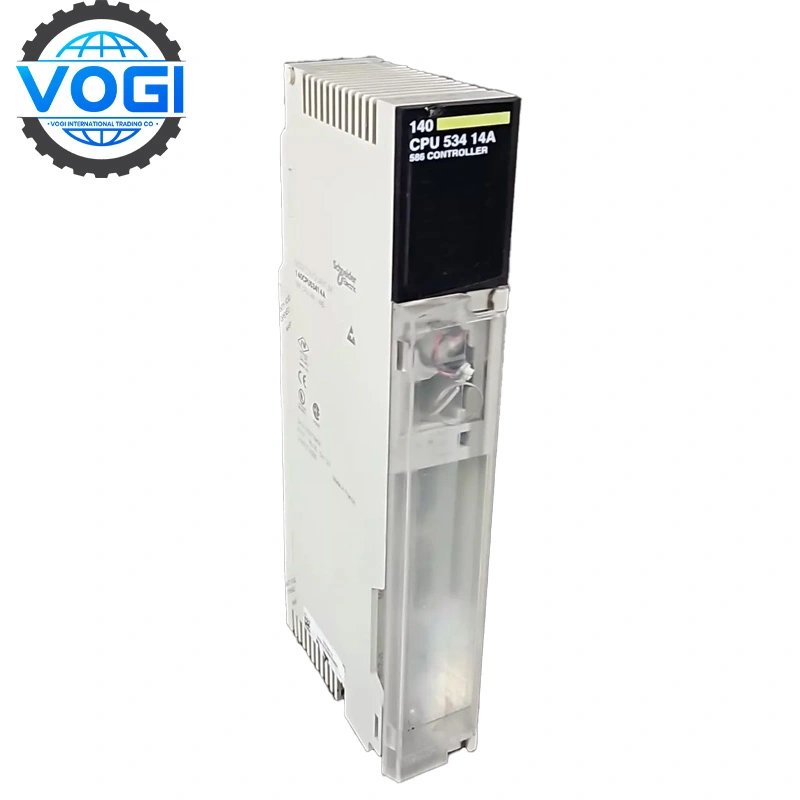

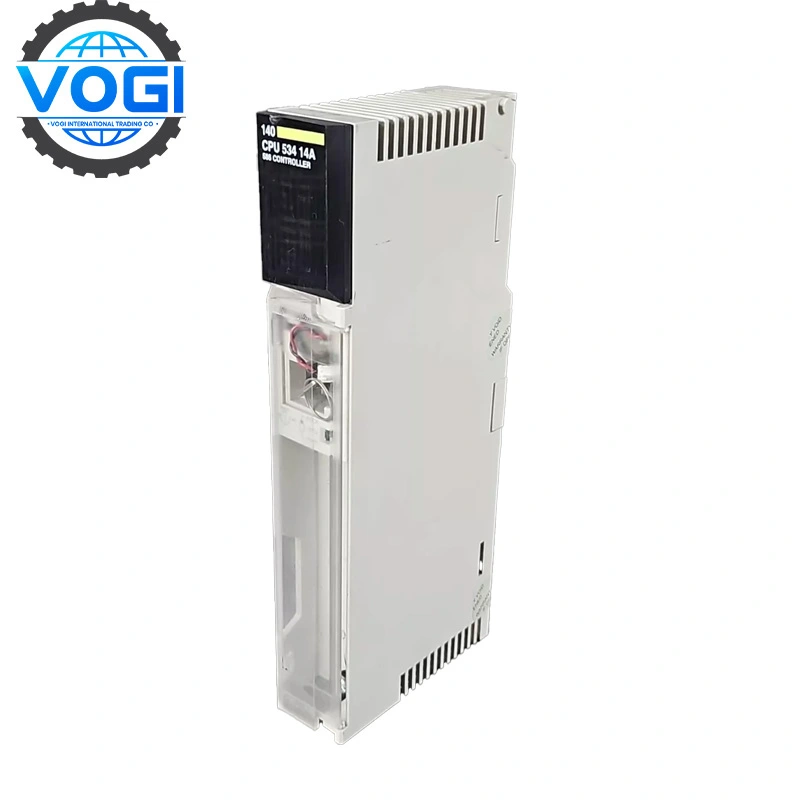

Schneider 140CPU53414A QUANTUM 534 PLC CONTROLLE

Brand	Schneider
Module Number	140CPU53414A
Price	$ 500
Weight	0.7KG
Country Of Origin	France
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Details

Payment & Security

DataSheet Download

Description

Schneider 140CPU53414ATechnical specifications

Parameter	140CPU53414A Specifications
Product Series	Modicon Quantum
CPU Type	Central Processing Unit (with Real-Time Clock)
User Logic Memory	544 KB
System Data Memory	128 KB
Execution Speed (Boolean)	1K Boolean instructions ≈ 0.3 ms
Power Requirements	5 VDC @ 1140 mA
Communication Interface	1 × Modbus Serial Port (RS232/RS485 selectable)
I/O Task Management	Supports periodic, interrupt, and background tasks
Mounting Method	Installed in Quantum main rack
Internal Battery	Used to maintain memory and clock
Expandable Memory	Yes (Flash Memory Cartridge)
Supported Protocols	Modbus (ASCII/RTU), Modbus Plus (optional module), TCP/IP (via expansion module)
Programming/Configuration Software	Unity Pro / EcoStruxure Control Expert
Compatibility	Fully compatible with Quantum I/O and network modules

Details

Purpose:

Schneider 140CPU53414A is a medium-to-high performance central processing unit module in Schneider Electric's Modicon Quantum series PLC. It is mainly used to control and monitor industrial automation processes, and is especially suitable for medium and large process control systems.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Schneider 140CPU53414AKey features

High-performance processor: Equipped with a 32-bit PowerPC processor to meet the real-time requirements of complex processes.

Flexible I/O expansion capability: Supports Quantum local I/O and remote I/O expansion through Quantum bus or Ethernet; compatible with all I/O modules of the Quantum series.

High reliability design: Wide operating temperature range, adaptable to harsh industrial environments; supports "watchdog" function (program running monitoring) to prevent system crashes caused by program runaway.

Programming friendliness: Compatible with Schneider Unity Pro programming software; provides a rich function library to shorten the development cycle.

Typical cooperation cases

Chemical industry: Saudi Aramco refinery catalytic cracking unit Schneider 140CPU53414A cooperates with 140ACI03000 analog input module to control reactor temperature/pressure interlock.

Logistics and warehousing: UPS automated sorting center in the United States Schneider 140CPU53414A connects to Schneider 140NOE77101 Ethernet module via EtherNet/IP, receives Ethernet data packets from LiDAR to perform path planning and obstacle avoidance control for AGV.
