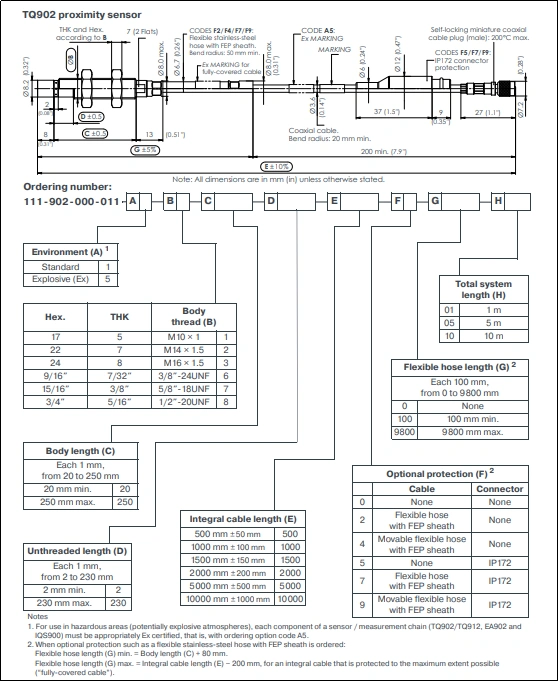

TQ902 111-902-000-011 Proximity Sensor

Module Number	TQ902
Order Number	111-902-000-011
Unit Price	$1500
Country Of Origin	Switzerland
Weight	0.65KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

TQ902 111-902-000-011v is a non-contact displacement sensor based on the eddy current principle. Its core function is to accurately monitor the shaft vibration and axial position of rotating machinery.

Add to Cart

Submit Inquiry

Description

Payment&Security

Datasheet Download

Description

TQ902 Key parameters

Parameter	Specification
Measurement Principle	Eddy-current (Non-contact)
Sensitivity	4 mV/µm (Standard, with IQS900)
Linear Range	2 mm (Standard) / 4 mm (Optional)
Frequency Response	DC to 20 kHz (-3 dB)
Operating Temperature	-40°C to +180°C (Continuous)
Survival Temperature	+220°C (Max 2 hours)
Protection Rating	IP68 (Sensor Tip)
Pressure Resistance	6 bar (Tip-to-Body)
Tip Material	PPS (Polyphenylene Sulfide)
Body Material	316L Stainless Steel
Integral Cable	Ø3.6 mm FEP Coaxial, 70 Ω Impedance
Connector Type	Self-locking Miniature Coaxial
Hazardous Certification	ATEX/IECEx Ex ia IIC T6 Gb (Option)

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

Model Comparison And Replacement Model

Model Comparison: TQ902 VS. TQ912

Feature	TQ902	TQ912
Mounting Type	Direct-facing probe (exposed)	Reverse-mount (requires housing penetration)
Application Scenario	Open bearing housings (e.g. steam turbines)	Space-constrained areas (e.g. marine thrusters)
Maintenance Accessibility	Direct target access, easy calibration	Requires housing disassembly for gap adjustment

Replacement Model: TQ902 VS. TQ412

Feature	TQ902	TQ4xx Series(e.g.TQ402)
Temperature Performance	180°C continuous rating (40°C improvement)	140°C max rating, prone to drift at high temps
Signal Chain Compatibility	Direct pairing with IQS900 (SIL 2 diagnostics)	Requires IQS45x, no diagnostic capability
Interchangeability	Plug-and-play compatible with TQ4xx systems	Requires complete system retrofit
