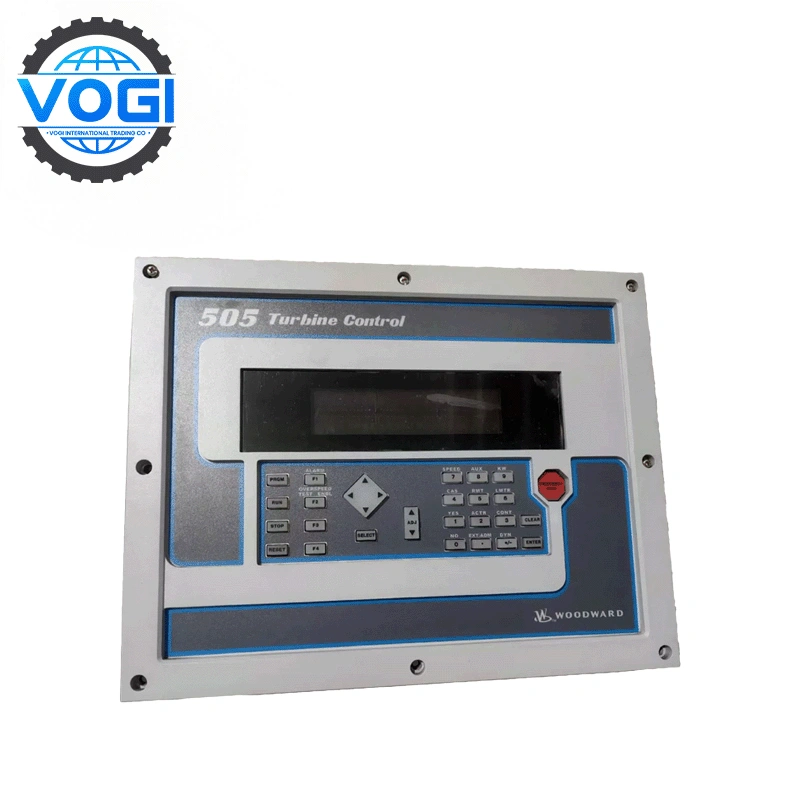

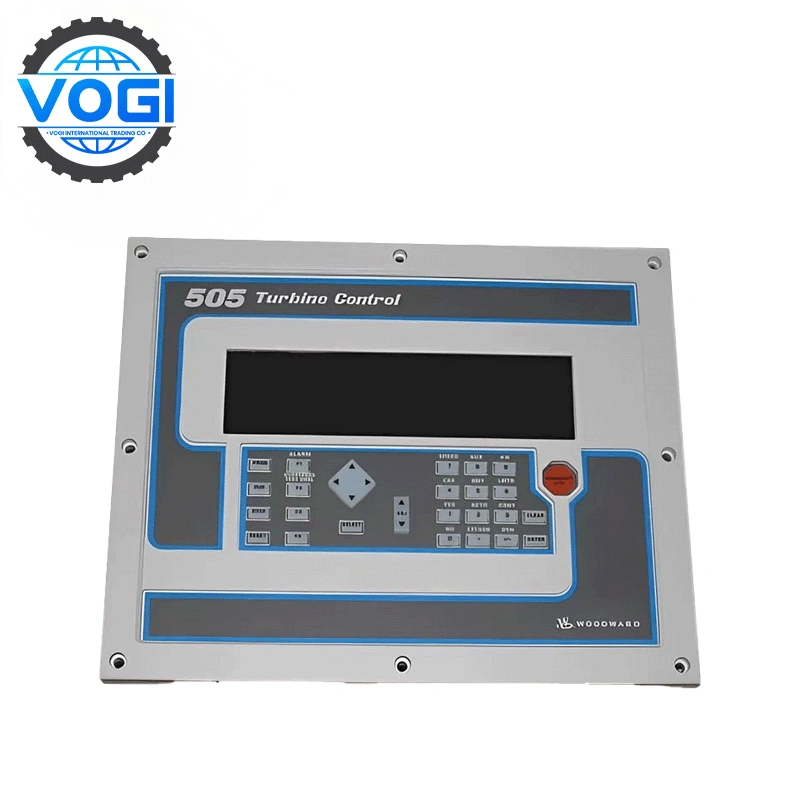

Woodward 9907-167 505E Digital Governor

Brand Woodward
Module Number 9907-167
Price $1500
Weight 4.5kg
Country Of Origin United States
Certificate Certificate: C/O from the Chamber of Commerce
C/Q from the manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

Woodward 9907-167 Key parameters

Core Architecture:

Equipped with a 32-bit microprocessor and embedded memory (128 KB RAM, 512 KB Flash) for real-time processing and logic execution in steam turbine control applications.

Input voltage range: 18–32 Vdc, compatible with industrial power systems requiring stable DC supply.

I/O Configuration:

16 digital inputs and outputs for monitoring turbine sensors and triggering safety protocols, paired with 8 analog inputs (0–10 VDC/4–20 mA) and 4 analog outputs for precise actuator control.

Includes 2 actuator outputs (HP/LP valves), 8 relay outputs, and 6 programmable current outputs (4–20 mA) to manage steam valve positioning and system interlocks.

Environmental & Durability:

Operates in -13°C to +65°C (ambient) or up to +55°C with an optional NEMA 4X/IP56 enclosure for dust, moisture, and corrosion resistance.

Compliant with CE, UL, and cUL certifications, ensuring reliability in harsh industrial environments.

Control & Communication:

Integrates Modbus and Ethernet TCP/IP protocols for seamless connectivity with HMIs, SCADA, or plant-wide DCS systems.

Features PID-to-valve ratio auto-calculation and bumpless control mode transfers to minimize process deviations during load changes.

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Comparison of Woodward 9907-165 and Woodward 9907-167

Category

Woodward 9907-165

Woodward 9907-167

Core Design

Microprocessor-based governor for single extraction/admission steam turbines .

32-bit microprocessor with enhanced processing for complex turbine automation .

Shared Features

- 18–32 Vdc input- Split-stage actuator support- NEMA 4X/IP56 enclosure option .

- Compatible input voltage and rugged enclosure- RS-232/422/485 and Ethernet TCP/IP protocols .

I/O Configuration

16 contact inputs (4 fixed + 12 programmable), 6 analog inputs (4–20 mA) .

8 relay outputs, 6 programmable current outputs (4–20 mA), 2 actuator channels .

Control Features

- PID auto-calculation- Menu-driven software for field adjustments .

- Critical speed avoidance- Bumpless control mode transfers- Emergency stop protocols .

Communication

Basic protocols (RS-485/CAN) for HMIs and SCADA integration .

Advanced Modbus and Ethernet TCP/IP for DCS/plant-wide systems .

Environmental Specs

Operates at -20°C to +60°C; humidity-tested for reliability .

Wider range: -25°C to +65°C with NEMA 4X enclosure; tested for 95% RH .

Operational Use

Ideal for mid-complexity turbines driving pumps, compressors, or industrial fans .

Suited for high-precision environments (e.g., power plants, grid-synchronized systems) .

Software

Compatible with Woodward’s Hawk application for SIMULINK-based logic .

Supports 505E-series software for standalone or DCS-integrated control .

9907-167 1
