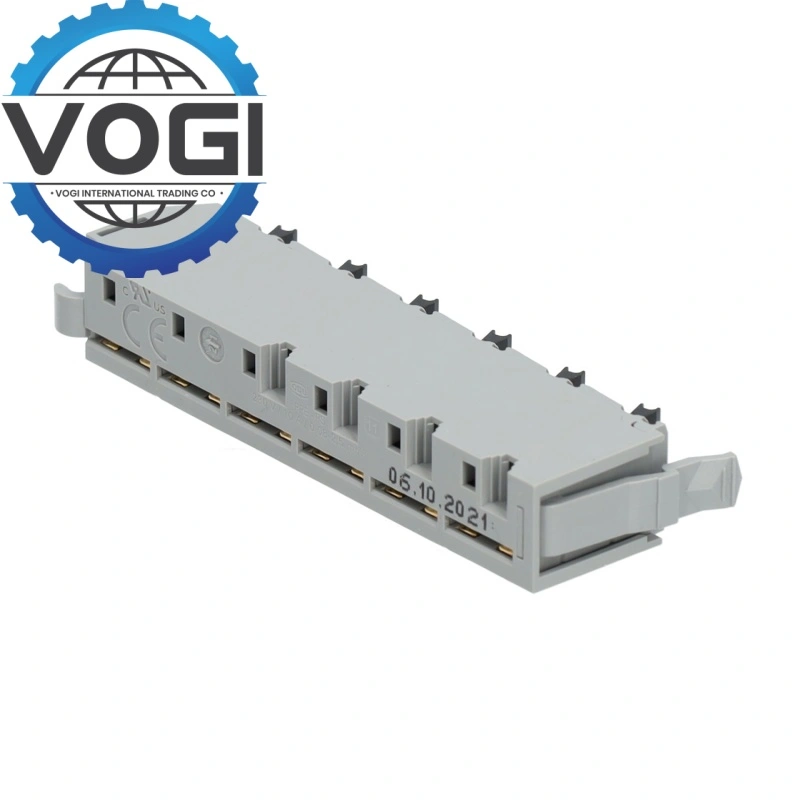

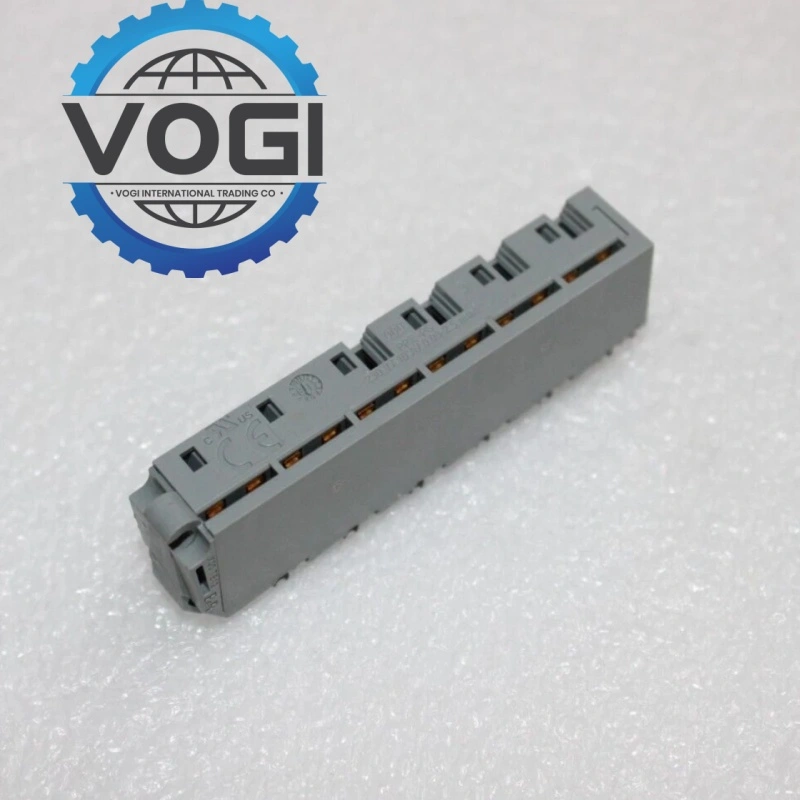

X20TB12 12-Pin I/O Terminal Block

Brand	B&R
Model Number	X20TB12
Unit Price	$100
Country Of Origin	Austria
Weight	0.1KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	13

X20TB12 is a 12-pin terminal block manufactured by B&R Industrial Automation. It is primarily used for connecting 24 VDC modules in the X20 system and features tool-free wiring via plug-in technology.

Add to Cart

Submit Inquiry

Description

Payment & Security

Datasheet Download

Description

X20TB12 Product Basic Information

Item	Description
Product Model	X20TB12
Product Type	Terminal Block
Number of Pins	12-pin
Connection Technology	Push-in technology, supports tool-free wiring, cable release via lever
Connection Cross-Section	Solid wire: 0.08 - 2.50 mm²; Fine-stranded wire: 0.25 - 2.50 mm²; With wire-end ferrules: 0.25 - 1.50 mm²
Electrical Parameters	Rated Voltage: 240 VAC / 48 VDC; Rated Current: 10 A / Contact
Strip Length	7-9 mm

Payment & Security

Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]

Datasheet Download

DataSheet Download

X20TB12 Applications and Function

The X20TB12 is part of B&R's X20 automation system, a highly scalable control system platform.

Core Function:

It is responsible for signal connection and transmission within the system, providing a reliable interface between field devices such as sensors and actuators and controllers (such as PLCs).

Industry Applications:

Based on the characteristics of the X20 system, the X20TB12 terminal block is widely applicable in industrial automation scenarios requiring high-density, high-reliability wiring, such as:

Packaging machinery

Robotics

CNC machine tools

System Advantages:

The X20 system's modular design allows for pre-wiring outside the system and supports hot-swappable electrical modules, greatly improving installation and maintenance efficiency.

Comparison of Similar Products

Since search results lack information on terminal blocks from other brands that directly compete with the X20TB12, this comparison focuses on similar models within the B&R X20 system to provide an understanding of the characteristics of different options:

Product Model:	X20TB12	X20TB06	X20TB1F
Number of Pins:	12-pin	6-pin	6-pin
Terminal Block Type:	Push-in terminal	Push-in terminal	Push-in terminal
Key Features:	12-pin standard terminal block	low pin count, suitable for modules with limited point requirements	higher pin count, suitable for use with digital inputs
