一．Yokogawa AAI543-H00 Details

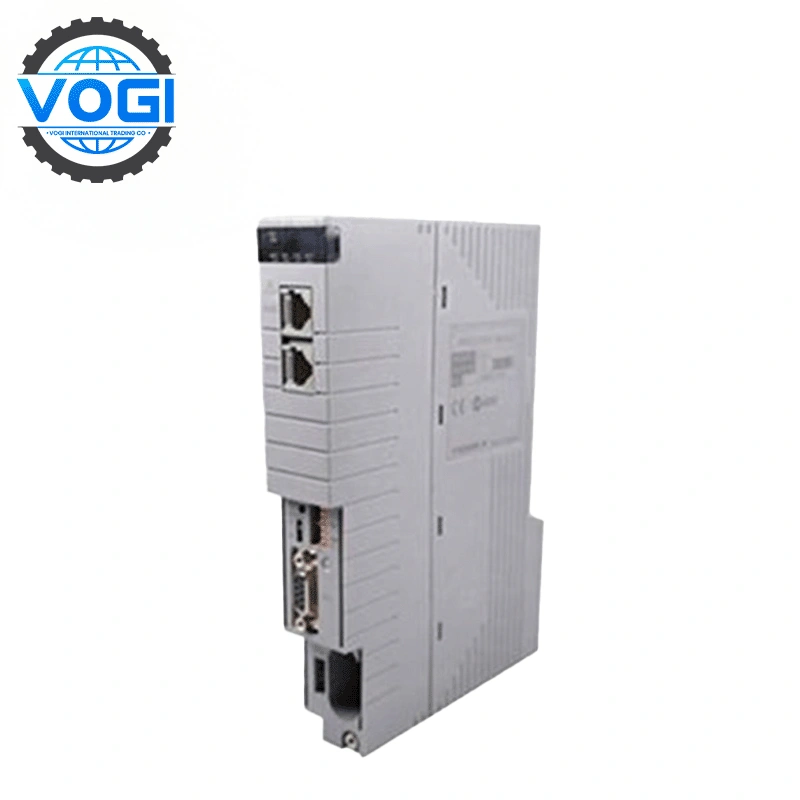

Yokogawa AAI543-H00 Analog Output Module
| Brand | Yokogawa |
| Module Number | AAI543-H00 |
| Price | $300 |
| Weight | 0.4kg |
| Country Of Origin | Japan |
| Certificate |
C/O from the Chamber of Commerce C/Q from the manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 3 |

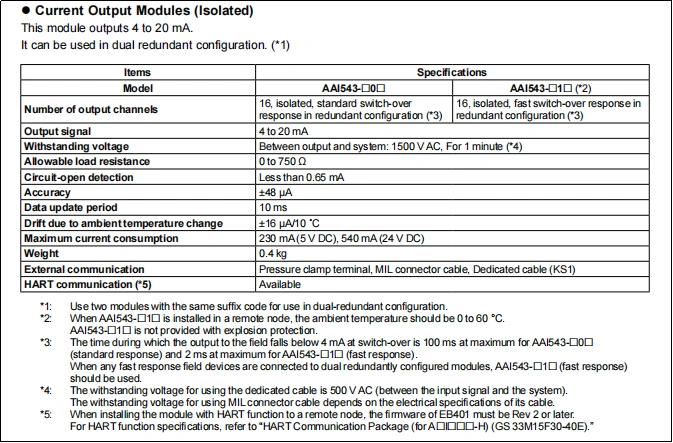

Yokogawa AAI543-H00 Key parameters
Signal Handling & Channel Architecture
Output Type: 16 isolated channels for 4–20 mA DC current signals, configurable for dual-redundant operation with fault-tolerant switching (standard response: 100 ms, fast response: 2 ms) .
Load Tolerance: Supports 0–750 Ω load resistance per channel, optimized for driving actuators like valves and pumps in industrial loops .
Circuit Protection: Features open-circuit detection (threshold: <0.65 mA) and transient overload tolerance up to 24 mA for spike resilience .
Precision & Performance
Accuracy: ±48 μA (±0.12% FS) under standard conditions (25°C), with temperature drift limited to ±16 μA per 10°C change for stable long-term operation .
Conversion Speed: 10 ms data update period across all channels, enabling real-time adjustments in fast-paced control systems .
Output Response: 40 ms step-response time for voltage-output variants (e.g., AAV542), ensuring minimal lag in dynamic environments .
