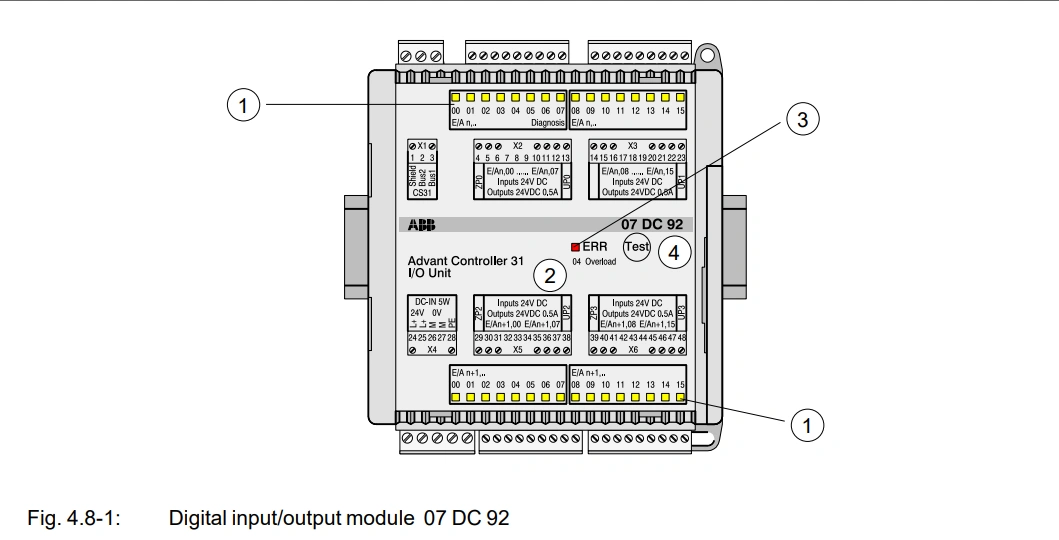

ABB 07DC92 GJR5252200R0101 Digital Input/output Module

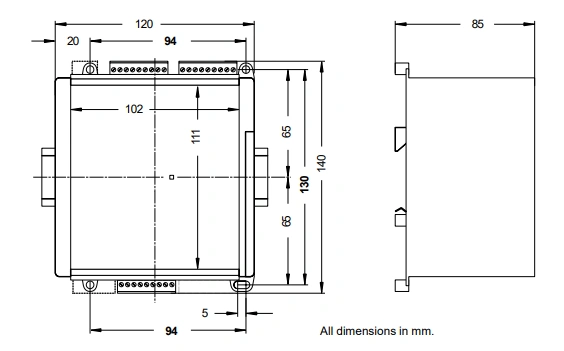

ABB 07DC92Technical specifications​

Rated supply voltage :24 V DC

Rated signal voltage for inputs and outputs: 24 V DC

Max. current consumption without load: 0.15 A

Max. rated load for supply terminals: 4.0 A

Max. power dissipation in module (outputs without load): 5 W

Max. power dissipation in module (outputs under load) :10 W

Protection against reversed polarity of power connection;

power supply max:2.5 mm 2

CS31 system bus max:2.5 mm 2

signal terminals max: 1.5 mm 2

supply for I/O groups max:1.5 mm 2

Number of configurable inputs/outputs :32 .the configurable channels are defined individually by the user program to be either inputs or outputs.

Supply of the I/O groups: each group is supplied individually

Number of interfaces: 1 CS31 system bus interface

Address setting: Coding switch located under the slide cover at the right.

Operation and error displays: 33 LEDs

Technical data of the I/O channels as binary inputs

Number of channels per unit: 32

Division of channels: into groups 4 groups with 8 channels each,

channels En,00...En,07 and En,08...En,15

channels En+1,00...En+1,07 and En+1,08...En+1,15

Reference potential for inputs ZP0, ZP1, ZP2 and ZP3

Input delay typ: 7 ms

Signalization of the input signals: one yellow LED per channel,

LED: activated according to the input signal

Purpose:The digital input/output module ABB 07 DC 92 is used as a remote module on the CS31 system bus.

Application: PLC output expansion and sensor signal isolation in industrial automation. Signal switching and status indication in relay protection devices in power systems. Signal light control and safety circuit isolation in rail transit. Building automation in intelligent buildings
