ABB BC810K01 Technical specifications
Module type: Base unit or bus coupler
Supported I/O modules: Compatible with S800 series (such as AO810, DI810, etc.)
Communication protocol: PROFIBUS DP, Modbus RTU or Ethernet
Power input: 24V DC ±10% (redundant configuration optional)
Number of slots: 4-8 I/O module expansions may be supported
Communication rate: PROFIBUS DP: 12Mbps.
Ethernet: 100Mbps
Operating temperature: -25°C to +70°C
Certification standards: CE, UL, IEC 61326 (Industrial EMC)
Operating voltage: 24 VDC
Mounting method: DIN rail mounting
RoHS compliance: Complies with EU Directive 2011/65/EU
WEEE classification: Not within the scope of WEEE

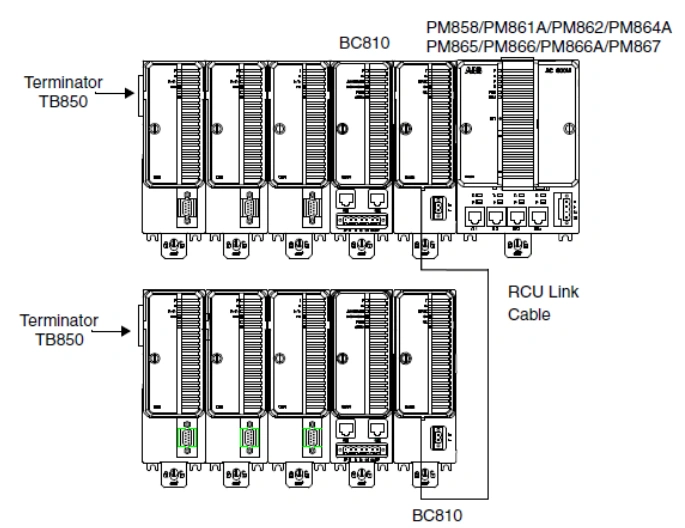

Purpose:ABB BC810K01 is used to connect and expand the CEX-Bus in the System 800xA system, supporting communication between multiple I/O modules and controllers.
Application：Industrial automation fields such as power, petrochemical, metallurgy, water treatment, etc., especially in control systems that require high reliability and real-time communication.
