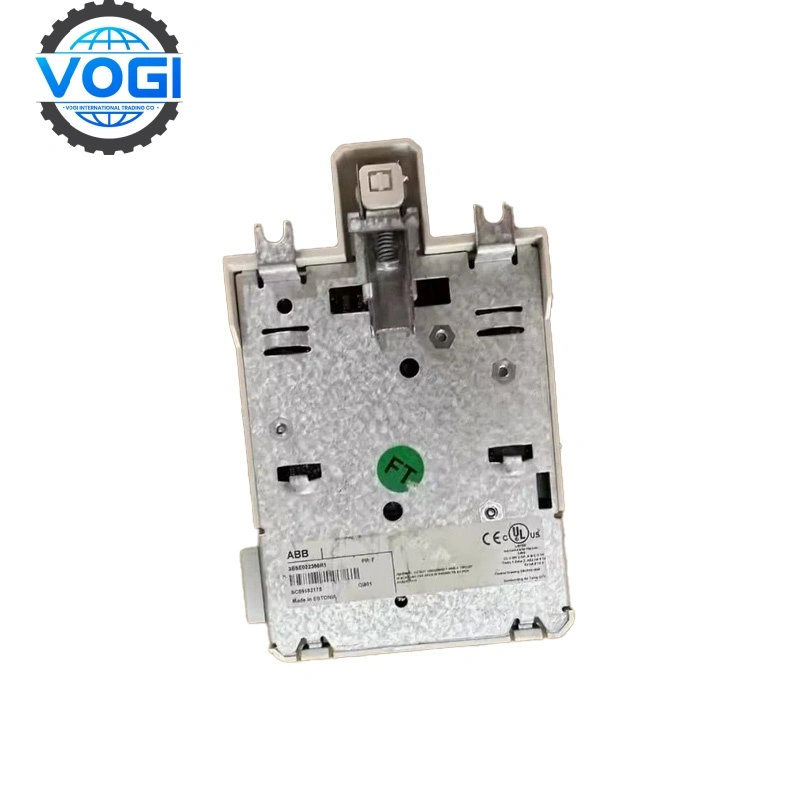

ABB CI801 3BSE022366R1 Communication Interface Module

ABB CI801Technical specifications

Operating voltage: 24 VDC (range: 19.2 V to 30 V)

Power consumption: Typical: 120 mA; Maximum: 200 mA

Power loss: Typical: 2.9 W

Operating temperature range: +5°C to +55°C

Storage temperature range: -40°C to +70°C

Relative humidity: 5% to 95%, non-condensing

Enclosure rating: IP20 (complies with EN 60529, IEC 529)

Electrical safety certifications: UL 61010-1, UL 61010-2-201

Hazardous area certifications: cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X

Marine certifications: ABS, BV, DNV-GL, LR

RoHS compliance: EN 50581:2012

WEEE compliance: DIRECTIVE/2012/19/EU

Purpose:ABB CI801 As a communication bridge between ABB controllers and PROFIBUS DP-V1 fieldbus, it enables efficient data transmission and centralized control of equipment.

Applications: ABB CI801 is widely used in process control systems, industrial automation, marine and offshore applications, power generation and distribution, and is especially suitable for applications that require high communication accuracy and response speed, such as temperature and pressure monitoring and control in the chemical industry.
