ABB CI856K01 3BSE026055R1 S100 I/O Interface Module
| Brand | ABB |
| Model Number | CI856K01 |
| Order Number | 3BSE026055R1 |
| Unit Price | $2300 |
| Country Of Origin | Sweden and Switzerland |
| Weight | 0.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 5 |

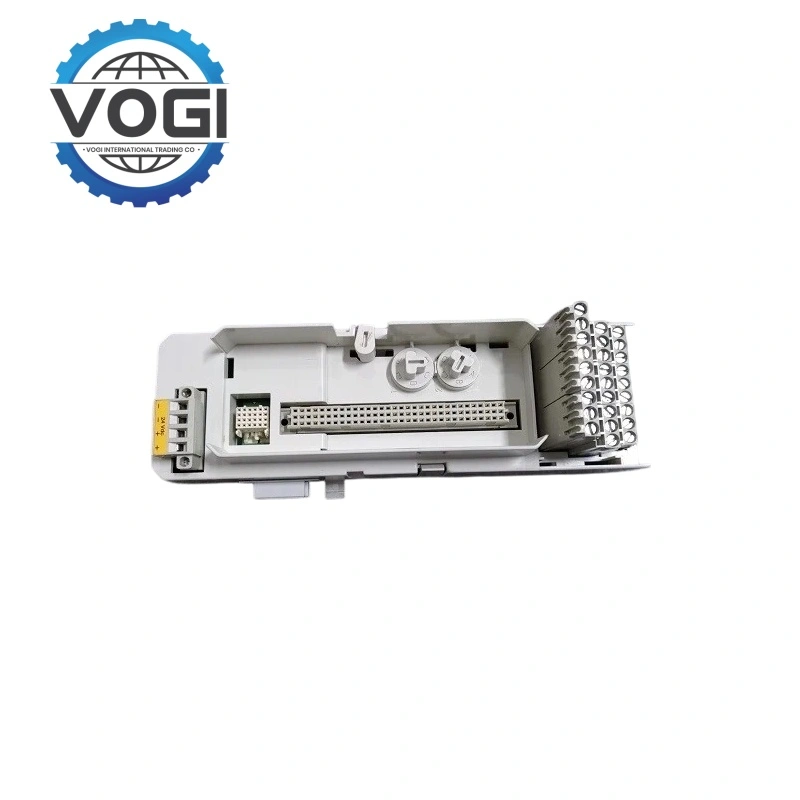

ABB CI856K01 3BSE026055R1 is a S100 I/O Interface Module, As a communication bridge, it enables the integration of legacy S100 I/O devices, allowing existing terminals and field cabling to be utilized when upgrading to the AC800M controller, thereby reducing the user’s investment costs.
ABB CI856K01 Key parameters
|
Parameter |
Specification |
|
Connector |
Miniribbon (36-pin) |
|
24 V consumption typ |
typ 120 mA |
|
Temperature Operating |
0 to +55 °C (+32 to +131 °F) |
|
Corrosion protection |
G3 compliant to ISA 71.04 |
|
Protection class |
IP20 according to EN60529, IEC 529 |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
ABB CI856K01 Key futures and Benefits
A key benefit with the CI856 interface is the possibility to reuse the majority of the existing I/O installation, including terminations and field wiring in existing ABB Master and Advant OCS installations.
Single connection to S100 I/O units located in up to five I/O racks
Code locking device to prevent mounting of incompatible components
Hot swap functionality
ABB CI856K01 Installation and Connection Key Points：
Mechanical Installation: The module must be mounted on a DIN rail.
Electrical Connection: The core component is connecting the S100 I/O cable. You need to connect the dedicated TK575 or TK580 cable to the 36-pin miniature ribbon connector marked "I/O" on the module base.
System Expansion: To connect to an S100 I/O rack, a bus extender (such as the DSBC174, DSBC176, or DSBC173A) is required.
However, the following technical features and limitations apply
Hot Configuration and HART Support: The module supports hot configuration during operation, meaning that modifications can be made to the system without shutting down. It also supports HART routing.
No Redundancy: This limitation requires special attention: The CI856 unit itself does not have unit redundancy. This must be considered when designing a high-availability system.
