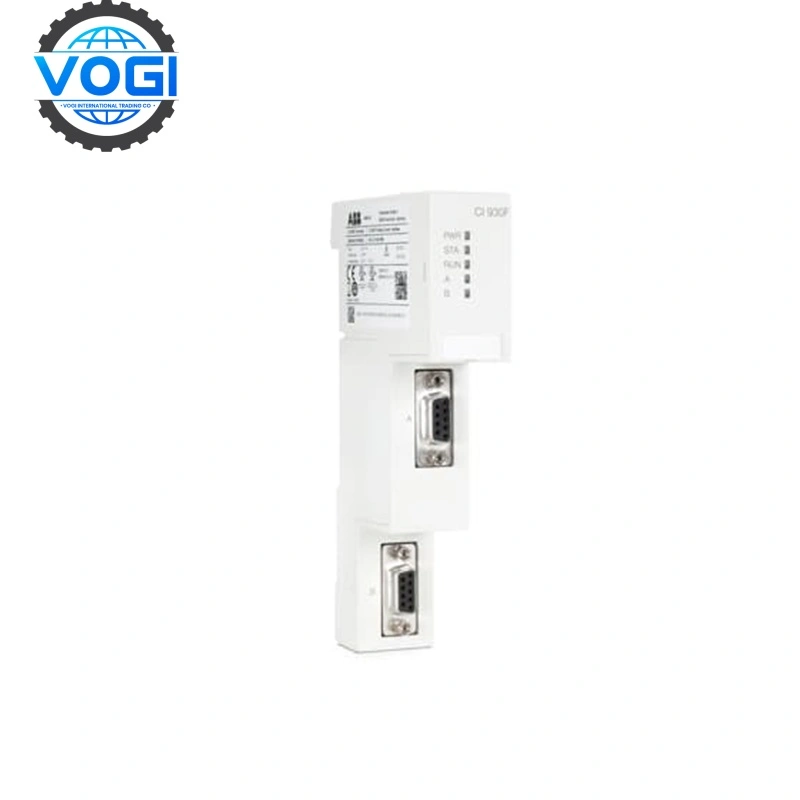

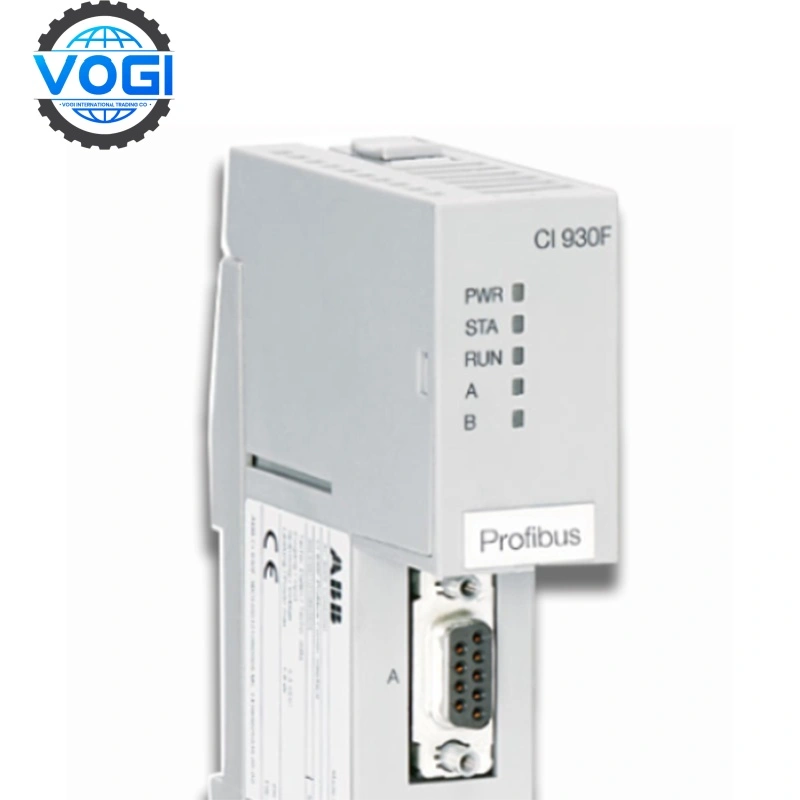

ABB CI930F 3BDH001010R0002 Communication Interface, PROFIBUS DP Master

ABB CI930F 3BDH001010R0002 Communication Interface, PROFIBUS DP Master

Brand	ABB
Module Number	CI930F
Ordering Number	3BDH001010R0002
Price	$ 1400
Country Of Origin	Sweden
Weight	0.2KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB CI930FTechnical specifications

Communication protocol: PROFIBUS DP master, supports DP-V0/V1

Communication rate: 9.6 kbit/s to 12 Mbit/s

Connector: Two D-Sub 9-pin interfaces (A/B)

Maximum number of slaves: Supports up to 126 slaves

Supply voltage: 24 V DC, typical current consumption 80 mA

Power requirement: Powered by AC 800M backplane (5 V DC), no external power supply required

Data exchange: 64 kB module, dual-port memory

Data transfer rate: 9.6 kbps to 12 Mbps (auto-sensing)

Data capacity: Maximum input/output data: 244 bytes (each direction)

Power consumption: 1.8 W

Operating temperature range: -20°C to +70°C

Storage temperature range: -40°C to +85°C

Relative humidity: Maximum 95%

Protection level: IP20

Purpose:ABB CI930F is a Profibus DP slave communication interface module, designed for ABB AC 800M series controllers, used to seamlessly integrate controllers into Profibus DP networks, and achieve efficient data exchange with master devices such as PLC and DCS.

Applications:Process industries such as petrochemicals, power, water treatment and manufacturing automation such as production line control, equipment monitoring, support real-time data transmission and distributed control system equipment interconnection.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB CI930FKey features

Profibus DP slave function: ABB CI930F compatible with Profibus DP-V0/V1 protocol, supports cyclic data exchange and diagnostic functions.

Plug and Play Integration: Quickly configure through ABB Control Builder tool and seamlessly connect to AC 800M controller architecture.

High Reliability: Industrial-grade hardware design, supports wide temperature operation, and has strong anti-electromagnetic interference ability.

Diagnosis and Maintenance: ABB CI930F Provides detailed fault diagnosis information and supports online hot swapping.

Flexible Topology Support: ABB CI930F Can connect to star, tree or bus Profibus networks, with a maximum number of 125 nodes.

Low Latency Communication: Supports up to 12 Mbps transmission rate to meet real-time control needs.

Typical cooperation cases

A Middle Eastern refinery uses ABB CI930F to connect AC 800M controllers to the Profibus network, collects tank pressure sensor data in real time and transmits it to the DCS.

In a European substation project, ABB CI930F is used as a slave to connect ABB protection relays to achieve circuit breaker status monitoring and remote control.

The Australian sewage treatment system integrates Profibus flow meters and valves through CI930F to optimize pump station automation control.

The German automobile production line uses ABB CI930F to connect AC 800M controllers with Profibus drive devices such as Siemens inverters to improve assembly line synchronization efficiency.
