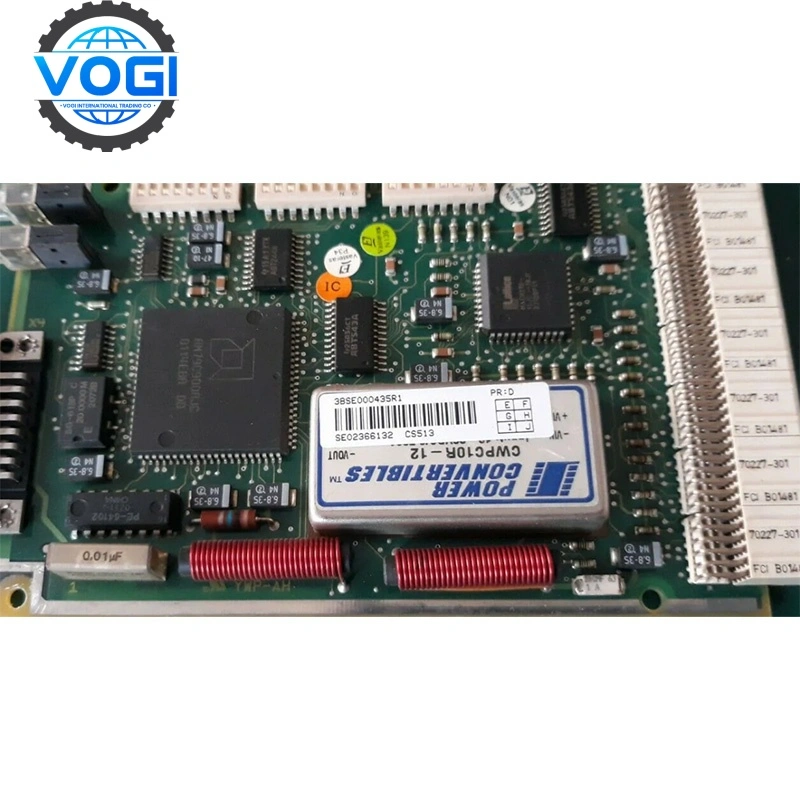

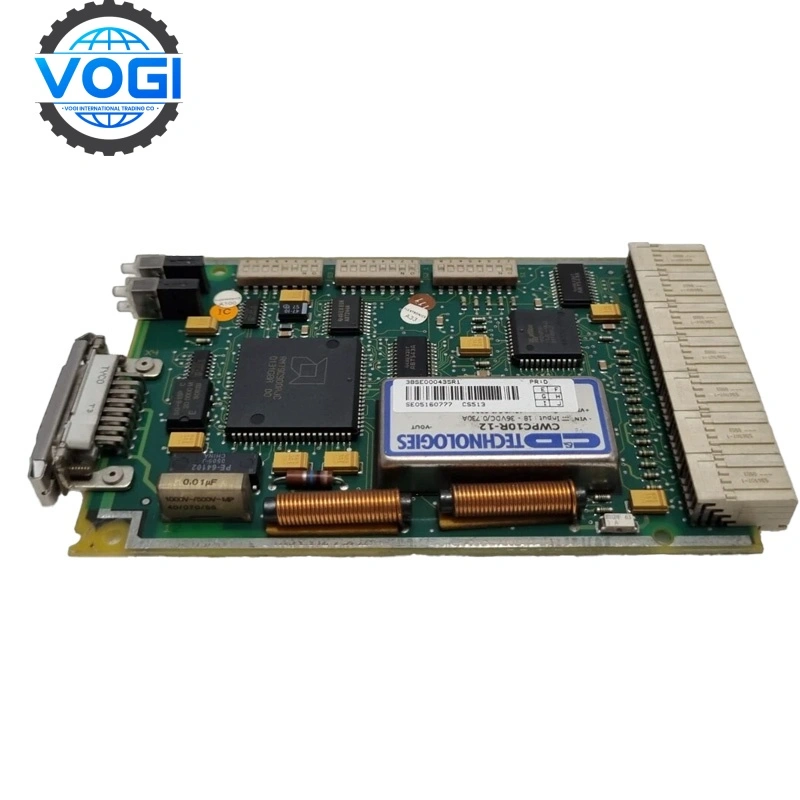

ABB CS513 3BSE000435R1 IEEE 802.3 LAN-Module

ABB CS513Technical specifications

Communication protocol: PROFIBUS DP master, supports DP-V0/V1

Communication rate: 9.6 kbit/s to 12 Mbit/s

Connector: Two D-Sub 9-pin interfaces (A/B)

Maximum number of slaves: Supports up to 126 slaves

Supply voltage: 24 V DC, typical current consumption 80 mA

Power requirement: Powered by AC 800M backplane (5 V DC), no external power supply required

Data exchange: 64 kB module, dual-port memory

Data transfer rate: 9.6 kbps to 12 Mbps (auto-sensing)

Data capacity: Maximum input/output data: 244 bytes (each direction)

Power consumption: 1.8 W

Operating temperature range: -20°C to +70°C

Storage temperature range: -40°C to +85°C

Relative humidity: Maximum 95%

Protection level: IP20

Purpose:ABB CS513 is an Ethernet communication module designed for ABB AC 500 series PLCs. It is used to achieve industrial Ethernet protocol integration and high-speed data communication, supporting efficient interconnection between PLC and host computer, HMI, and third-party devices.

Applications:Manufacturing automation such as mechanical control, production line monitoring, energy management such as photovoltaic systems, power distribution networks, and smart buildings such as building automation, suitable for scenarios requiring real-time data transmission and networked control.
