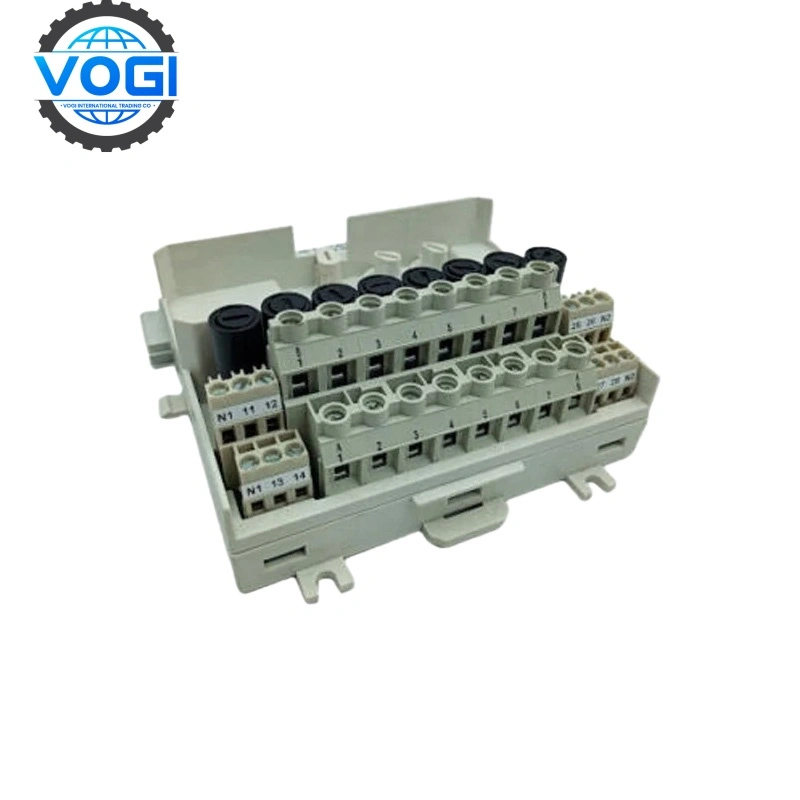

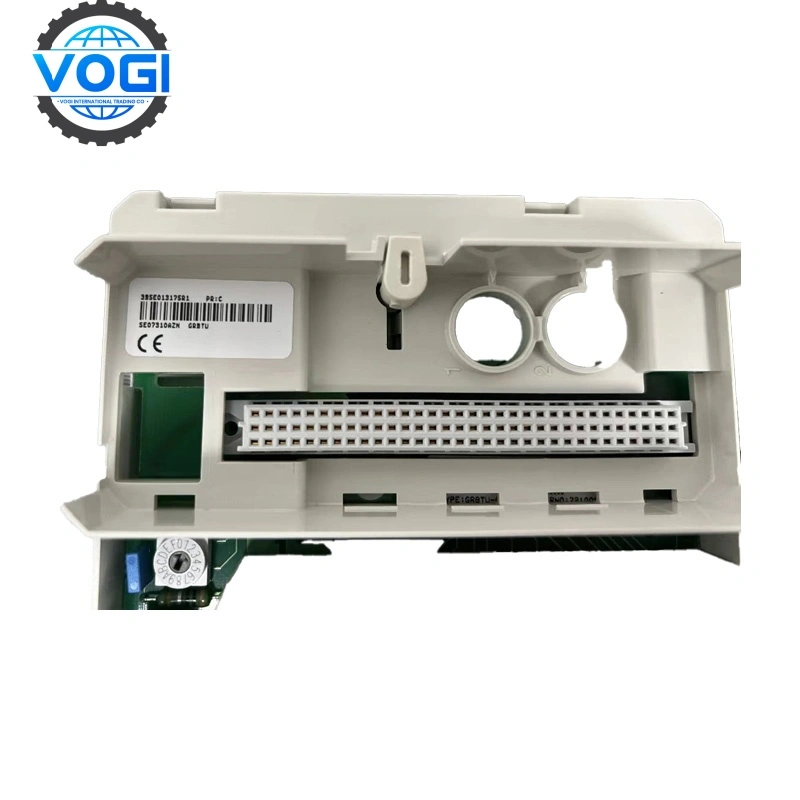

ABB GRBTU-01 3BSE013175R1Module Termination Unit

Brand	ABB
Module Number	GRBTU-01
Ordering Number	3BSE013175R1
Price	$1000
Country Of Origin	Sweden
Weight	0.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

Description

ABB GRBTU-01 Technical specifications

Supply voltage: 24 V DC

Protocol support: Modbus RTU/TCP (master/slave), PROFIBUS DP (master/slave)

Communication interfaces: 1 x RS-485 (Modbus RTU), 1 x RJ45 Ethernet (Modbus TCP), 1 x PROFIBUS DP (Sub-D)

Processing power: 32-bit ARM processor, 128 MB RAM, 256 MB Flash

Data throughput: Modbus TCP: 1000 registers/second; PROFIBUS DP: 12 Mbps

Power requirements: 24 V DC (±20%), dual power input, power consumption ≤ 5 W

Environmental adaptability: Operating temperature: -40°C to +70°C; IP20 protection; vibration resistance 5 g (IEC 60068-2-6)

Certification standards: CE, UL, RoHS, IEC 61850-3 (power compatibility)

Purpose:As a communication gateway module, ABB GRBTU-01 connects the ABB AC700 PLC system with IEDs supporting the IEC 61850 protocol to achieve data acquisition, status monitoring and control command transmission.

Applications:ABB GRBTU-01 is widely used in power system automation, substation control, industrial process control and other fields, and is particularly suitable for application scenarios with high requirements for communication stability and real-time performance.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

ABB GRBTU-01 Key features

Multi-protocol conversion: ABB GRBTU-01 Supports Modbus RTU/TCP ↔ PROFIBUS DP bidirectional protocol conversion, compatible with third-party PLCs, instruments and sensors.

Flexible configuration: ABB GRBTU-01 Built-in web configuration interface, supports script-defined data mapping and logic processing.

High reliability: Industrial-grade design, wide temperature operation, MTBF ≥ 100,000 hours.

Dual power redundancy: 24 V DC dual power input to ensure uninterrupted operation.

Network security: ABB GRBTU-01 Supports VLAN, firewall rules and HTTPS/SSH encrypted communication, in accordance with IEC 62443 standards.

Compact installation: DIN rail installation, saving control cabinet space.

Typical cooperation cases

A commercial complex in Dubai uses ABB GRBTU-01 to connect Modbus RTU thermostats to Siemens building management systems to optimize air conditioning energy consumption.

Melbourne Water Plant in Australia deploys ABB GRBTU-01 to connect ABB drives and third-party fluids (Modbus RTU) to achieve automatic control of pump groups.

Ford plant in the United States integrates welding robots and energy monitoring systems through GRBTU-01 to improve energy efficiency and OEE.

Offshore wind farms:

The North Sea wind farm in the UK uses ABB GRBTU-01's IEC 61850-3 compatibility to transmit weather station data to the main control system.
