ABB ICSE08B5 FPR3346501R1012
| Brand | ABB |
| Model Number | ICSE08B5 |
| Order Number | FPR3346501R1012 |
| Unit price | $500(It's just numbers, not the actual price) |
| Country Of Origin | Switzerland and Sweden |
| Weight | 1KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 1 |

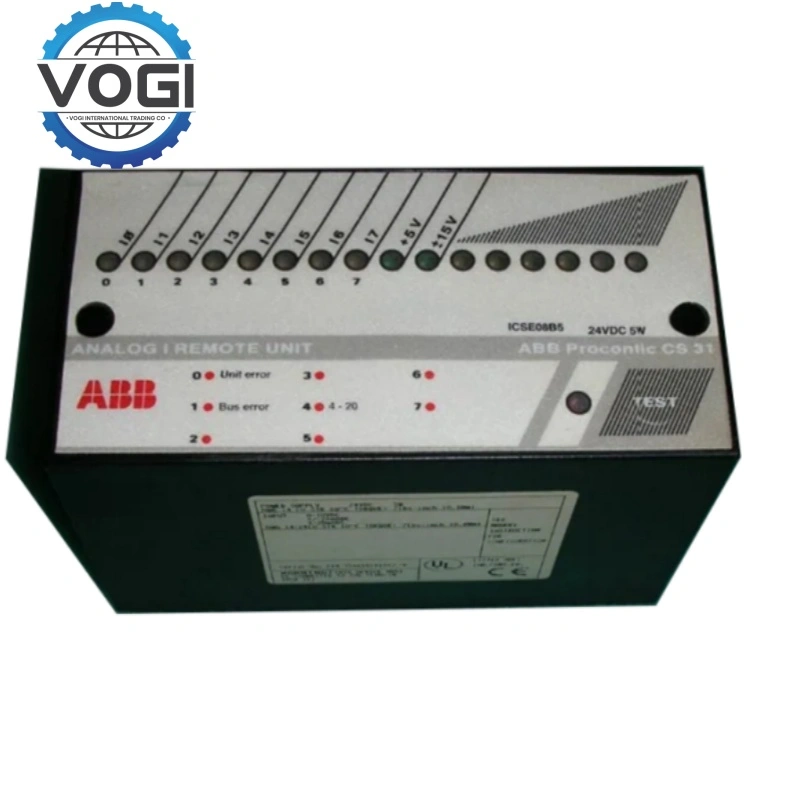

ABB ICSE08B5 FPR3346501R1012 is Analog input module, it has 8 twelve-bit analog inputs and analog signal outputs, operating at 24 VDC, and utilizing an RS-485 serial port for communication
|
Parameter |
Specification |
|
Description |
Eight analogue inputs |
|
Input Range |
-10V ...+10V, -20 ...+20mA, 4 ...20mA 12 bits resolution |
|
Power types |
24 VDC power supply FPR 334 6501 R1012 120 VAC power supply FPR 334 6501 R0014 230 VAC power supply FPR 334 6501 R0016 |
|
AnaIogue units |
1355 µs |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Similar types following
|
Type |
Description |
Order code |
|
ICSE 08 A6 |
Eight analogue inputs 0 ...+ 10V, 0 ...20mA, 4 ...20mA 8 bits resolution 24 VDC power supply 120 VAC power supply 230 VAC power supply |
FPR 334 5601 R1012 FPR 334 5601 R0014 FPR 334 5601 R0016 |
|
ICST 08 A8 |
Eight analogue inputs PT100 8 bits resolution range of temperature : -50 °C ... +150 °C (-58 °F ... +302 °F) 24 VDC power supply 120 VAC power supply 230 VAC power supply |
FPR 333 5801 R1012 FPR 333 5801 R0014 FPR 333 5801 R0016 |
|
ICST 08 A9 |
Eight analogue inputs PT100 8 bits resolution range of temperature : 0 °C ... +300 °C (-32 °F ... +572 °F) 24 VDC power supply 120 VAC power supply 230 VAC power supply |
FPR 333 5901 R1012 FPR 333 5901 R0014 FPR 333 5901 R0016 |
|
ICDT 08 B5 |
Eight analogue inputs -10V ...+10 V, -5 ...+5 V, -500... + 500 mV, -50 ...+50 mV 0...20 mA, 4 ...20 mA 12 bits resolution configurable for temperature sensors or as voltage inputs 24 VDC power supply |
GJR 525 1666 R1001 |
