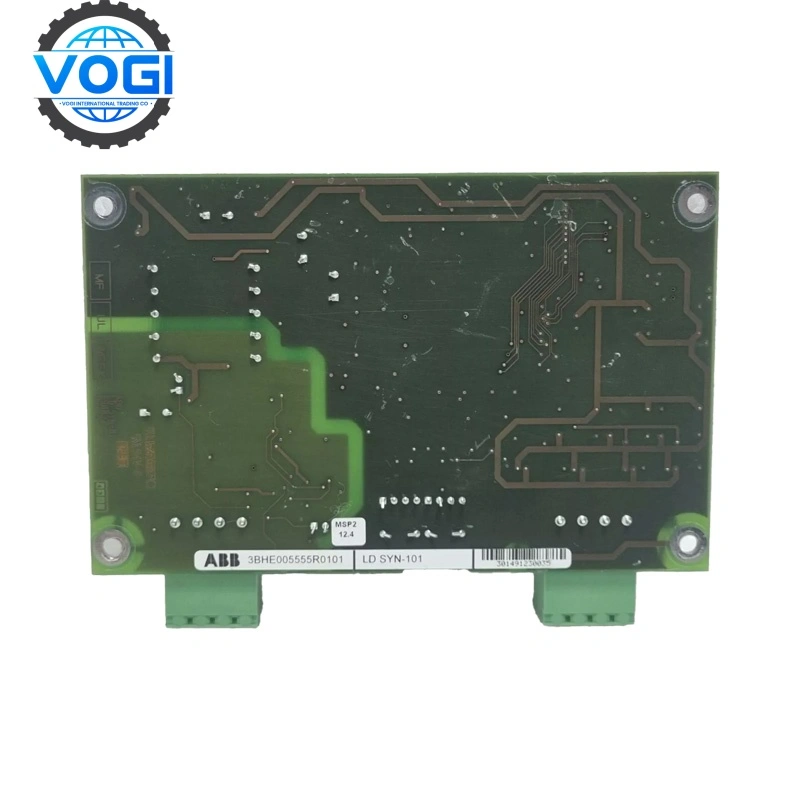

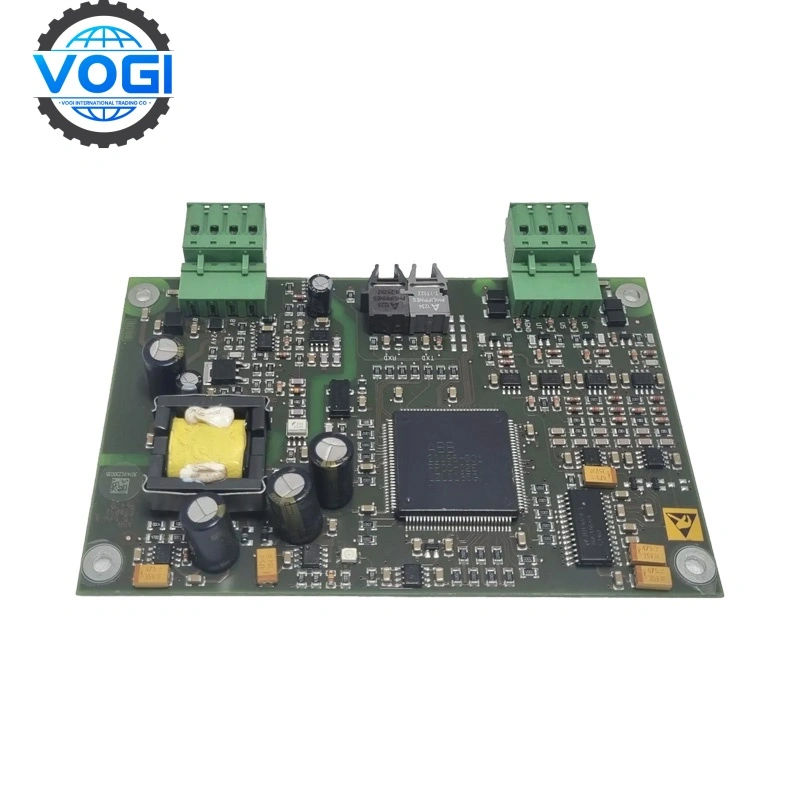

ABB LDSYN-101 3BHE005555R0101 Sync Board

Brand	ABB
Module Number	LDSYN-101
Order Number	3BHE005555R0101
Price	$1600
Country Of Origin	Sweden
Weight	0.8kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

Description

ABB LDSYN-101 Technical specifications

Input voltage: 24 VDC ±20%

Out put voltage: 0~10 VDC (Analog signal)/24VDC (Digital signal)

Input current: 15 mA

Output current: 0~20 mA

Temperature range: -20°C to +60°C

Operating temperature range: -40 to 85°C

Humidity range: 5% to 95%

Communication interface: Ethernet

Protection level: IP20

Certification: CE, UL

Purpose:LDSYN-101 is mainly used to realize signal synchronization, conversion and transmission between modules in the system to ensure the coordinated operation of the entire control system.

Applications:In industrial automation systems, it is used to synchronize the operation of various control modules in automated production lines. In the control systems of power plants and substations, in process control systems in chemical, pharmaceutical and other industries, it is used to accurately synchronize various control links and improve control accuracy. In robot control systems, it is used to synchronize the movements of various joints.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

ABB LDSYN-101Key features

High-precision synchronization: Ensure signal synchronization between modules and improve the coordination of the control system.

Fast response: Possess fast signal processing capabilities to meet the needs of real-time control.

Modular design: Compact structure, easy system integration and maintenance, and support flexible configuration.

Multi-protocol capability: Supports multiple communication protocols and is compatible with various control systems.

High stability: industrial-grade design for harsh environment, to make sure the system is stable running

Alternative models

Model	Input Voltage	Output Voltage	Communication Interface	Description
LDSYN-101	24 VDC	0~10 VDC / 24 VDC	Ethernet	High-precision synchronization, fast response, suitable for various applications
LDSYN-102	24 VDC	0~5 VDC / 24 VDC	RS-485	General-purpose synchronization module, suitable for standard industrial applications

LDSYN-101 vs. LDSYN-102: LDSYN-101 supports a higher output voltage range and a faster communication interface, and is suitable for applications that require higher synchronization accuracy and response speed. LDSYN-102 is suitable for applications with lower synchronization requirements.

Summary：The selection of the appropriate module should be based on the system's synchronization accuracy, response speed, and communication interface requirements.
