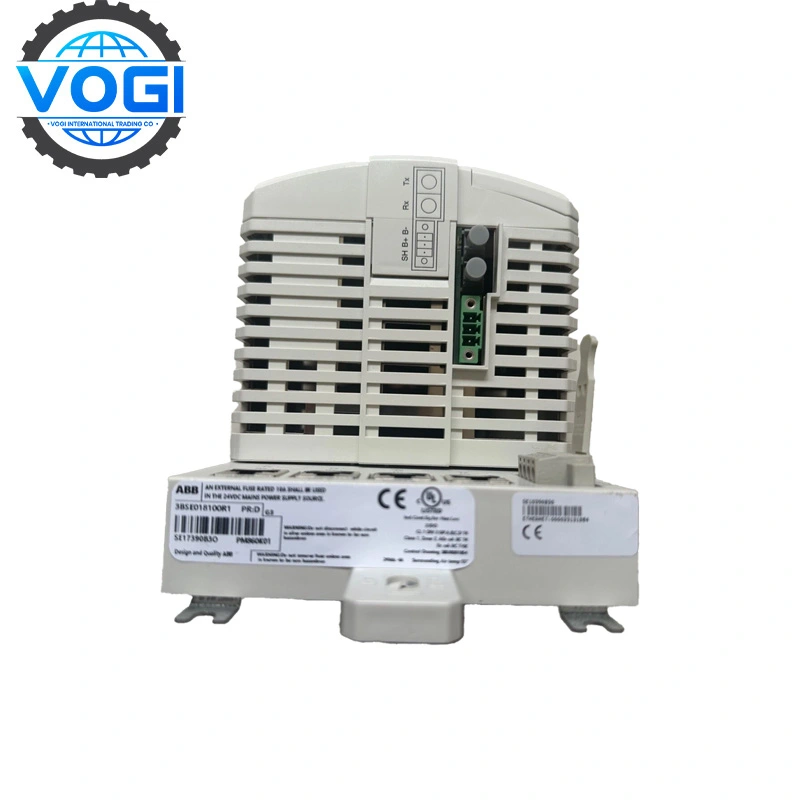

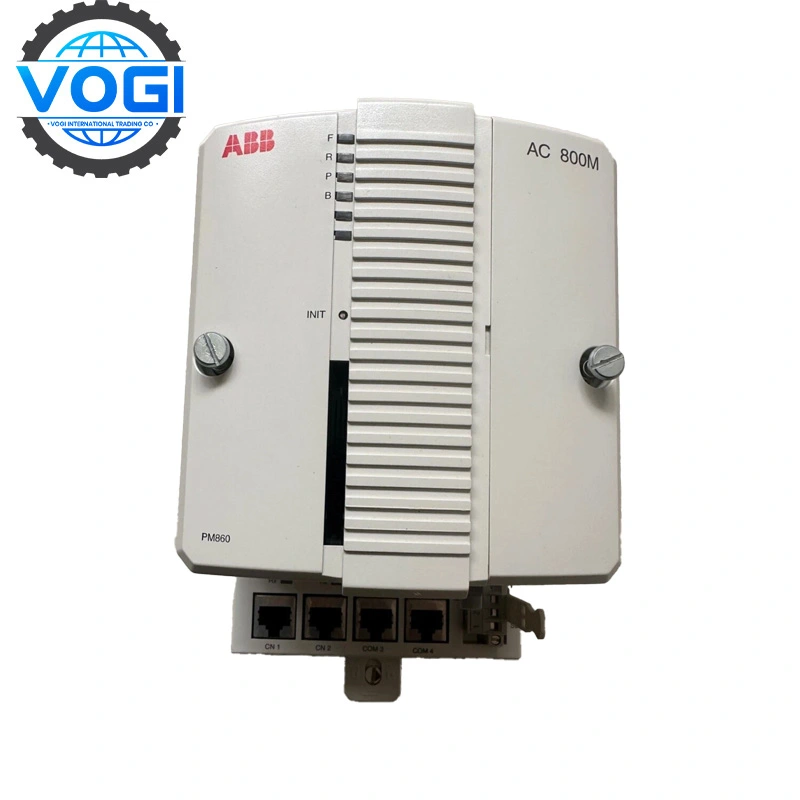

ABB PM860K01 3BSE018100R1 Processor Unit Kit

ABB PM860K01Technical specifications​

Processor: MPC860 microprocessor, main frequency 48 MHz

Memory:

2 MB Flash PROM

16 MB SDRAM

Communication interface:

2 Ethernet ports (CN1 and CN2, 10BaseT, IEEE 802.3 standard)

2 serial ports (COM3 and COM4, RS-232C)

Storage expansion: CompactFlash interface, supports storage of application programs and cold retention data

Power input: 24 V DC (±20%)

Power consumption: typical value 5 W; maximum value 10 W (including ModuleBus and CEX-Bus power supply)

Rated voltage: AC 690V, 50/60Hz

Rated current: 16A

Number of poles: 1P+N, 2P, 3P, 3P+N​

Breaking capacity:6kA​

Tripping curve:Type B​

Protection level:IP20​

Mechanical life:10,000 operations​

Electrical life:10,000 operations​

Ambient temperature:-25°C to +55°C​

Certification standards:IEC 60947-2, UL 508, CE, RoHS, ATEX​ (explosion-proof version optional)

Purpose: ABB PM860K01 (order number: 3BSE018100R1) is a high-performance processor module in ABB AC 800M control system, which is widely used in industrial automation, process control, power system and other fields.
