ABB PM904F 3BDH001002R0001
| Brand | ABB |
| Module Number | PM904F |
| Order Number | 3BDH001002R0001 |
| Unit price | $1999 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 0.75KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 2 |

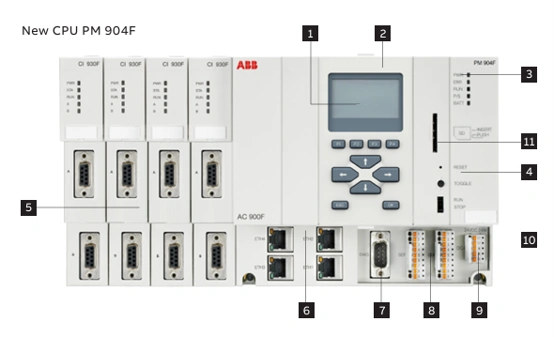

ABB PM904F is plus CPU belong to AC900F series to Freelance DCS system, Performance is superior to that of PM901F and PM902F.
ABB PM904F features four Ethernet ports supporting Modbus-TCP, IEC-60870-5-104, custom TCP/UDP protocols, and system redundancy buses; its two serial ports support Modbus-RTU/ASCII and IEC-60870-5-101. Expansion modules enable PROFIBUS-DP master and CAN bus remote I/O capabilities, while OPC UA connectivity allows integration with upper-level HMI, SCADA, and MES systems. Detailed specifications are as follows:
Processor: PowerQUICC II Pro, 800MHz 32-bit RISC
Total Memory: 48MB (comprising 16MB battery-backed SRAM for data retention and 32MB DRAM for runtime operations)
Boolean Operations: 1,000 Boolean logic instructions: 0.12ms
Max. I/O Points: Approx. 1,500 points (highest in the product family)
Ethernet Ports: 4 × RJ45 10/100M
Serial Interfaces: 2 × RS-232/485 terminals; 1 × 9-pin D-SUB diagnostic port
Expansion Slots: 4 communication module slots (compared to 2 slots on PM901F/PM902F); supports PROFIBUS-DP master and CAN bus modules
Local I/O Connection: Direct mounting of up to 10 S700 series I/O modules; supports remote I/O
Storage: Built-in SD card slot for firmware and configuration backups
Power Supply: 24VDC
Operating Temperature: -10°C to +60°C, IP20
Redundancy Support: Supports CPU hot-standby redundancy; switchover time < 500ms
Mounting: DIN rail mounting
Lifecycle Status: Active
