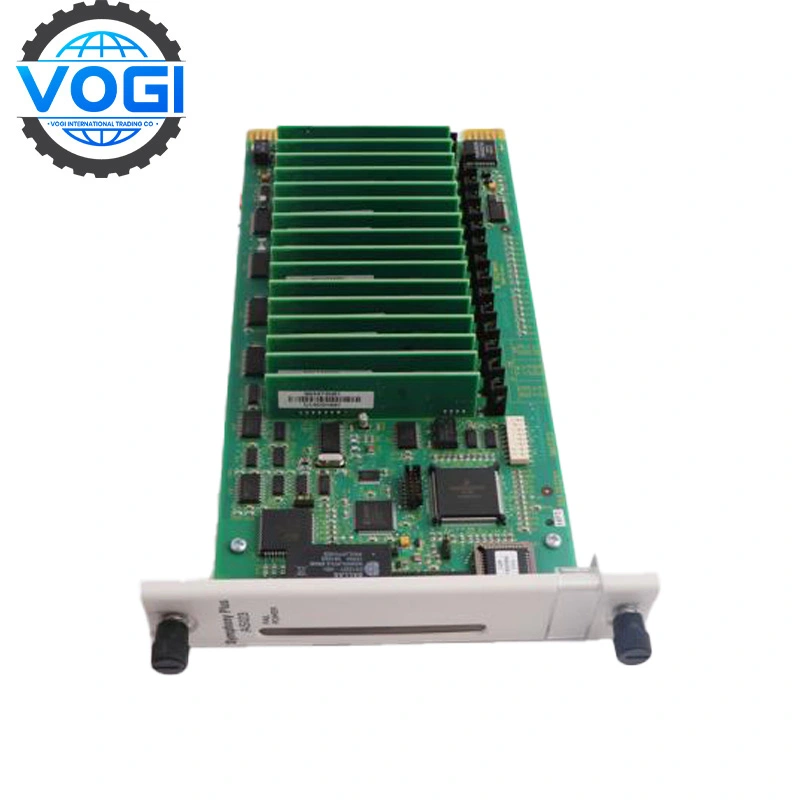

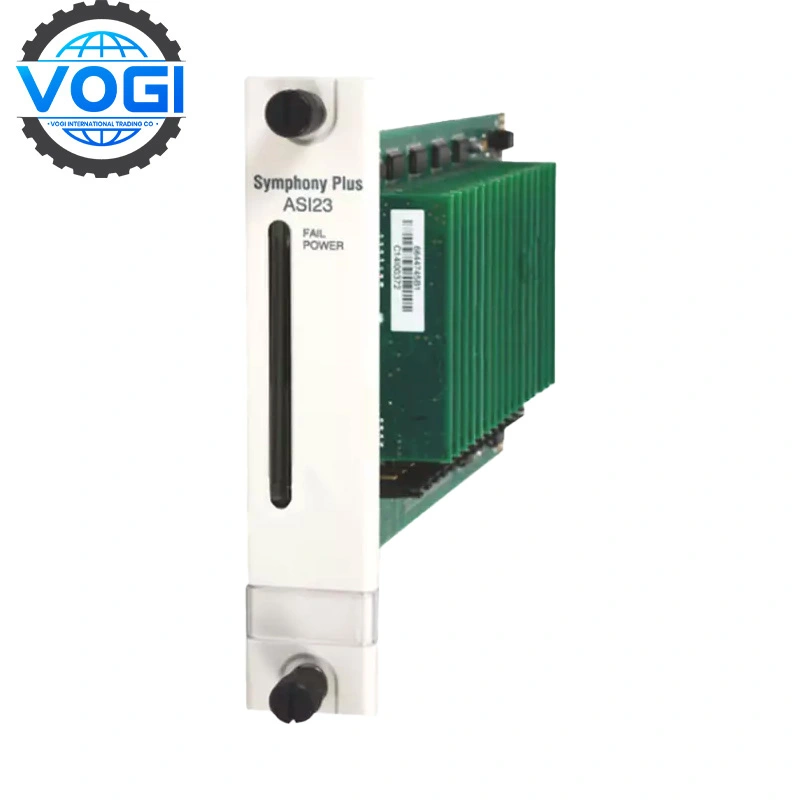

ABB SPASI23 Analog Input Module

Brand	ABB
Module Number	SPASI23
Price	$1500
Country Of Origin	Sweden
Weight	0.7kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB SPASI23Technical specifications

Number of input channels: 16 single-ended channels or 8 differential channels

Supported signal types: Thermocouple (TC), resistance temperature detector (RTD), thermistor, voltage, current

Input range

Voltage: -10 V to +10 V
- Current: -20 mA to +20 mA
- Thermocouple: -200°C to +1800°C
- RTD: -200°C to +800°C
- Thermistor: -50°C to +150°C

Accuracy: ±0.1% of full scale

Resolution: 16 bits

Conversion time: 250 microseconds

Isolation voltage: 2500 V RMS between channels and ground

Supply voltage: 24 V DC

Power consumption: 2.5 W

Operating temperature range: -40°C to +70°C

Humidity range: 0% to 95% Relative humidity, non-condensing

Installation method: DIN rail installationDetails:

Purpose: ABB SPASI23 is a high-performance 16-channel analog input module designed for ABB's Symphony Plus control system. It can convert analog signals from field devices into digital signals for processing by the control system. It is widely used in many industrial fields such as power, oil and gas, chemical industry, water treatment, pharmaceuticals, food processing, etc.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB SPASI23Key features

Multiple signal type support: compatible with thermocouples, RTDs, thermistors, voltage, current and other analog signals to meet diverse application needs.

Electrical isolation: 2500 V RMS isolation between channels and ground to enhance the system's anti-interference ability and safety.

Modular design: supports DIN rail installation for easy system integration and maintenance.

Self-diagnosis function: with self-detection capability, it can monitor the operating status of modules and sensors in real time to improve system reliability.
