ABB TU834 3BSE040364R1
| Brand | ABB |
| Model Number | TU834 |
| Order Number | 3BSE040364R1 |
| Unit price | $199 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 0.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 27 |

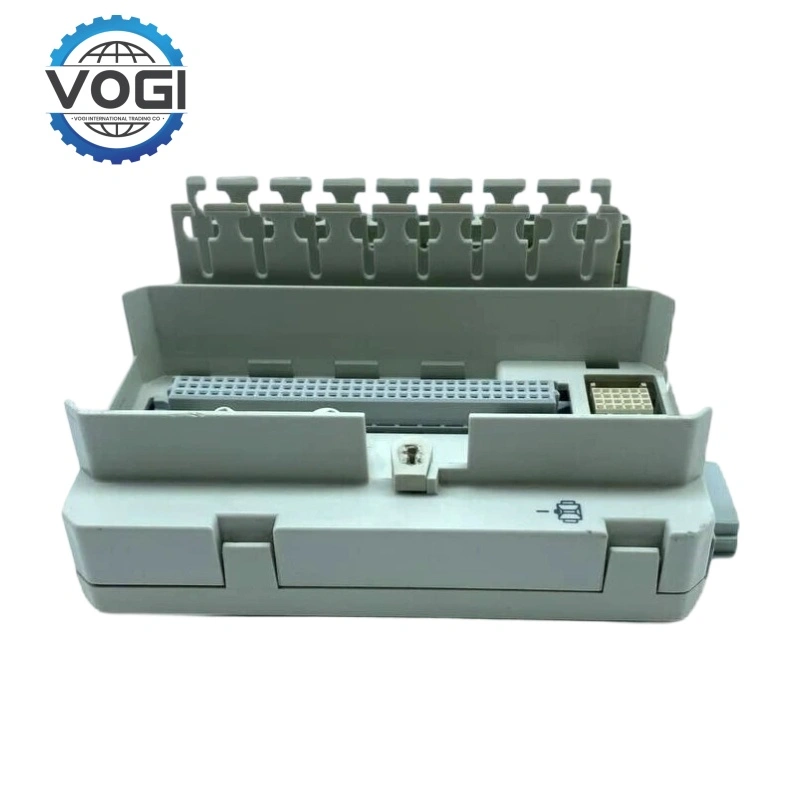

ABB TU834 is Extended Terminal Block, only used for AI880 and AI880A I/O modules and can be mounted on a standard DIN rail.
|
Parameter |
Specification |
|
Maximum current per I/O channel |
2 A |
|
Acceptable wire sizes |
Solid: 0.2 - 4 mm² |
|
Dielectric test voltage |
500 V a.c. |
|
Temperature, Operating |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Description details and benefits
Complete installation of I/O modules using 2-wire connections and field power distribution.
Up to 8 channels of field signals and process power connections.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting.
Include 8 individual shunt sticks
Here is the similar Extended terminal blocks
TU830V1 / TU830: 16 channels, 50V, with power distribution and fuses.
TU831V1: 250V, screw terminals, with fuses.
TU833: 50V, spring terminal blocks, with fuses.
TU834: 50V, screw terminals for matching shunt sticks (Shunt Sticks, TY80X).
TU835V1 / TU838: 50V extended terminals, commonly used for analog modules.
TU836V1 / TU837V1 / TU839: 250V extended terminals for applications.
TU850 / TU851: Extended terminals with more connection points.
