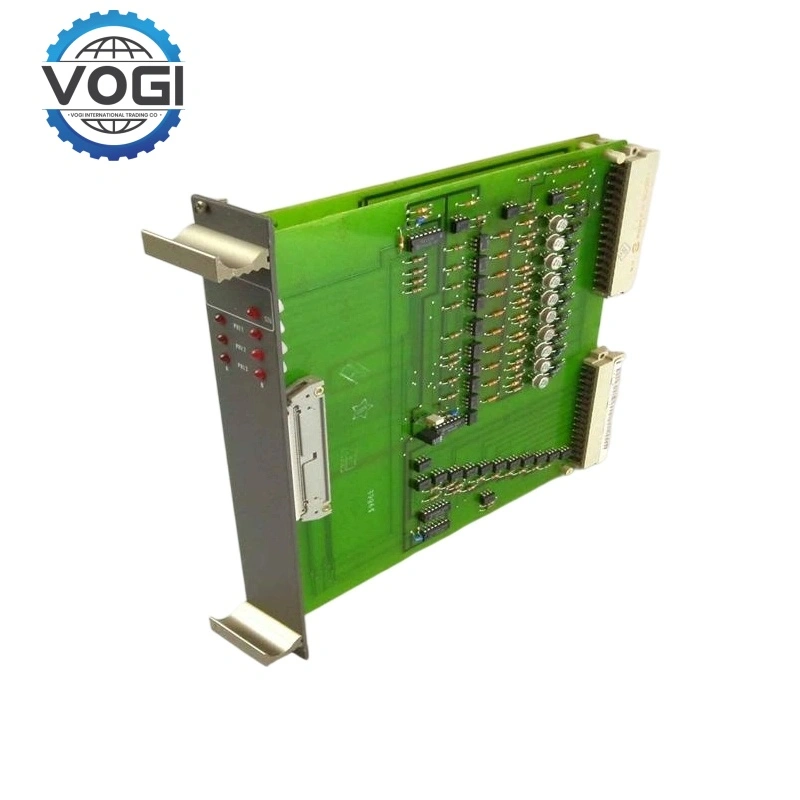

ABB XVC724BE102 3BHE009017R0102
| Brand | ABB |
| Module Number | XVC724BE102 |
| Order Number | 3BHE009017R0102 |
| Unit price | $2599 |
| Country Of Origin | Switzerland and Sweden |
| Weight | 0.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 2 |
ABB XVC724BE102 is also VLSCD board, Its functionality is more powerful, and it is an upgraded and improved version of XVC724BE101 in terms of reliability.
XVC724BE102 as a VLSCD board used for ACS2000 series frequency converter, while using we have to strictly follow the control-level standards of the medium-voltage transmission system. The core components are 24V DC redundant power supply + high-precision voltage/current signal acquisition.
The technical specifications for the use of the boards at the site are as follows:
Rated range: 22.5 ~ 26.4V DC
Input range: 0 to ±1000V DC (bus) / 0 to 690V AC (output)
Input impedance: ≥ 10MΩ (high-impedance sampling, does not affect the main circuit)
Rated input: 0 to ±10V (corresponding to 0 to 1000A output)
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
What is the difference between XVC724BE101 and XVC724BE102
|
Difference Analysis |
XVC724BE101 |
XVC724BE102 |
|
Detection accuracy and response speed |
12-bit single-channel ADC sampling rate: 10kHz Response time: maximum 25µs |
16-bit dual-channel synchronous ADC + FPGA preprocessing, sampling rate 100kHz Maximum response time 10µs (speedup by 60%+) |
|
Interface and communication capabilities |
1×15-pin D-Sub connector, single 24V DC input. No fieldbus. Requires wiring. |
1×25-pin D-Sub (compatible with 101), redundant 24V DC dual input, expansion terminal block Fiber optic port (multi-drive synchronization) + optional RS485 (Modbus) |
|
Applicable power / voltage range of the frequency converter |
ACS2000 (4kV/315~1600kVA) Maximum compatible output: 630A |
ACS2000 (4kV/315~2500kVA) + Partially upgraded ACS6000 1000A output (compatible with larger power units) |
