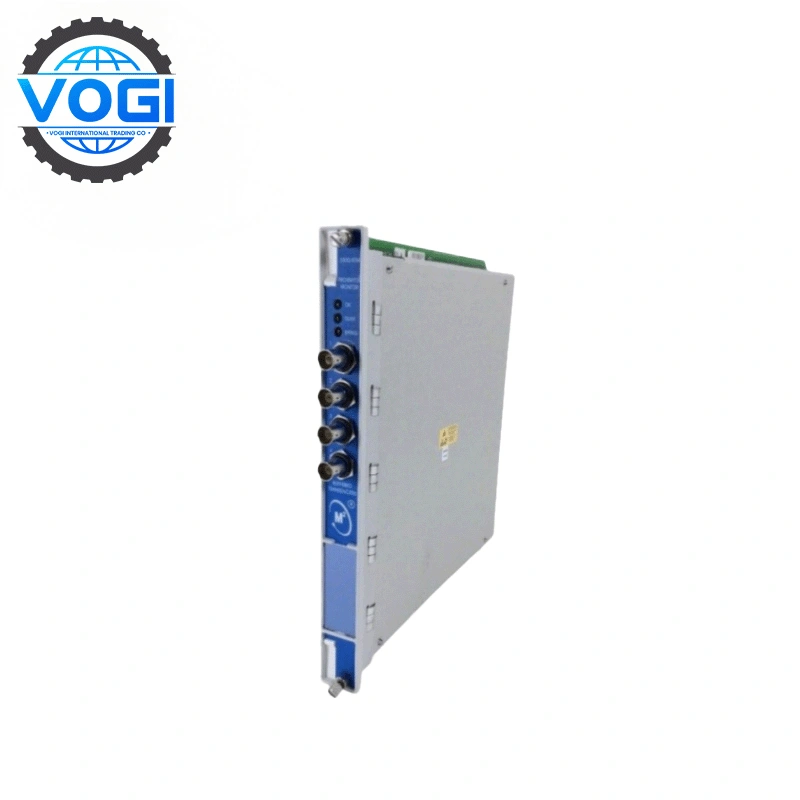

Bently Nevada 133396-01 Overspeed Detection I/O Module
| Brand | Bently Nevada |
| Module Number | 133396-01 |
| Unit Price | $500 |
| Country Of Origin | USA |
| Weight | 0.8kg |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 7 |
The Bently Nevada 133396-01 is an Overspeed Detection I/O Module designed for redundant tachometer systems in machinery protection, enabling 2-out-of-3 voting logic to meet API 670/612 standards .
Bently Nevada 133396-01 Key parameters
|
Core Functionality |
Dual-channel overspeed detection; configurable 2-out-of-2 or 2-out-of-3 voting |
|
Input Signal Range |
+10.0 V to -24.0 V (internally clamped for overvoltage) |
|
Threshold Modes |
Auto (min. 1 Vpp) or Manual (-23.9 to +9.9 Vdc; min. 0.5 Vpp) |
|
Frequency Response |
Max. input: 20 kHz; Min. input: 0.0167 Hz (proximity), 3.3 Hz (mag. pup) |
|
Transducer Compatibility |
3300 XL Probes (8/16 mm), 7200 Proximitors (5–14 mm), RAM Proximitors |
|
Recorder Output |
+4 to +20 mA (linear to rpm); short-circuit immune |
|
Power Specifications |
Consumption: 8.0 W (typ.); Transducer supply: -24 Vdc, 40 mA max. |
|
Environmental Limits |
Operating temp.: -30°C to +65°C; Storage: -40°C to +85°C |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
一．Bently Nevada 133396-01 Key Features
API 670/612-Compliant Overspeed Protection Logic
The Bently Nevada 133396-01 enables 2-out-of-2 or 2-out-of-3 voting configurations for critical overspeed detection in turbines and compressors. This redundancy meets API 670/612 safety mandates by triggering shutdowns only when multiple modules confirm an overspeed event, minimizing false trips .
Dual-Mode Threshold Sensing with Signal Resilience
Its input stage handles signals from proximity probes or magnetic pickups across +10.0 V to -24.0 V, internally clamping overvoltage transients. Users select:
Auto Threshold: For signals >1 Vpp (min. 0.0167 Hz)
Manual Threshold: Configurable from -23.9 Vdc to +9.9 Vdc (supports low-rpm signals down to 500 mVpp) . Adjustable hysteresis (0.2–2.5 V) prevents relay chatter during speed fluctuations .
