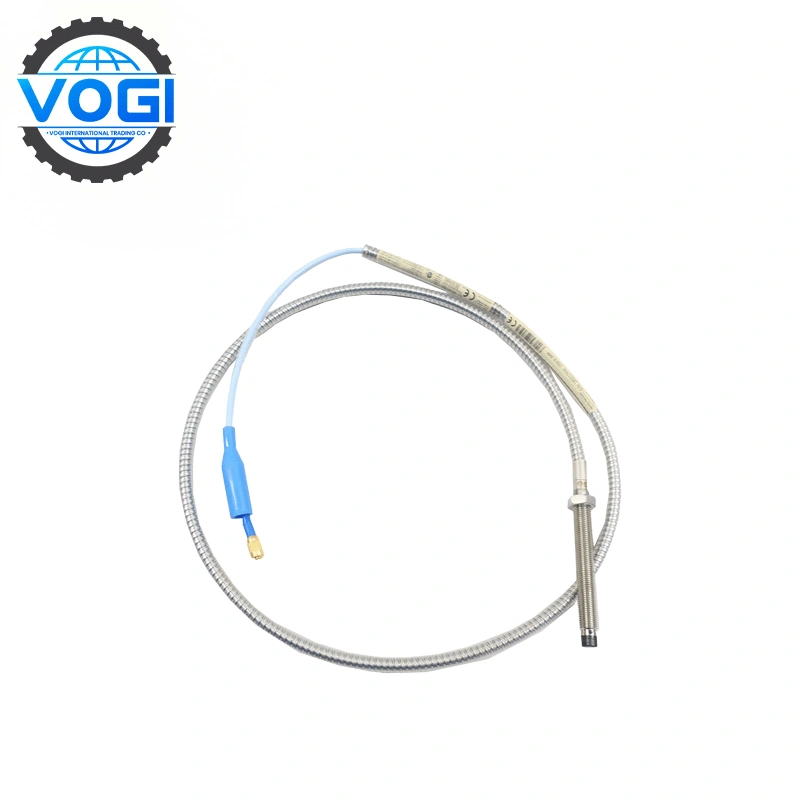

Bently Nevada 330105-02-12-10-02-00 8mm Reverse Mount Probes

Brand	Bently Nevada
Module Number	330105-02-12-10-02-00
Price	$600
Country Of Origin	USA
Weight	0.25kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	15

Add to Cart

Submit Inquiry

Description

Payment & Security

Datasheet Download

Description

Bently Nevada 330105-02-12-10-02-00 Key parameters

Physical Configuration & Mounting

Probe Type: 3300 XL 8 mm Reverse Mount Design, optimized for installations where space constraints prevent standard probe orientation.

Thread Size: 3/8-24 UNF, compatible with imperial-threaded mounting brackets in turbines or compressors.

Case Length: 12 mm, enabling deployment in tightly confined machinery spaces like bearing housings.

Integrated Cable: 1.0-meter factory-attached cable, reducing splice points for improved signal integrity.

Materials & Environmental Resilience

Probe Tip: Molded Polyphenylene Sulfide plastic for chemical/abrasion resistance in oil-lubricated environments.

Probe Body: AISI 303/304 stainless steel casing, ensuring durability in high-vibration industrial settings.

Sealing: Integrated Viton O-ring prevents moisture/dust ingress at connector junctions.

Temperature & Certifications

Operating Range: -51°C to +177°C.

Extended Temperature (ETR) Capability: Not supported; for >177°C, use ETR-specific probes.

Hazardous Area Rating: No intrinsic safety certification. Suitable for non-explosive zones only.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

Bently Nevada 330105-02-12-10-02-00 Core Functions

Dual-Parameter Measurement: The Bently Nevada 330105-02-12-10-02-00 generates eddy currents to monitor both: Static position; Dynamic vibration on rotating assets like pumps or fans.

Precision Output: Delivers a linear scale factor of 200 mV/mil (7.87 mV/µm) ±6.5% against AISI 4140 steel targets, with ≤±38 µm linearity error across its 2 mm (80 mil) measuring range.

Environmental Resilience: Operates reliably from -35°C to +177°C (-31°F to +350°F). Includes a Viton O-ring seal to resist moisture/dust ingress in humid or high-splash zones.
