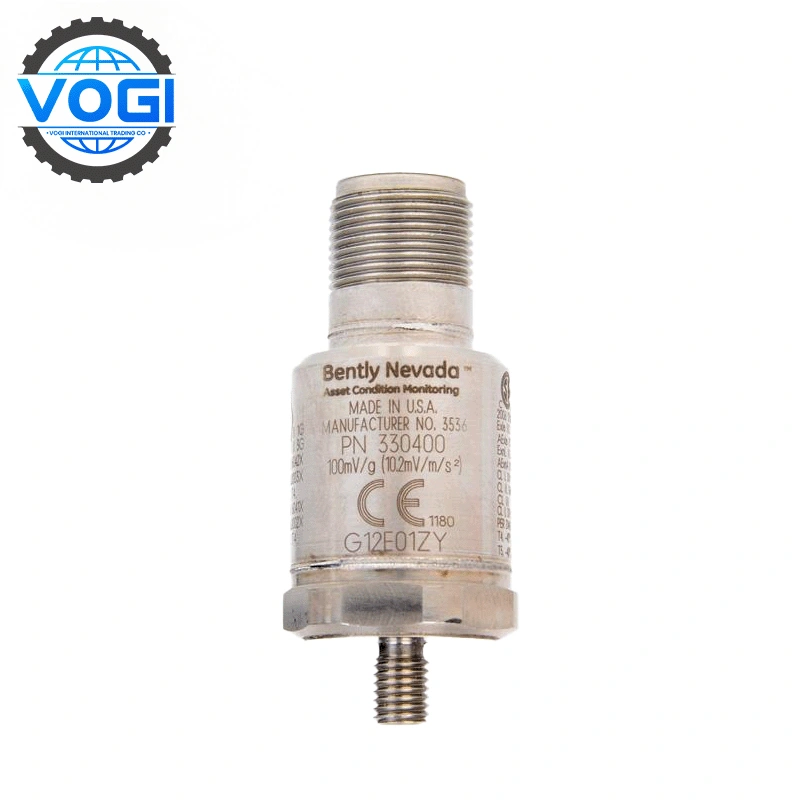

Bently Nevada 330400-01-05 Accelerometer Acceleration Transducers

Bently Nevada 330400-01-05 Accelerometer Acceleration Transducers

Brand	Bently Nevada
Module Number	330400-01-05
Price	$600
Weight	0.2kg
Country Of Origin	USA
Certificate	Certificate: C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 330400-01-05 Key parameters

Input Voltage: 24+ 0.5 Vdc.

Bias Current: 2 mA nominal.

Output Bias Voltage:-8.5 + 0.5 Vdc.

Sensitivity: 10.2 mv/m/s2 (100 mv/g)+5%.

Acceleration range: 490 m/s² (50 g) peak overall acceleration within the 10 Hz to15 kHz frequency span.Vibration at frequencies above15 kHz,especially at the transducers resonance will significantly decrease this range.

Amplitude Linearity: +1% to 490 m/s² (50 g) peak.

Broadband Noise Floor(10 Hz to 15kHz): 0.039 m/s² (0.004 g) rms.

Temperature Sensitivity: -11% to +3% typical over the operating temperature range.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 330400-01-05 Core Features

High-Temperature Industrial Applications

With a -55°C to +121°C operating range and 316L stainless steel casing, this sensor monitors steel mill rollers or cement kiln drives. Its IP68-rated hermetic seal withstands dust and moisture. Integrated with Bently Nevada 3300 XL proximity probes (e.g., 330101-00-25-10-01), it provides complementary shaft and casing data for holistic machinery health analysis .

Electrical Integration & Signal Conditioning

The Bently Nevada 330400-01-05 requires -24 Vdc input and supports 305-meter cable runs. For long-distance signal integrity, it pairs with Bently Nevada 17025/00-01-00-00 signal conditioners. In hydroelectric plants, this setup detects bearing defects by correlating acceleration trends with velocity data from Bently Nevada 330500 Velomitor sensors .

BN 330400-01-05
