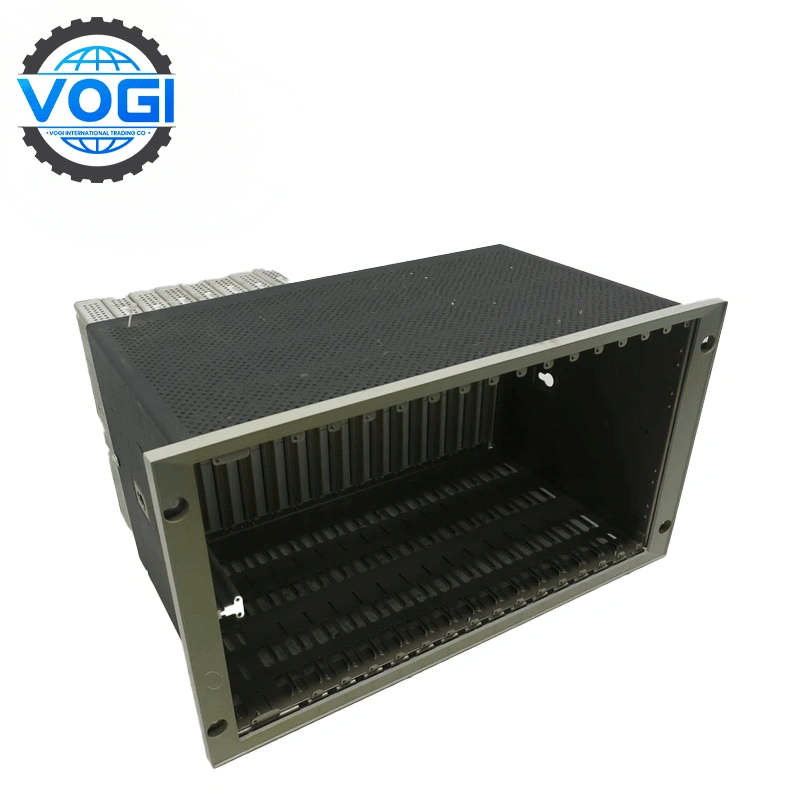

Bently Nevada 3500/05 Key parameters
Physical Design & Mounting Options
Available in two configurations:
Full-size (19-inch EIA standard, 14 module slots)
Mini-rack (12-inch, 7 module slots)
Supports three mounting styles:
Panel-mount (rear access via clamps for panel cutouts)
Rack-mount (19-inch EIA rails, rear access)
Bulkhead-mount (front access for restricted spaces; incompatible with Mini-rack)
Power & Module Configuration
Dedicated left slots for power supplies and rack interface modules. Remaining slots accommodate monitoring, relay, or communication modules .
Requires 3500/04-01 Internal Barrier Earthing Module for installations with internal barriers (mandatory for hazardous-area compliance) .
Compliance & Certifications
Hazardous area approvals: ATEX/IECEx (Zone 2), CSA/NRTL/C (Class I, Div. 2), and DNV GL for marine environments .
Meets EMC standards (EN 61000-6-2/4) and safety directives (EN 61010-1) for industrial use. CE-certified for European markets .
Environmental Resilience
Operating range: -20°C to +65°C (-4°F to +149°F) .
Compatible with 3500/06 Weatherproof Housing for outdoor/harsh environments (excludes bulkhead-mount configurations) .
Supports live module replacement without system shutdown for maintenance flexibility .
