Bently Nevada 3500/25 Enhanced Keyphasor Module

Brand	Bently Nevada
Module Number	3500/25
Module Number	149369-01
Price	$400
Weight	0.6kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	8

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 3500/25 Key parameters

Signal Input & Conditioning

Dual Input Range: Supports proximity probes (non-isolated: +0.8 V to -21.0 V) and magnetic pickups (isolated: +5 V to -11 V), with internal clamping for overvoltage protection.

Frequency Range: Processes inputs from 1–1,200,000 cpm (0.017 Hz–20 kHz), including multi-event-per-revolution signals.

Threshold Adjustments:

Auto-threshold: Triggers at ≥2 V peak-to-peak (≥120 RPM).

Manual threshold: Configurable from 0 to -20 V DC (≥500 mV peak-to-peak).

Hysteresis Control: User-selectable between 0.2–2.5 V to suppress signal noise.

Power & Output Specifications

Power Consumption: 3.2 W (typical) during operation.

Output Signals:

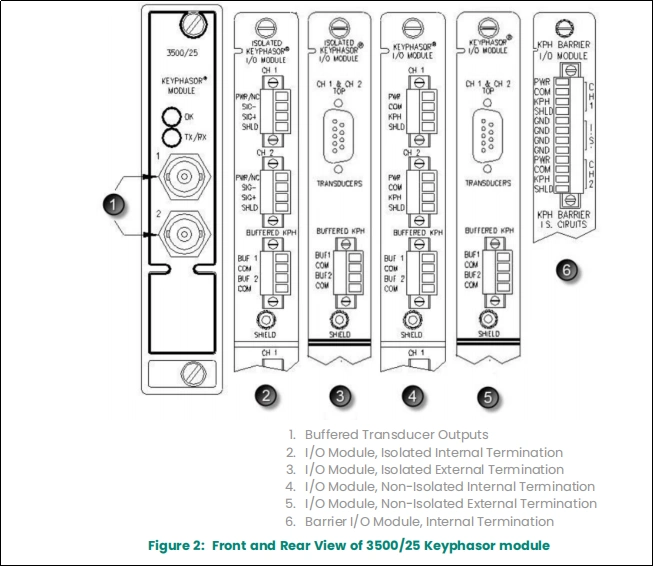

Keyphasor Buffered Outputs: 4 channels (2 front-panel coaxial, 2 rear Euro connectors) with ≤Ω504 impedance.

Transducer Power Supply: Delivers -24 V DC (40 mA per channel) for active probes.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 3500/25 Core Features

Advanced Signal Conditioning

Processes inputs from proximity probes (non-isolated: +0.8 V to -21.0 V) and magnetic pickups (isolated: +5 V to -11 V), with internal voltage clamping to protect against surges.

Captures multi-event-per-revolution signals (up to 20 kHz) for precise shaft speed or gear tooth timing analysis.

Adjustable trigger settings: auto-threshold (≥2 V peak-to-peak) or manual threshold (configurable down to 500 mV), paired with 0.2–2.5 V hysteresis to suppress erratic signal noise.

Redundancy & Scalability

Supports Triple Modular Redundancy (TMR) via dual-module parallel operation, delivering primary/secondary signals for critical machinery protection.

Allows paired configurations (up to 8 input channels) using four modules, combining primary/backup channels for high-availability systems.
