Model Selection
Electric Driven TK-3e
177313-AA-BB-CC | |||
AA: Scale Units | |||
01 | English | 02 | Metric |
BB: Power Cord Type | |||
01 | American | 02 | European |
03 | Brazilian |
|
|
CC: Agency Approval Option | |||
00 | None |
| |

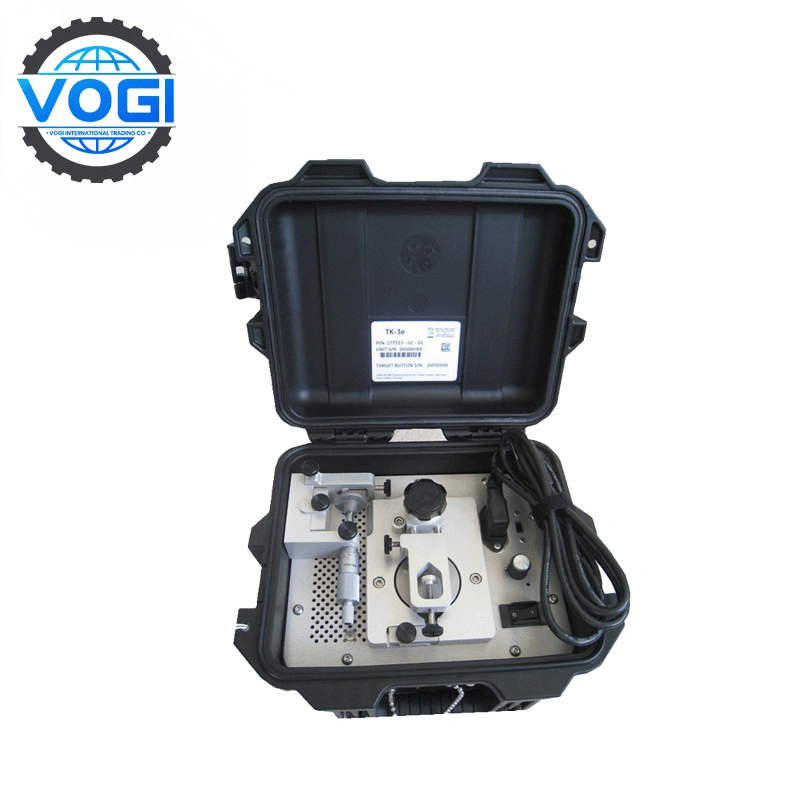

Bently Nevada TK-3E 177313-02-01 Core Function
Dual-Function Calibration for Vibration & Position Systems
The Bently Nevada TK-3E 177313-02-01 simulates shaft vibration (50–254 μm peak-to-peak) and axial position shifts (0–25.4 mm range) to calibrate Bently Nevada monitoring systems. It validates transducer integrity and monitor accuracy without requiring an oscilloscope—critical for field reliability .

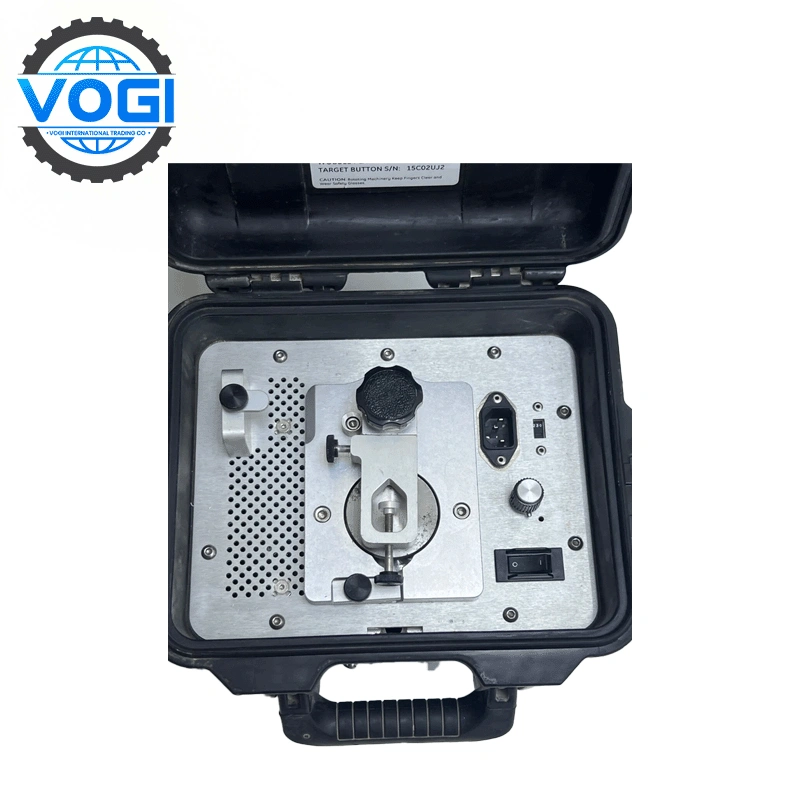

Modular Design with Universal Probe Mount
Spindle Micrometer Assembly: Features a magnetic base and adjustable mount compatible with 5–19 mm probe diameters (e.g., 3300 XL series). Enables precise gap-voltage checks via calibrated micrometer increments .
Motor-Driven Wobble Plate: Generates controlled vibration for monitor calibration. A swing-arm assembly secures probes during testing .
