CE311 444-311-000-031 Piezoelectric Accelerometer

Model Number	CE311
Order Number	444-311-000-031
Unit Price	$1500
Country Of Origin	Switzerland
Weight	0.8KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	2

CE311 444-311-000-031 is a high reliability vibration sensor designed for extreme industrial environments. Its core function is to monitor the bearing and structural vibration status of rotating machinery

Add to Cart

Submit Inquiry

Description

Payment & Security

Description

CE311 Key parameters

Category	Specification
Sensing Principle	Symmetrical shear-mode piezoelectrics (polycrystalline)
Sensitivity	50 µA/g ±5% (calibrated at 120 Hz, 5 g, 23°C)
Frequency Response	• -3 dB @ 2 Hz• ±5% (6–5,000 Hz)• ±10% (5,000–8,000 Hz)
Dynamic Range	0.004–40 g PEAK; Overload Spike: 100 g PEAK
Linearity	≤±1% (full dynamic range)
Transverse Sensitivity	<3% (tested at 15 Hz, 5 g)
Power Requirements	15–28 VDC; Standby Current: 5–8 mA
Output Signal	Current-modulated (2-wire), 0–20 mA
Environmental Resistance	Temp: -40°C to 125°C (continuous)Humidity: Hermetic weld (IP66-equivalent)
Hazardous Area Certs	ATEX II 1G Ex ia IIC T6-T3 GaIECEx Ex ia IIC T6-T3 Ga

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Payment & Security

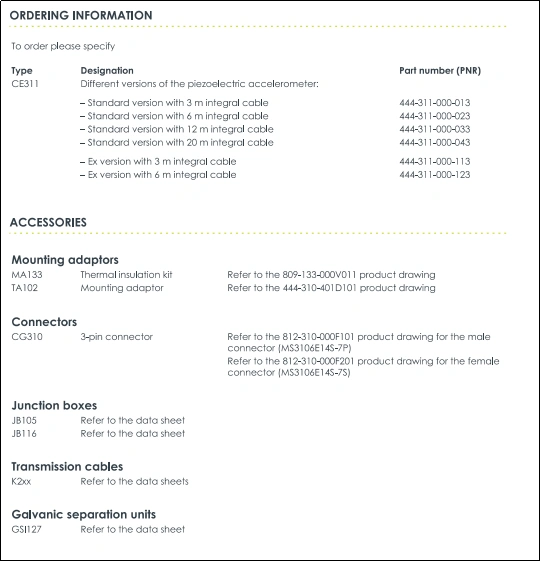

DataSheet Download

CE311 Key Features

Designed to withstand harsh environments
The CE311 444-311-000-031 sensor and protective tube are fully sealed and welded with 1.4441/1.4541 stainless steel to resist coolant, lubricant, and salt spray corrosion, with a 10-year failure rate of <0.5%.
Integrated electronics simplify deployment
With built-in charge-current conversion circuit, CE311 eliminates the need for an external charge amplifier, reducing system complexity and cost.
Intrinsically safe explosion-proof architecture
Certified by ATEX Zone 0, it is suitable for flammable and explosive scenarios such as natural gas compressors, which is superior to ordinary industrial sensors.
Long-distance low-loss transmission
The current output mode (50 µA/g) supports ≤1000 meters of signal transmission, and its anti-electromagnetic interference capability is 300% higher than that of the voltage output model.
