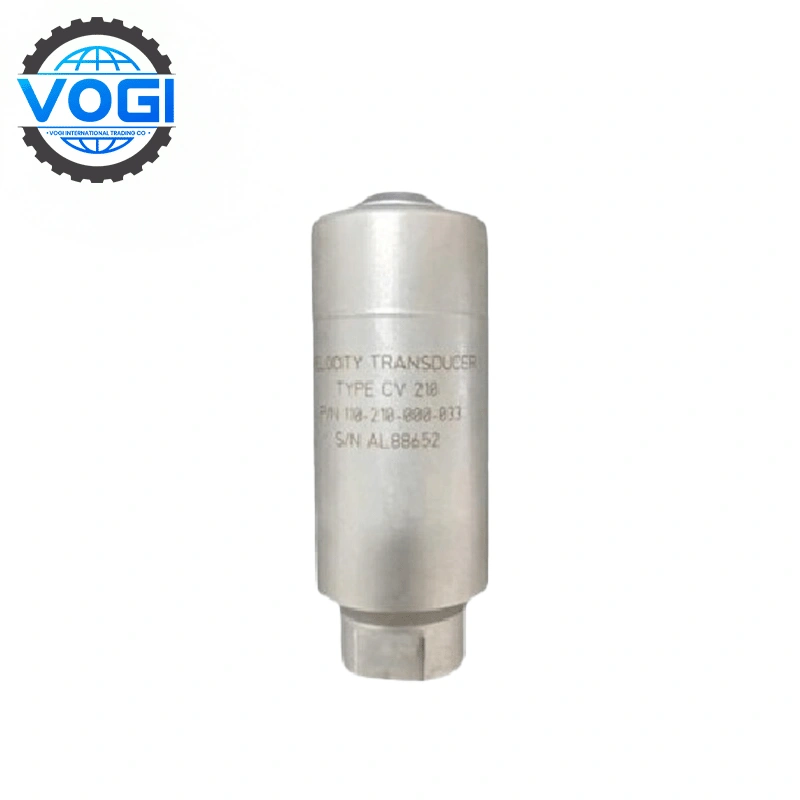

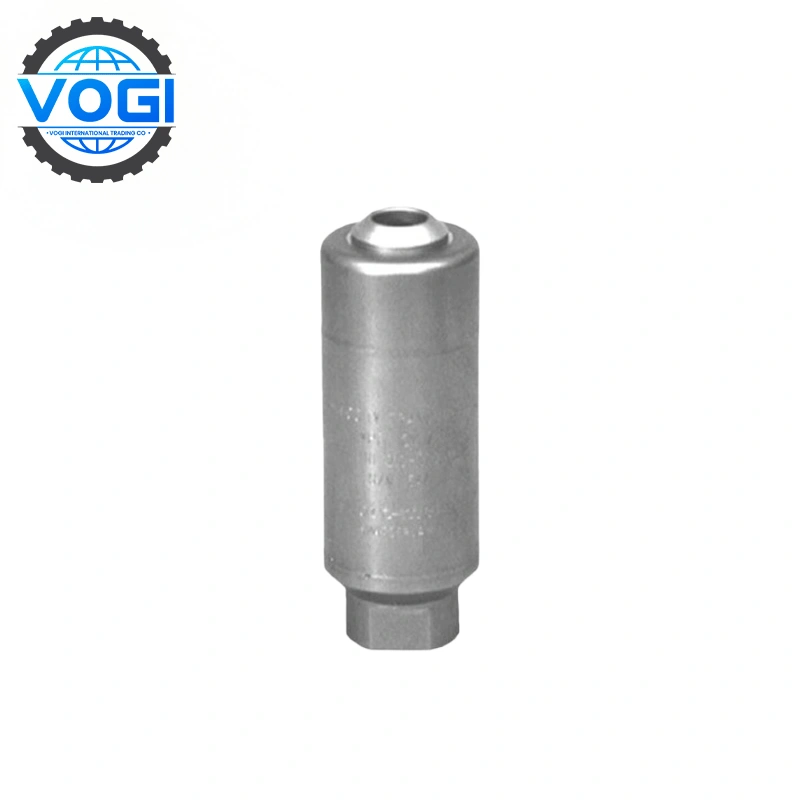

CV210 Application Case
Swiss Alpine Hydropower Station Group
More than 200 CV210s are deployed in Andritz turbine bearing seats to monitor 60–120 RPM low-frequency vibrations, and cooperate with IVC 632 to achieve early warning of blade cracks, with a 10-year false shutdown rate of <0.1%.
Norwegian offshore platform compressor
Equinor uses CV210 110-210-000-033 to monitor LNG reciprocating compressor base vibration (20–40 Hz), IP66 protection to resist salt spray erosion, and a life cycle of 15 years.
Canadian pulp mill centrifugal pump
Catalyst mill uses CV210 in a 95% humidity environment, and the stainless steel shell can withstand acidic medium corrosion, reducing annual maintenance costs by 50%.
CV210 Key Features
Passive power-free design
CV210 generates vibration proportional voltage signals based on the principle of electromagnetic induction, without the need for external power supply, simplifying system wiring and improving explosion-proof safety.
Industrial-grade environmental tolerance
The 316L stainless steel housing + IP66 seal enables CV210 to withstand high humidity, H₂S corrosion and 500g mechanical shock, suitable for harsh working conditions such as hydropower station volutes.
Low-frequency vibration high-precision capture
The 28Hz resonant frequency combined with the low-frequency compensation of the IVC 632 conditioner enables CV210 to have an error of <±3% in the range of 1–20Hz, accurately identifying faults such as turbine runner imbalance.
